GD320 VA (GPB) - Honda Engine, Made in Japan (SN: GPB-1000001 - GPB-1008896) MUFFLER Parts Diagram

Engine, Made in Japan

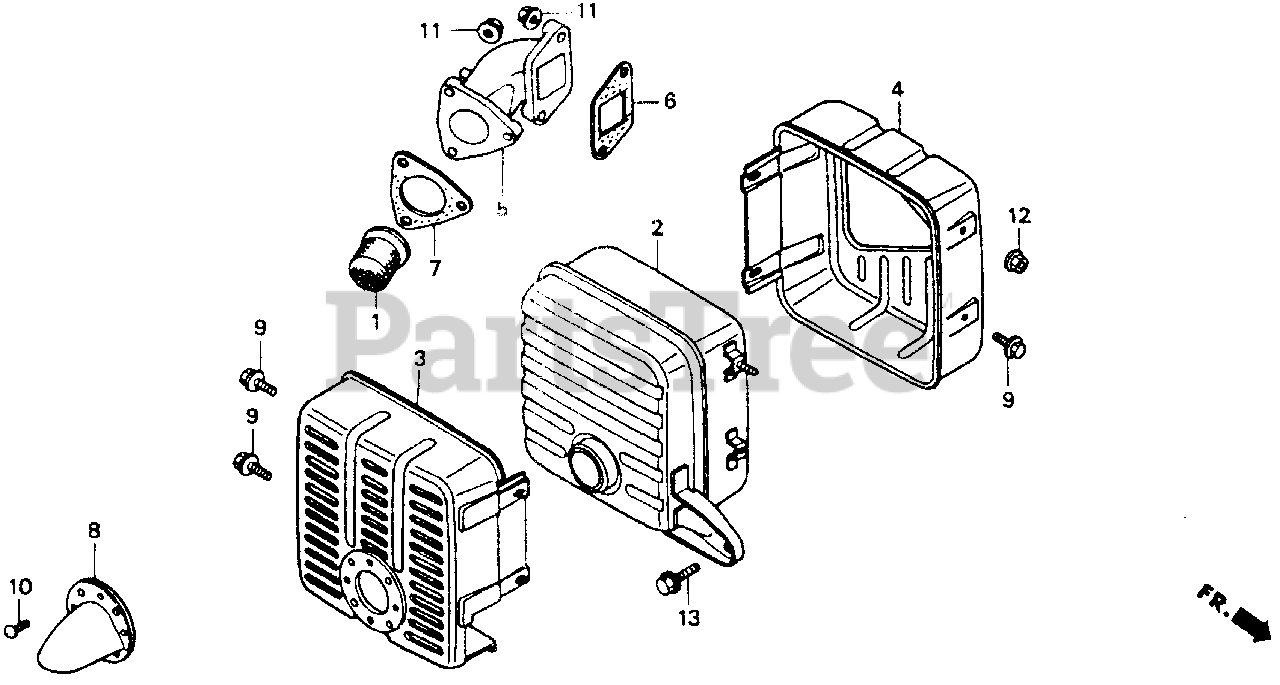

MUFFLER Parts Diagram

  • Title

1

Honda 06180-ZG3-930

ARRESTER KIT, SPARK (Honda Code 3618592).

Note: (Optional).

$

$

Not available

2

Honda 18310-ZG3-003

MUFFLER (Honda Code 3620119).

$334.99

$

Usually ships in 3-6 days

0

3

Honda 18321-ZG3-003

PROTECTOR A, MUFFLER (Honda Code 3620127).

$79.99

$

Usually ships in 3-6 days

0

4

Honda 18325-ZG3-003

PROTECTOR B, MUFFLER (Honda Code 3620135).

$79.99

$

Usually ships in 3-6 days

0

5

Honda 18331-ZG3-000

PIPE, EX. (Honda Code 3620143).

$170.99

$

Usually ships in 3-6 days

0

6

Honda 18333-ZG3-800

SEE PART DETAILS - PRI; GASKET, EX. PIPE (NON-ASBESTOS) (Honda Code 4310801).

$10.99

$

Usually ships in 3-6 days

0

7

Honda 18381-ZG3-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (NON-ASBESTOS) (Honda Code 4310819).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 18431-ZG3-800

DEFLECTOR, MUFFLER (Honda Code 3756244).

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

9

Honda 90002-ZG3-000

BOLT, FLANGE (5X8) (Honda Code 3620606).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 93500-05008-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X8) (Honda Code 0145540).

Note: (Optional).

$1.49

$

In Stock, only 3 left!

0

11

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

12

Honda 94050-08020

NUT, FLANGE (8MM) (Honda Code 2255909).

$2.99

$

Usually ships in 3-6 days

0

13

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2552552).

$2.99

$

In Stock, only 3 left!

0
