GD410 PA (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-1021879) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

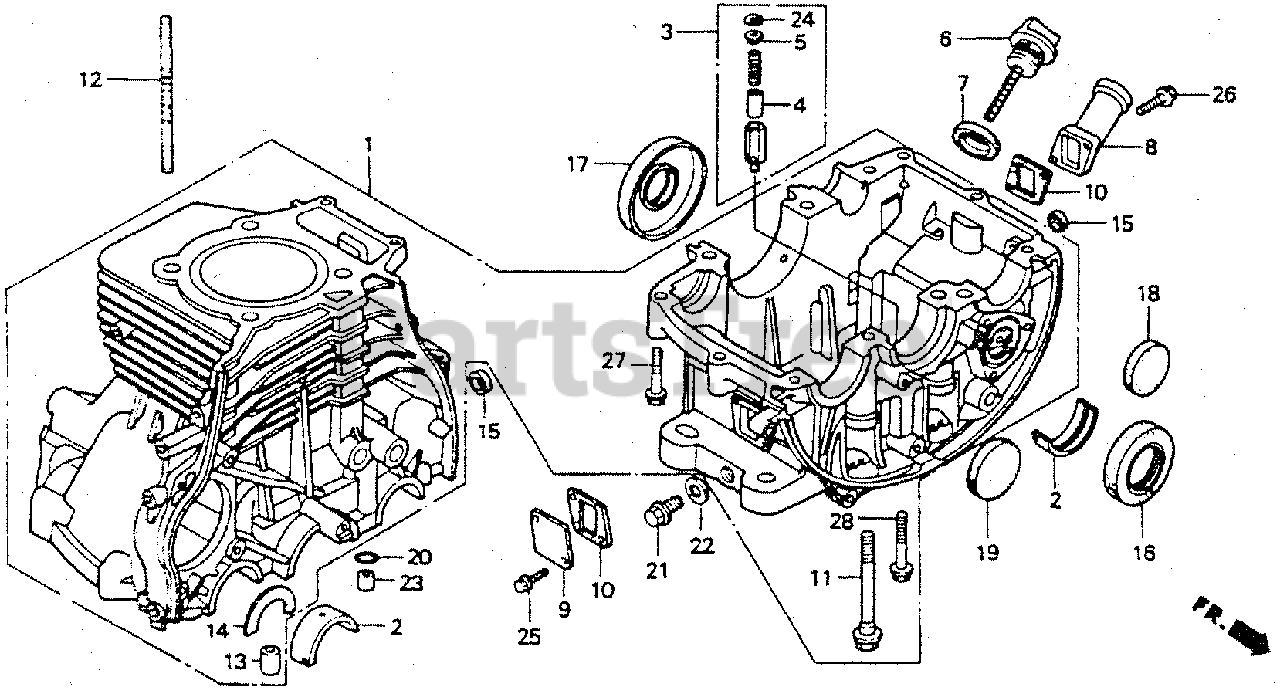

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-ZG3-650

CYLINDER ASSY. (P-TYPE) (Honda Code 3624780).

$

$

Not available

2

Honda 13321-ZG3-003

BEARING A, MAIN (BLUE) (Honda Code 3625183).

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

2

Honda 13322-ZG3-003

BEARING B, MAIN (BLACK) (Honda Code 3625191).

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

2

Honda 13323-ZG3-003

BEARING C, MAIN (BROWN) (Honda Code 3625209).

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

2

Honda 13324-ZG3-003

BEARING D, MAIN (GREEN) (Honda Code 3625217).

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

2

Honda 13325-ZG3-003

BEARING E, MAIN (YELLOW) (Honda Code 3625225).

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

2

Honda 13326-ZG3-003

BEARING F, MAIN (PINK) (Honda Code 3625233).

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

2

Honda 13327-ZG3-003

BEARING G, MAIN (RED) (Honda Code 3625241).

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

2

Honda 13332-ZG3-000

BEARING A, MAIN (US 0.25) (BLACK) (Honda Code 3625266).

Note: (Optional).

$21.99

$

Usually ships in 3-6 days

0

2

Honda 13333-ZG3-000

BEARING B, MAIN (US 0.25) (BROWN) (Honda Code 3625274).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 13334-ZG3-000

BEARING C, MAIN (US 0.25) (GREEN) (Honda Code 3625282).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 13336-ZG3-000

BEARING A, MAIN (US 0.25) (BLACK) (Honda Code 3625290).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 13337-ZG3-000

BEARING B, MAIN (US 0.25) (BROWN) (Honda Code 3625308).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 13338-ZG3-000

BEARING C, MAIN (US 0.25) (GREEN) (Honda Code 3625316).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 13342-ZG3-000

BEARING A, MAIN (US 0.75) (BLACK) (Honda Code 3625324).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 13343-ZG3-000

BEARING B, MAIN (US 0.75) (BROWN) (Honda Code 3625332).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 13344-ZG3-000

BEARING C, MAIN (US 0.75) (GREEN) (Honda Code 3625340).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

3

Honda 15220-413-020

VALVE ASSY., RELIEF (NOT AVAILABLE) (Honda Code 0802207).

$

$

Not available

4

Honda 15231-413-020

VALVE, RELIEF (Honda Code 0690453).

$26.99

$

Usually ships in 3-6 days

0

5

Honda 15233-413-000

SEAT, RELIEF VALVE (Honda Code 0690461).

$

$

Not available

6

Honda 15620-ZG3-000

CAP, OIL FILLER (Honda Code 3619418).

$10.99

$

Usually ships in 3-6 days

0

7

Honda 15625-ZE8-000

GASKET, OIL FILLER CAP (Honda Code 2089969).

$4.99

$

In Stock, Qty 6

0

8

Honda 15631-ZG3-000

EXTENSION, OIL FILLER (Honda Code 3619426).

$43.99

$

Usually ships in 3-6 days

0

9

Honda 15634-ZG3-000

PLATE, EXTENSION (Honda Code 3619434).

$15.99

$

Usually ships in 3-6 days

0

10

Honda 15635-ZG3-800

SEE PART DETAILS - PRI; GASKET, EXTENSION OIL FILLER (NON-ASBESTOS) (Honda Code 4667556).

$2.49

$

In Stock, Qty 5

0

11

Honda 90005-ZG3-003

BOLT-WASHER (11X115) (Honda Code 3620614).

$9.99

$

Usually ships in 3-6 days

0

12

Honda 90020-ZG3-003

BOLT, STUD (10X103.5) (Honda Code 3620689).

$12.99

$

Usually ships in 3-6 days

0

13

Honda 90715-PC6-000

PIN, DOWEL (13X20) (Honda Code 1477652).

$7.49

$

Usually ships in 3-6 days

0

14

Honda 91003-ZG3-000

SET-RING (90) (Honda Code 3626165).

$13.99

$

Usually ships in 3-6 days

0

15

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$4.99

$

In Stock, only 3 left!

0

16

Honda 91201-ZG3-003

OIL SEAL (40X67X10) (Honda Code 3626199).

$15.99

$

Usually ships in 3-6 days

0

17

Honda 91202-ZG3-003

OIL SEAL (36X90X9) (Honda Code 3626207).

$18.99

$

Usually ships in 3-6 days

0

18

Honda 91204-ZG3-003

PLUG, SEAL (47MM) (Honda Code 3621117).

$10.99

$

Usually ships in 3-6 days

0

19

Honda 91205-ZG3-000

PLUG, SEALING (52MM) (Honda Code 3626215).

$12.99

$

Usually ships in 3-6 days

0

20

Honda 91301-PM5-A01

SEE PART DETAILS - PRI; O-RING (9.8X1.9) (Honda Code 2710820).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 92800-14000

BOLT, DRAIN PLUG (14MM) (Honda Code 0171777).

$5.49

$

Usually ships in 3-6 days

0

22

Honda 94109-14000

WASHER, DRAIN PLUG (14MM) (Honda Code 0171876).

$0.99

$

In Stock, Qty 20+

0

23

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$2.99

$

In Stock, only 3 left!

0

24

Honda 94520-12000

CIRCLIP (INNER) (12MM) (Honda Code 1768894).

$0.99

$

Usually ships in 3-6 days

0

25

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2410892).

$1.99

$

In Stock, Qty 20+

0

26

Honda 95701-06022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2105823).

$2.49

$

In Stock, Qty 5

0

27

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2298404).

$1.49

$

In Stock, Qty 6

0

28

Honda 95701-08050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50) (Honda Code 2935740).

$2.99

$

In Stock, Qty 6

0
