GD410 PA (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-1021879) CYLINDER HEAD Parts Diagram

Engine, Made in Japan

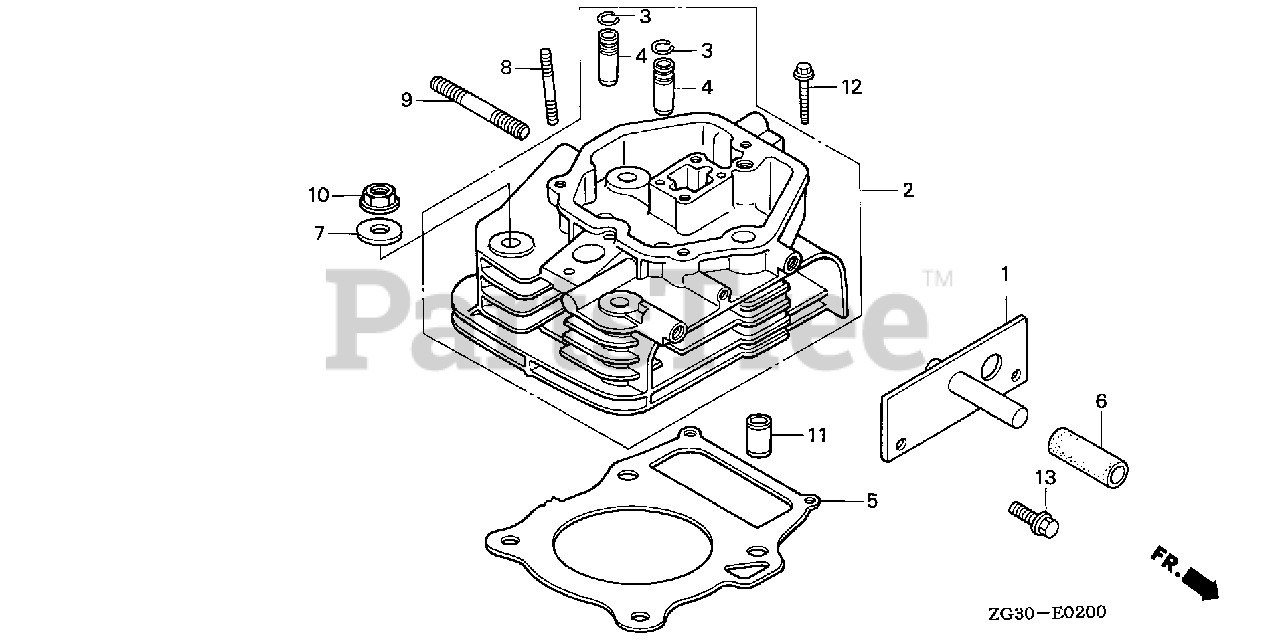

CYLINDER HEAD Parts Diagram

  • Title

2

Honda 12200-ZG3-010

CYLINDER HEAD

$456.99

$

Usually ships in 3-6 days

0

3

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.49

$

In Stock, Qty 5

0

4

Honda 12218-ZG3-003

GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

5

Honda 12251-ZG3-000

GASKET, CYLINDER HEAD (1.1) (A)

$59.99

$

Usually ships in 3-6 days

0

5

Honda 12252-ZG3-000

GASKET, CYLINDER HEAD (1.2) (B)

$73.99

$

Usually ships in 3-6 days

0

5

Honda 12253-ZG3-000

GASKET, CYLINDER HEAD (1.3) (C)

$73.99

$

Usually ships in 3-6 days

0

5

Honda 12254-ZG3-000

GASKET, CYLINDER HEAD (1.4) (D) (NOT AVAILABLE)

Note: (Optional). Use up to Engine SN 1000470.

$

$

Currently unavailable

7

Honda 90404-ZG3-000

WASHER (10MM)

$4.99

$

Usually ships in 3-6 days

0

8

Honda 92900-06032-3B

BOLT, STUD (6X32)

$1.99

$

Usually ships in 3-6 days

0

9

Honda 92900-08028-0B

BOLT, STUD (8X28)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

11

Honda 94301-12200

PIN, DOWEL (12X20)

$2.99

$

In Stock, only 3 left!

0

12

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0
