GD410 QAAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-1021879) RECOIL STARTER (1) Parts Diagram

Engine, Made in Japan

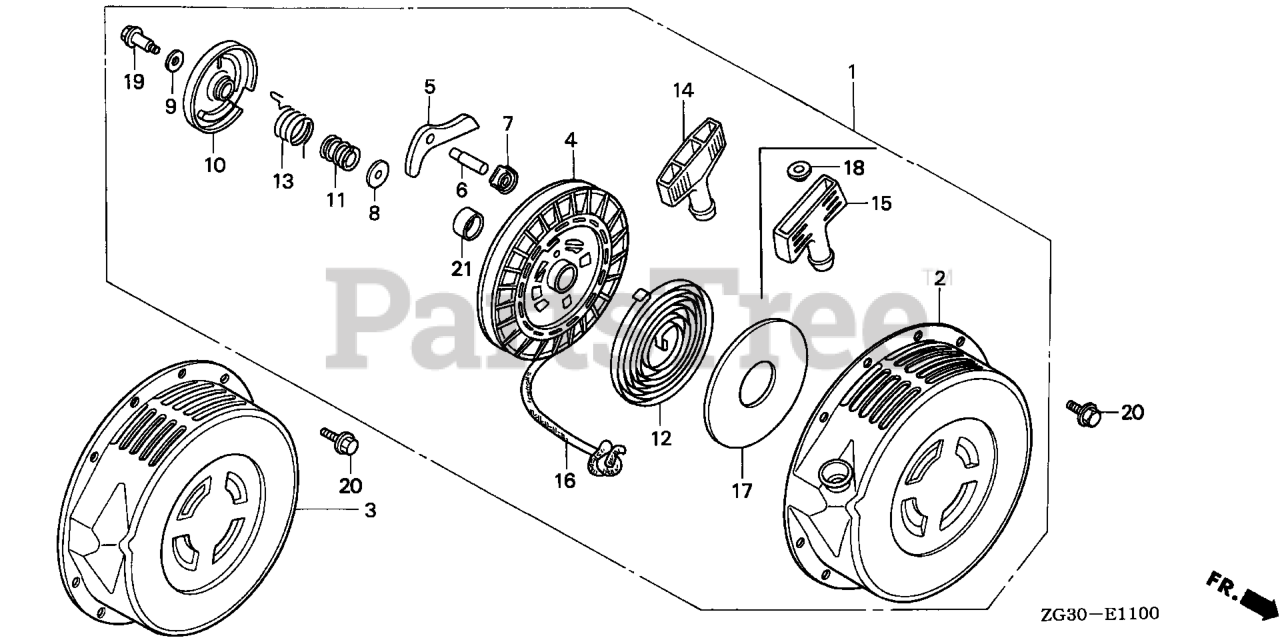

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZG3-014ZA

STARTER ASSY., RECOIL *NH116M* (URBAN SILVER METALLIC)

$115.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZG3-004

SEE PART DETAILS - PRI; CASE, STARTER (Honda Code 4604104).

$226.99

$

Usually ships in 3-6 days

0

4

Honda 28420-ZE8-812

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 4594271).

$67.99

$

Usually ships in 3-6 days

0

5

Honda 28422-ZG3-004

SEE PART DETAILS - PRI; RATCHET, STARTER (Honda Code 4594289).

$19.99

$

Usually ships in 3-6 days

0

6

Honda 28423-ZG3-004

SEE PART DETAILS - PRI; SHAFT, RATCHET (Honda Code 4594297).

$13.99

$

Usually ships in 3-6 days

0

7

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE (Honda Code 4590527).

$5.99

$

Usually ships in 3-6 days

0

8

Honda 28431-ZG3-004

SEE PART DETAILS - PRI; PLATE A, FRICTION (Honda Code 4594305).

$9.99

$

Usually ships in 3-6 days

0

9

Honda 28432-ZG0-003

SEE PART DETAILS - PRI; PLATE B, FRICTION (Honda Code 1795459).
(Superseded to 28432-883-T20)

Note: Use up to Engine SN 1000113.

$3.49

$

In Stock, only 2 left!

0

9

Honda 28432-883-T20

SEE PART DETAILS - PRI; PLATE B, FRICTION

Note: Use from Engine SN 1000114.

$3.49

$

In Stock, only 2 left!

0

10

Honda 28434-ZE8-812

SEE PART DETAILS - PRI; COVER, REEL STARTER (Honda Code 4581468).

$12.99

$

Usually ships in 3-6 days

0

11

Honda 28441-ZG3-004

SEE PART DETAILS - PRI; SPRING, FRICTION (Honda Code 4594321).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN (Honda Code 4617403).

$25.99

$

Usually ships in 3-6 days

0

13

Honda 28449-ZG3-004

SEE PART DETAILS - PRI; SPRING, TORSION (Honda Code 4594347).

$6.99

$

Usually ships in 3-6 days

0

14

Honda 28461-889-631

SEE PART DETAILS - PRI; GRIP, STARTER (Honda Code 1956606).

Note: Use up to Engine SN 1000113.

$12.99

$

In Stock, Qty 13

0

15

Honda 28461-ZG3-004

SEE PART DETAILS - SUP; GRIP, STARTER

Note: Use from Engine SN 1000114.

$11.99

$

Usually ships in 3-6 days

0

16

Honda 28462-ZG3-003

SEE PART DETAILS - SUP; ROPE, STARTER (#6X64") (Honda Code 3620291).

Note: Use up to Engine SN 1000113.

$

$

Currently unavailable

16

Honda 28462-ZG3-004

ROPE, STARTER

Note: Use from Engine SN 1000114.

$28.99

$

Usually ships in 3-6 days

0

18

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT (Honda Code 3678976).

Note: Use from Engine SN 1000114.

$7.99

$

In Stock, only 1 left!

0

19

Honda 90003-ZG0-003

BOLT, REEL COVER (Honda Code 1795715).

Note: Use up to Engine SN 1000113.

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90003-ZG3-004

BOLT (6MM)

Note: Use from Engine SN 1000114.

$5.99

$

Usually ships in 3-6 days

0

20

Honda 90011-ZG0-000

BOLT, FLANGE (6X8) (Honda Code 1795723).
(Superseded to 95701-06008-00)

$4.99

$

In Stock, Qty 20+

0

21

Honda 91501-ZG3-004

SEE PART DETAILS - PRI; COLLAR

$4.49

$

Usually ships in 3-6 days

0
