GD410 QAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-9999999) OIL PUMP Parts Diagram

Engine, Made in Japan

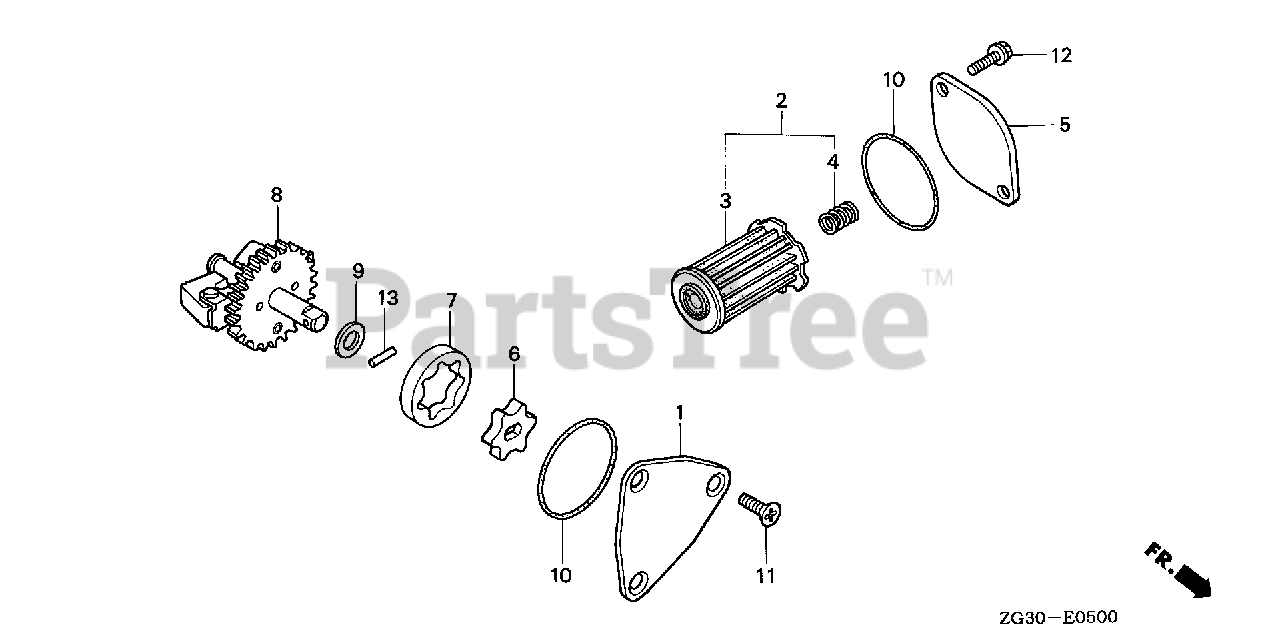

OIL PUMP Parts Diagram

  • Title

1

Honda 15121-ZG3-000

COVER, OIL PUMP

$17.99

$

Usually ships in 3-6 days

0

2

Honda 15220-ZG3-000

STRAINER, OIL

Note: Use from Engine SN 1013492.

$80.99

$

Usually ships in 3-6 days

0

3

Honda 15221-ZG3-000

STRAINER, OIL (NOT AVAILABLE)

Note: Use up to Engine SN 1013491.

$

$

Not available

4

Honda 15223-ZG3-000

SPRING, OIL STRAINER

Note: Use up to Engine SN 1013491.

$

$

Not available

4

Honda 15223-ZG3-300

SPRING, OIL STRAINER

Note: Use from Engine SN 1013492.

$3.49

$

Usually ships in 3-6 days

0

5

Honda 15224-ZG3-000

COVER, OIL STRAINER

$10.99

$

Usually ships in 3-6 days

0

6

Honda 15331-ZG3-013

ROTOR, OIL PUMP (INNER)

$25.99

$

Usually ships in 3-6 days

0

7

Honda 15341-ZG3-003

ROTOR, OIL PUMP (OUTER)

$29.99

$

Usually ships in 3-6 days

0

8

Honda 16510-ZG3-010

WEIGHT, GOVERNOR

$167.99

$

Usually ships in 3-6 days

0

9

Honda 90443-ZG3-000

WASHER (15.5MM)

$3.49

$

Usually ships in 3-6 days

0

10

Honda 91301-ZG3-000

O-RING (42.2X2.4)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90011-ZG3-000

SCREW, FLAT (6X16)

Note: Use from Engine SN 1000113.

$2.49

$

Usually ships in 3-6 days

0

11

Honda 93600-06016-0A

SCREW, FLAT (6X16)

Note: Use up to Engine SN 1000112.

$1.49

$

Usually ships in 3-6 days

0

12

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0

13

Honda 96220-30134

ROLLER (3X13.4)

$0.99

$

Usually ships in 3-6 days

0
