GD410 QAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-9999999) STARTER MOTOR (1) Parts Diagram

Engine, Made in Japan

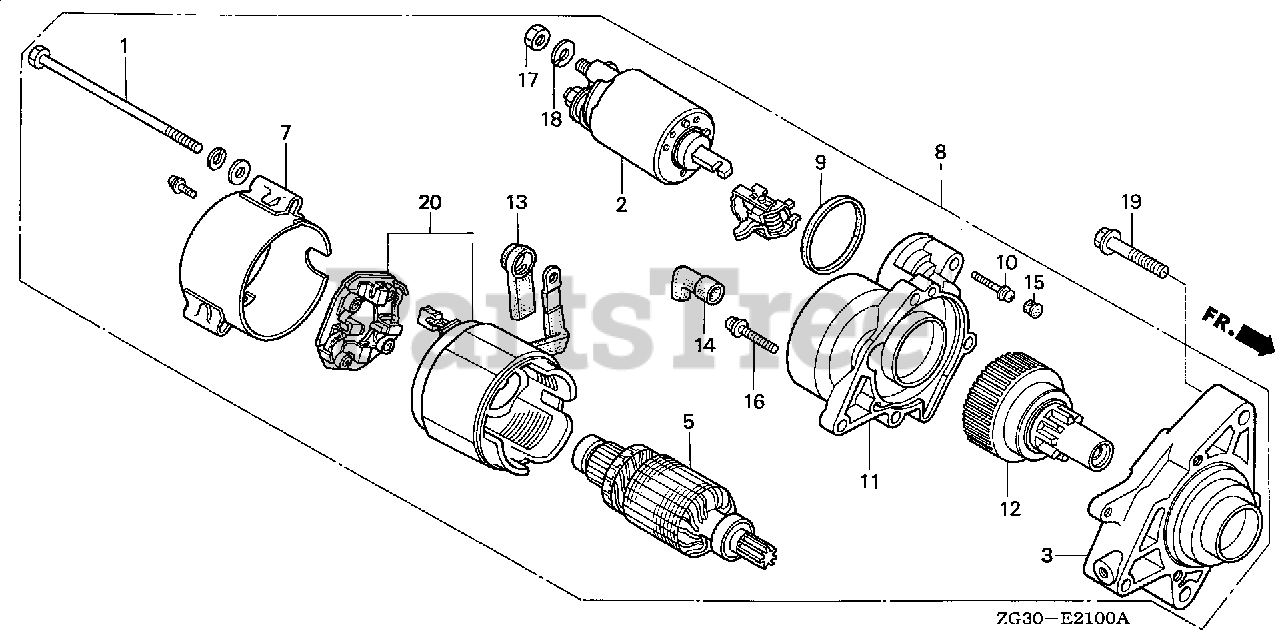

STARTER MOTOR (1) Parts Diagram

  • Title

1

Honda 31202-PC2-681

BOLT, THROUGH

$

$

Not available

2

Honda 31204-ZG3-801

SWITCH ASSY., MAGNETIC (NOT AVAILABLE)

Note: Use up to Engine SN 1009448.

$

$

Not available

2

Honda 31204-ZG3-802

SWITCH ASSY., MAGNETIC

Note: Use from Engine SN 1009449.

$484.99

$

Usually ships in 3-6 days

0

3

Honda 31205-ZG3-801

COVER, GEAR

$

$

Not available

5

Honda 31207-PH3-953

ARMATURE (N/A: SEE ASSEMBLY)

Note: Use up to Engine SN 1009448.

$

$

Currently unavailable

5

Honda 31207-PH3-954

ARMATURE ASSY. (N/A: SEE ASSEMBLY)

Note: Use from Engine SN 1009449.

$

$

Currently unavailable

7

Honda 31209-PH7-006

BRACKET, RR. UNIT

$

$

Not available

8

Honda 31210-ZG3-804

STARTER MOTOR ASSY.

$1205.99

$

Usually ships in 3-6 days

0

9

Honda 31211-PC2-006

RING, SQUARE (MITSUBA) (NOT AVAILABLE)

$

$

Not available

10

Honda 31217-PC2-006

SCREW-WASHER (4X28) (MITSUBA)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 31229-PH7-006

CASE, FR. (NOT AVAILABLE)

Note: Use up to Engine SN 1003247.

$

$

Currently unavailable

11

Honda 31229-PH7-026

CASE, FR.

Note: Use from Engine SN 1003248.

$

$

Not available

12

Honda 31230-ZG3-801

GEAR ASSY. (NOT AVAILABLE)

$

$

Not available

13

Honda 31235-PD2-016

COVER, TERMINAL (MITSUBA)

$

$

Currently unavailable

14

Honda 31251-PD2-016

TUBE, LABYRINTH (NOT AVAILABLE)

Note: Use up to Engine SN 1001681.

$

$

Currently unavailable

14

Honda 31251-PD2-026

TUBE, LABYRINTH

Note: Use from Engine SN 1001682.

$

$

Currently unavailable

15

Honda 31252-PD2-006

RUBBER, BUSH (MITSUBA)

$4.49

$

Usually ships in 3-6 days

0

16

Honda 93892-06030-18

SCREW-WASHER (6X30)

$

$

Currently unavailable

17

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94111-08800

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 95701-08040-00

BOLT, FLANGE (8X40)

$1.49

$

In Stock, Qty 8

0

20

Honda 31260-PP8-006

STATOR SET

$

$

Not available
