GE 21 - Poulan Edger (2006-07) Carburetor Parts Diagram

Edger

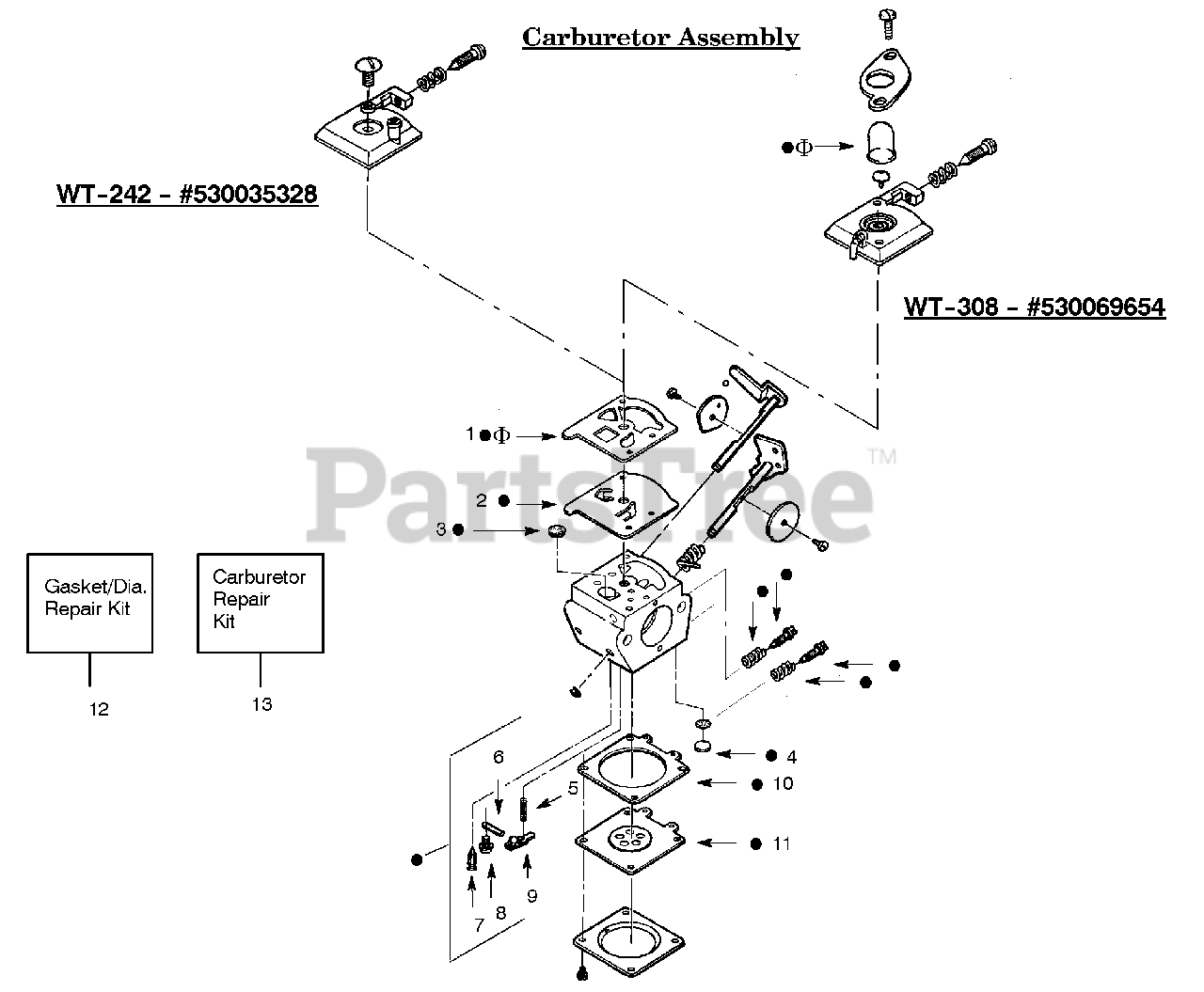

Carburetor Parts Diagram

  • Title

1

Electrolux/AYP 530035164

Pump Gasket
(Superseded to 504130906)

$4.99

$

In Stock, Qty 5

0

2

Electrolux/AYP 530035166

Pump Diaphragm
(Superseded to 504130807)

$6.49

$

In Stock, Qty 11

0

3

Electrolux/AYP 530035178

Fuel Inlet Screen

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530035162

Welch Plug

$

$

Not available

5

Electrolux/AYP 530035139

Metering Lever Spring
(Superseded to 530035188)

$4.99

$

In Stock, Qty 11

0

6

Electrolux/AYP 530035250

Metering Pin
(Superseded to 530035028)

$3.49

$

In Stock, only 3 left!

0

7

Electrolux/AYP 530035106

Inlet Needle Valve
(Superseded to 503117001)

$

$

Not available

8

Electrolux/AYP 530035236

Metering Lever Pin Screw

$2.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530035031

Metering Lever
(Superseded to 505520127)

$

$

Not available

10

Electrolux/AYP 530035320

Metering Diaphragm Gasket

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530035014

Metering Diaphragm
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 530035313

Gasket/Diaphragm Kit
(Superseded to 530069844)

Note: (Incl. 1, 2, 10 & 11)

$18.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530035312

Carburetor Repair Kit WT-242

Note: (Includes 1-12)

$30.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530069658

Carburetor Repair Kit WT-308

$

$

Not available
