GE 25 (UT-26102) - Green Machine Edger Air Filter, Carburetor & Fuel Tank Parts Diagram

Edger

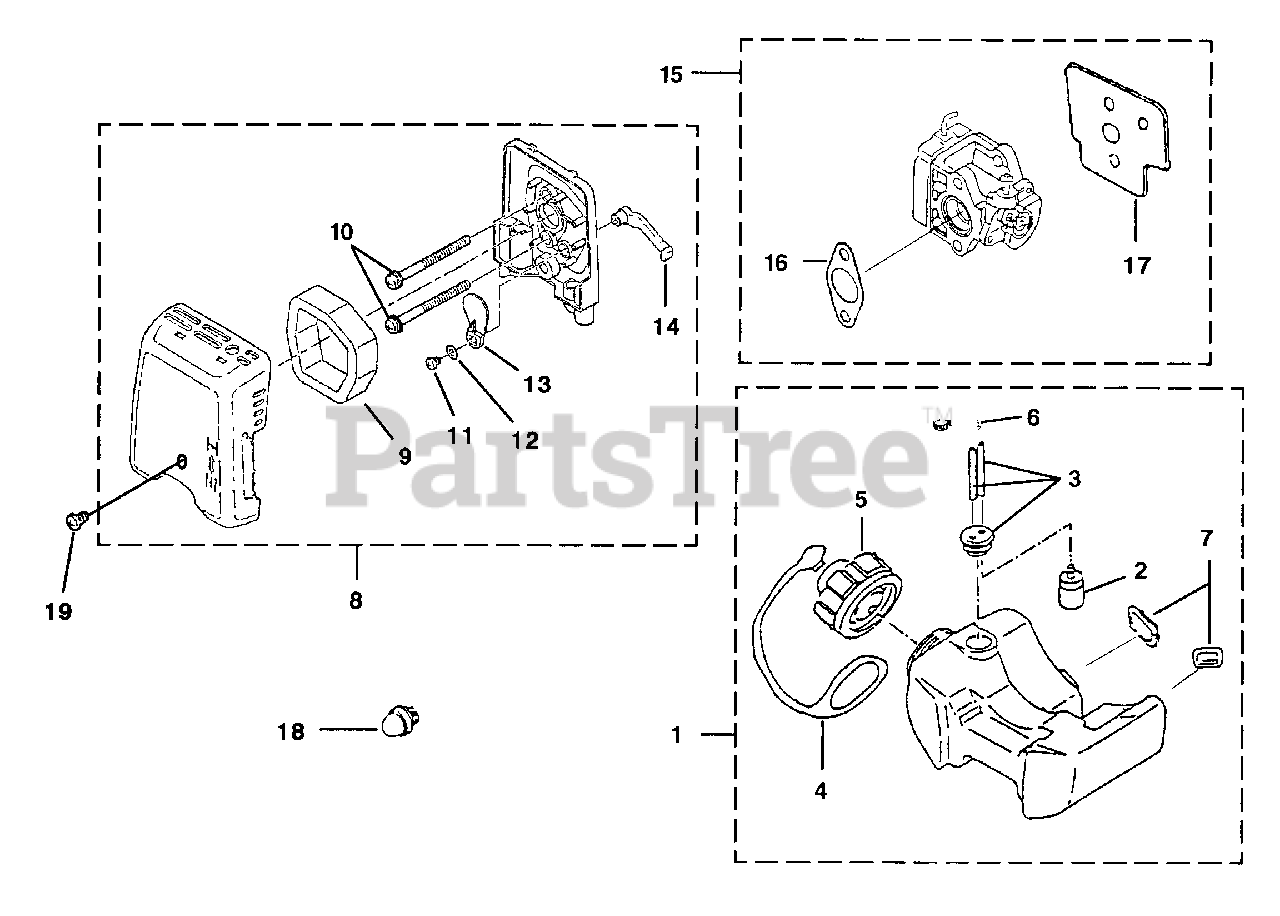

Air Filter, Carburetor & Fuel Tank Parts Diagram

  • Title

1

Homelite UP00873

FUEL TANK ASSEMBLY

$

$

Not available

2

Homelite PS00520

FILTER-Fuel

$

$

Currently unavailable

3

Homelite PS00734

TUBE

$

$

Not available

4

Homelite PS00522

CAP-Retainer
(Superseded to UP02946)

$

$

Not available

5

Homelite UP02946

CAP-Fuel

$

$

Not available

6

Homelite PS00833

CLAMP, Hose

$

$

Not available

7

Homelite UP00481

BUMPER KIT

$

$

Not available

8

Homelite UP00515

AIR FILTER ASSEMBLY

$

$

Not available

9

Homelite UP02947

FILTER, Air

$

$

Not available

10

Homelite PS00703

SCREW (M5 x 62)

Note: Torque Specs 8-12 In/Lbs, .9-1.4 Nm

$1.49

$

Usually ships in 3-7 days

0

11

Homelite PS01663

SCREW, Tapping (M4 x 8)

Note: Torque Specs 17-27 In/Lbs, 1.9-3.1 Nm

$

$

Currently unavailable

12

Homelite PS01363

WASHER

$

$

Not available

13

Homelite PS01362

CHOKE PLATE

$

$

Currently unavailable

14

Homelite PS01361

CHOKE LEVER

$

$

Not available

15

Homelite UP02885

CARBURETOR ASSEMBLY

$

$

Not available

16

Homelite PS00699

GASKET-Carburetor

$

$

Not available

17

Homelite PS00610

INSULATOR-Gasket

$

$

Not available

18

Homelite PS00650

PRIMER BULB
(Superseded to UP04033)

$

$

Not available

19

Homelite PS00785

SCREW (M5 x 14 W SW)

Note: Torque Specs 17-27 In/Lbs, 1.9-3.1 Nm

$

$

Not available
