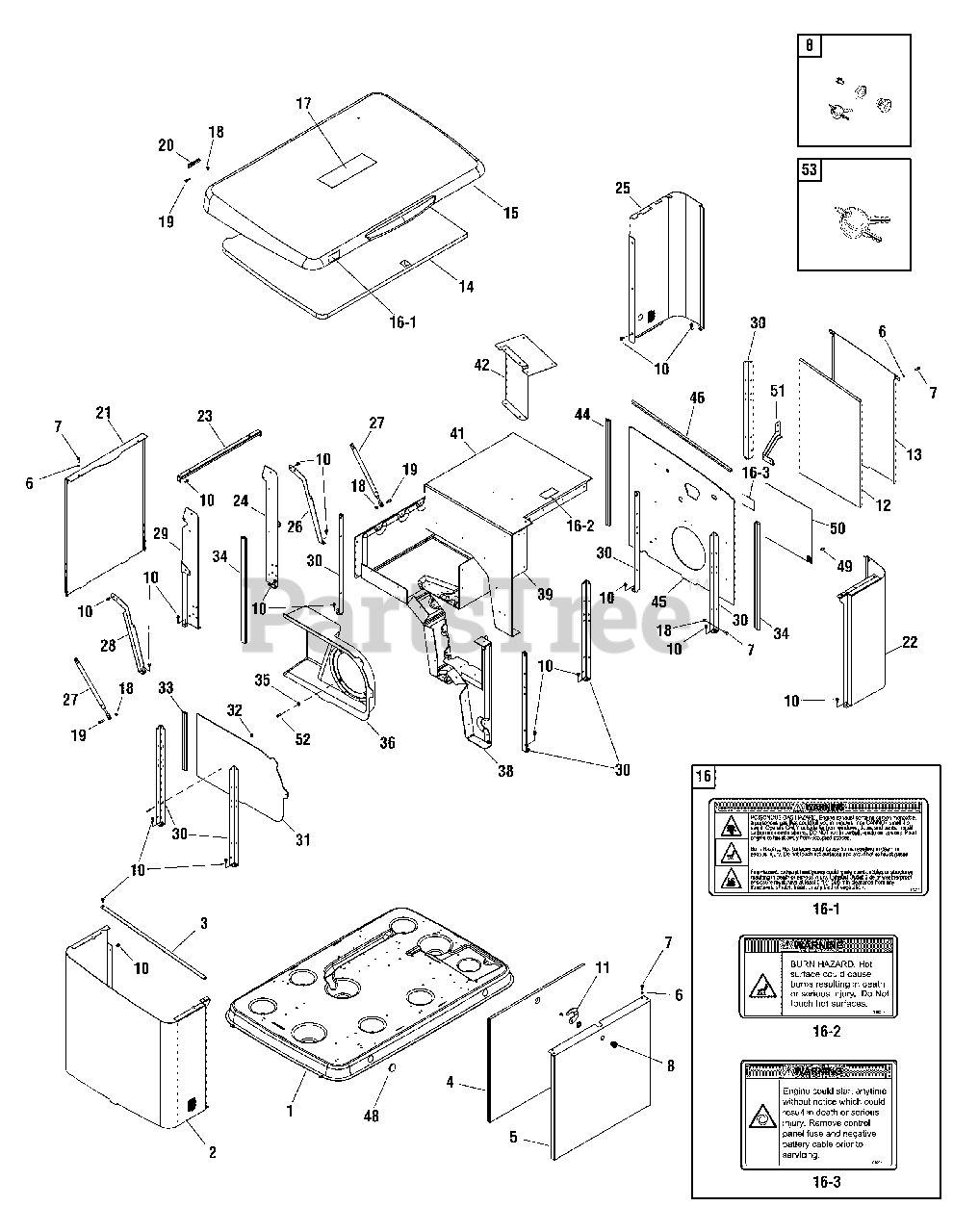

GEN20AD-E (040355-02) - Rheem 20kW Home Standby Generator Enclosure (317625) Parts Diagram

20kW Home Standby Generator

Enclosure (317625) Parts Diagram

  • Title

1

Briggs & Stratton B314636GS

BASE
(Superseded to 706061)

$1043.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton AN314645GS

PANEL, End, Left

$793.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 314638GS

SUPPORT, Rail

$37.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 315447GS

INSULATION

$212.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 318244GS

PANEL, Front

$561.99

$

Usually ships in 2-12 days

0

6

-----

* WASHER, External Lock, M6

$

$

Not available

7

-----

* CAPSCREW, Hex Head, 1/4-20 x 3/4

$

$

Not available

8

Briggs & Stratton 314619GS

LATCH

$22.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

11

Briggs & Stratton 315443GS

LATCH, Arm

$9.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 315453GS

INSULATION

$181.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton AN314694GS

PANEL, End, Right

$396.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 315452GS

INSULATION

$393.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 318233GS

ROOF

$1239.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 318449GS

DECAL SHEET, Warnings

$29.99

$

Usually ships in 2-12 days

0

16-1

-----

DECAL-WARNING, HOT

Note: (Not a serviceable part. Order Ref. No. 16)

$

$

Not available

16-2

-----

DECAL-WARNING BURN HAZARD

Note: (Not a serviceable part. Order Ref. No. 16)

$

$

Not available

16-3

-----

DECAL-WARNING AUTO START

Note: (Not a serviceable part. Order Ref. No. 16)

$

$

Not available

17

Briggs & Stratton 317921GS

DECAL

$4.99

$

Usually ships in 2-12 days

0

18

-----

* NUT, Flange, 1/4-20

$

$

Not available

19

Briggs & Stratton 311644GS

SCREW

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 316954GS

TRIM

$7.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton AN314651GS

PANEL, Back

$256.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton AN314681GS

PANEL, Corner

$305.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 314652GS

SUPPORT, Rail

$91.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 314647GS

BRACKET, Roof Support

$96.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton AN314644GS

PANEL, Corner

$355.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 314646GS

BRACE

$43.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 314649GS

SPRING

$18.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 314672GS

BRACE

$44.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 314679GS

BRACKET, Roof Support

$92.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 314625GS

SUPPORT

$33.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 314684GS

PANEL, Intake, Alternator

$100.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 314661GS

CLIP

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 314682GS

SEAL

$26.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 311692GS

SEAL

$28.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 71693GS

WASHER, Fender

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 314626GS

DUCT, Alternator

$221.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 314624GS

PANEL, Muffler

$114.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 314620GS

PANEL, Muffler, Bottom

$122.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 314621GS

PANEL, Muffler, Top

$137.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 706059

DEFLECTOR, Muffler

$103.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 316951GS

SEAL

$42.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 314683GS

PANEL, Intake, Engine

$221.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 316202GS

TRIM

$18.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 198460GS

PLUG

$3.49

$

In Stock, Qty 13

0

49

Briggs & Stratton 194561GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 316194GS

SCREEN

$30.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 315444GS

SUPPORT

$73.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 704130

SCREW

$3.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 314290GS

KEY, Latch

$17.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 316193GS

PLUG, Roof

Note: (Not Illustrated)

$5.49

$

Usually ships in 2-12 days

0
