GEN30L (040267-0) - Rheem 20kW Home Standby Generator Main Unit (202990) Parts Diagram

20kW Home Standby Generator

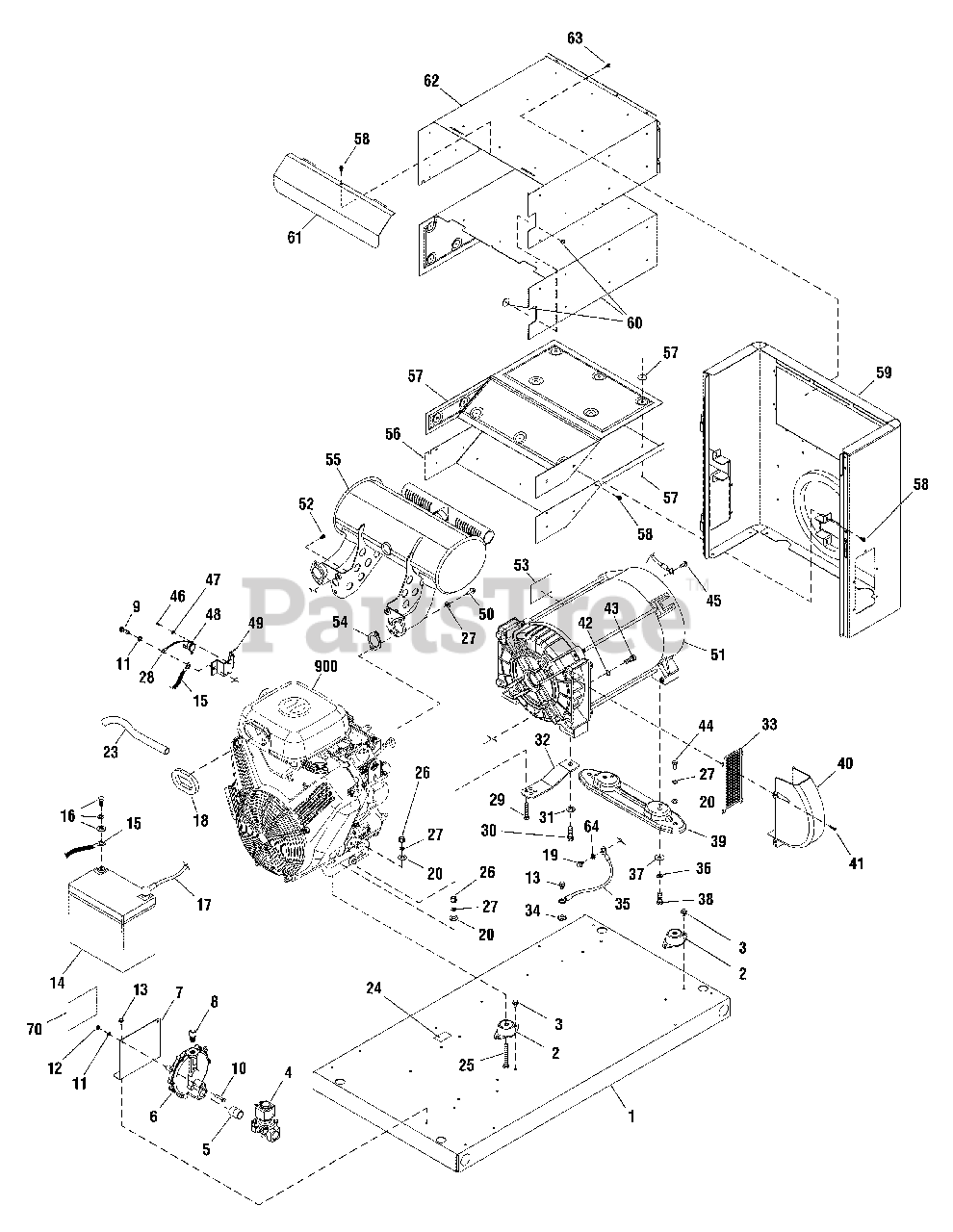

Main Unit (202990) Parts Diagram

  • Title

1

Briggs & Stratton X203030GS

BASE

$403.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 187594GS

MOUNT-VIBRATION

$67.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 24910GS

TAPTITE

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 194683GS

SOLENOID-GAS FUEL

$411.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 194829GS

FITTING

$22.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 194830GS

REGULATOR-NG/LPG

$247.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 195936GS

BRACKET
(Superseded to 313562GS)

$

$

Not available

8

Briggs & Stratton 202382GS

FITTING

$10.99

$

In Stock, only 1 left!

0

9

-----

* CAPSCREW, Hex Head, M6-1.0 x 16

$

$

Not available

10

-----

* CAPSCREW, Hex Head, M6-1.0 x 30

$

$

Not available

11

-----

* WASHER, Lock, 1/4

$

$

Not available

12

-----

* NUT, M6-1.0

$

$

Not available

13

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 194818GS

BATTERY

$

$

Not available

15

Briggs & Stratton 185939UGS

WIRE

$

$

Not available

16

Briggs & Stratton 198913GS

KIT-HARDWARE BATTERY

$

$

Not available

17

Briggs & Stratton 198593DGS

WIRE

$49.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 202958GS

TUBE
(Superseded to 770423)

$29.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton B4995GS

SCREW

$6.99

$

Usually ships in 2-12 days

0

20

-----

* WASHER, Flat, 5/16 (M8)

$

$

Not available

23

Briggs & Stratton 1723165SM

HOSE-OIL DRAIN

$21.99

$

In Stock, Qty 6

0

24

Briggs & Stratton 186649GS

DECAL-OIL DRAIN
(Superseded to 186640GS)

$72.99

$

Usually ships in 2-12 days

0

25

-----

* CAPSCREW, Hex Head, 5/16-18 x 2.5

$

$

Not available

26

-----

* NUT, 5/16-18

$

$

Not available

27

-----

* WASHER, Lock 5/16 (M8)

$

$

Not available

28

Briggs & Stratton 186790CGS

WIRE

$

$

Not available

29

-----

* CAPSCREW, Hex Head, 5/16-18 x 2

$

$

Not available

30

-----

* CAPSCREW, Hex Head, M12-1.75 x 35

$

$

Not available

31

-----

* WASHER, M12

$

$

Not available

32

Briggs & Stratton B194685GS

SUPPORT-ENGINE

$35.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 202922GS

SCREEN

$24.99

$

Usually ships in 2-12 days

0

34

-----

* WASHER, Shakeproof, M6-1/4

$

$

Not available

35

Briggs & Stratton 185939WGS

WIRE

$18.99

$

Usually ships in 2-12 days

0

36

-----

* WASHER, Lock, 3/8

$

$

Not available

37

-----

* WASHER, Flat, 3/8

$

$

Not available

38

-----

* CAPSCREW, Hex Head, 3/8-16 x 1

$

$

Not available

39

Briggs & Stratton B198896GS

SUPPORT-ALTERNATOR

$44.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 202761GS

DUCT

$

$

Not available

41

-----

* SCREW, Taptite, M5.8 x 10

$

$

Not available

42

-----

* WASHER, Lock, 3/8

$

$

Not available

43

-----

* CAPSCREW, Socket Head, 3/8-16 x 1-1/4

$

$

Not available

44

-----

* CAPSCREW, Hex Head, 5/16-18 x 3/4

$

$

Not available

45

Briggs & Stratton B4300GS

BOLT
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

46

-----

* PPHMS-4-40 x 0.19

$

$

Not available

47

-----

* WASHER, Lock, #4

$

$

Not available

48

Briggs & Stratton 204426GS

SWITCH-TEMP

$40.99

$

In Stock, only 2 left!

0

49

Briggs & Stratton 194699GS

PLATE-TEMP SWITCH
(Superseded to 313561GS)

$58.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 809743

SCREW
(Superseded to 846149)

$4.99

$

In Stock, Qty 20+

0

51

-----

ALTERNATOR

$

$

Not available

52

Briggs & Stratton 692062

SCREW

$3.99

$

In Stock, only 4 left!

0

53

Briggs & Stratton 205398GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 809872

GASKET

$5.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 202885GS

MUFFLER

$

$

Not available

56

Briggs & Stratton 202884GS

BASE

$173.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 203533GS

INSULATION

$210.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 56893GS

CRIMPTITE

$3.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 203085GS

BULKHEAD-ALTERNATOR

$

$

Not available

60

Briggs & Stratton 203534GS

INSULATION

$263.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 194682GS

COLLECTOR

$49.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 202883GS

BOX-MUFFLER TOP

$272.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 192445GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

64

-----

* WASHER, Shakeproof, M6

$

$

Not available

70

Briggs & Stratton 205397GS

DECAL

$17.99

$

Usually ships in 2-12 days

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 203189GS

KIT-MANUAL ACC

Note: (Not Illustrated)

$201.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201093GS

PAINT-TOUCH UP GREEN

Note: (Not Illustrated)

$16.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B3518GS

CAP-FUNNEL

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 202295GS

HOSE-FLEX NG/LPG

Note: (Not Illustrated)

$64.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206532GS

PLATE-COVER
(Superseded to 313326GS)

Note: (Not Illustrated)

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 204013GS

KIT-DECAL

Note: (Not Illustrated)

$66.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 841856

FILTER A/C CARTRIDGE

Note: (Not Illustrated)

$28.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 692520

FILTER-PRECLEANER

Note: (Not Illustrated)

$6.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 842921

FILTER-OIL

Note: (Not Illustrated)

$14.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 202327GS

PAINT-SPRAY GREEN

Note: (Optional Accessory - Not Included)

$

$

Not available

--

Briggs & Stratton 6036

KIT-MAINTENANCE
(Superseded to 6872)

Note: (Optional Accessory - Not Included)

$114.99

$

In Stock, Qty 6

0

--

Briggs & Stratton 6030

KIT-COLD WEATHER (Includes Battery & Oil Warmers)

Note: (Optional Accessory - Not Included)

$

$

Not available
