GF 1748 (55AE234M150) - Cub Cadet Walk-Behind Mower FH500V-AS02 Cooling System Parts Diagram

Walk-Behind Mower

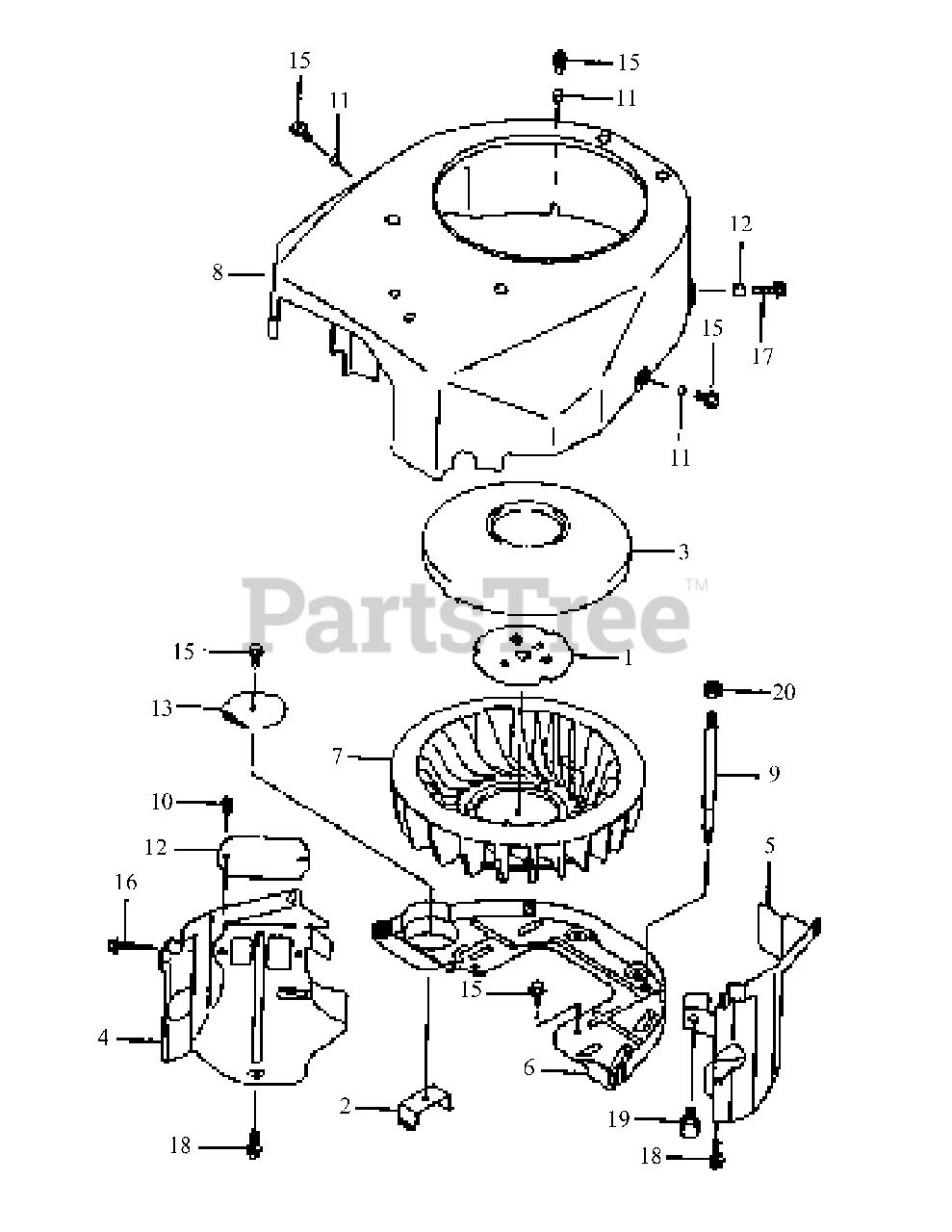

FH500V-AS02 Cooling System Parts Diagram

  • Title

1

Cub Cadet KM-13270-7007

Plate

$5.99

$

In Stock, only 4 left!

0

2

Cub Cadet KM-13271-7002

Plate

$2.99

$

In Stock, only 1 left!

0

3

Cub Cadet KM-14037-7002

Screen
(Superseded to KM-14037-70259H)

$

$

Not available

4

Cub Cadet KM-49089-7001

Shroud, Engine

$

$

Not available

5

Cub Cadet KM-49089-7002

Shroud, Engine

$28.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-49089-7003

Shroud, Engine

$

$

Not available

7

Cub Cadet KM-59041-0007

Fan
(Superseded to KM-59041-0020)

$19.99

$

In Stock, Qty 13

0

8

Cub Cadet KM-59066-7002

Housing, Fan

$

$

Not available

9

Cub Cadet KM-92004-7025

Stud

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 10

0

11

Cub Cadet KM-92026-7001

Spacer 6.2x7.9x5

Note: NLA

$2.49

$

In Stock, only 3 left!

0

12

Cub Cadet KM-92026-7003

Spacer 6.5x7.9x10.5

$

$

Not available

13

Cub Cadet KM-92066-7004

Plug

$7.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92066-7005

Plug

$3.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-130BA0616

Bolt, Flange

$1.49

$

In Stock, only 3 left!

0

17

Cub Cadet KM-130CA0620

Bolt, Flange

$1.49

$

In Stock, Qty 6

0

18

Cub Cadet KM-130BA0625

Bolt, Flange

$1.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-130BA0816

Bolt, Flange

$1.99

$

In Stock, Qty 5

0

20

Cub Cadet KM-311AA0600

Nut, Hex

$0.99

$

In Stock, Qty 20+

0
