GF 1748 (55AE234M150) - Cub Cadet Walk-Behind Mower FH500V-AS02 Cylinder & Crankcase Parts Diagram

Walk-Behind Mower

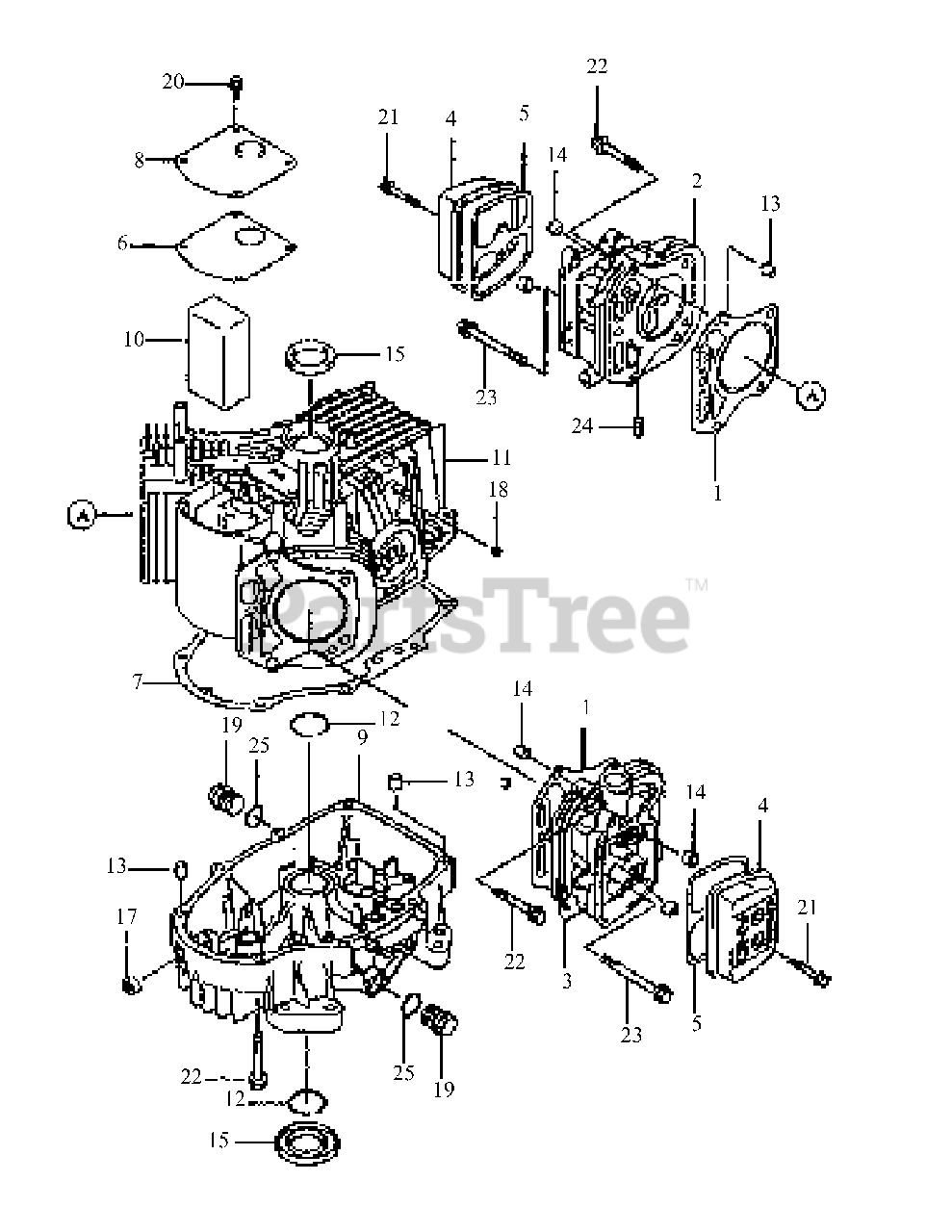

FH500V-AS02 Cylinder & Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7015

Gasket, Head

$10.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11008-6043

Head, Cylinder #1

$273.99

$

In Stock, only 2 left!

0

3

Cub Cadet KM-11008-7020

Head, Cylinder #2

$273.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-11022-7001

Case, Rocker

$

$

Not available

5

Cub Cadet KM-11060-7001

Gasket, Rocker Case

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11061-7097

Gasket, Breather

$8.49

$

In Stock, Qty 9

0

7

Cub Cadet KM-11060-7008

Gasket, Crankcase

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet KM-14091-7006

Cover, Breather
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 11

0

9

Cub Cadet KM-49015-6227

Cover, Crankcase

$

$

Not available

10

Cub Cadet KM-49109-7002

Element, Breather
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 11

0

11

Cub Cadet KM-49120-6117

Crankcase, Comp

Note: NLA

$

$

Not available

12

Cub Cadet KM-92033-7003

Ring, Snap

$0.99

$

In Stock, Qty 20+

0

13

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-92049-7001

Seal, Oil

$8.49

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92049-7010

Seal, Oil Crankcase

$3.49

$

In Stock, Qty 14

0

15

Cub Cadet KM-92049-7011

Seal, Oil Cover

$5.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92049-7019

Seal, Oil

$2.49

$

In Stock, Qty 20+

0

18

Cub Cadet KM-92066-7002

Plug

$

$

Not available

19

Cub Cadet KM-92066-7003

Plug
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 20+

0

20

Cub Cadet KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

21

Cub Cadet KM-130BA0640

Bolt, Flange

$1.49

$

In Stock, only 3 left!

0

22

Cub Cadet KM-130CA0850

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

23

Cub Cadet KM-130CA0875

Bolt, Flange

$2.49

$

In Stock, Qty 11

0

24

Cub Cadet KM-172G0618

Bolt, Stud
(Superseded to KM-172BA0618)

$1.49

$

In Stock, only 3 left!

0

25

Cub Cadet KM-670D2016

O-Ring

$1.99

$

In Stock, Qty 20+

0

Cub Cadet KM-FH500V-AS02

Replacement Engine

Note: (not shown)

$

$

Not available
