GF 1748 (55AE234M150) - Cub Cadet Walk-Behind Mower FH500V-AS02 Starter Parts Diagram

Walk-Behind Mower

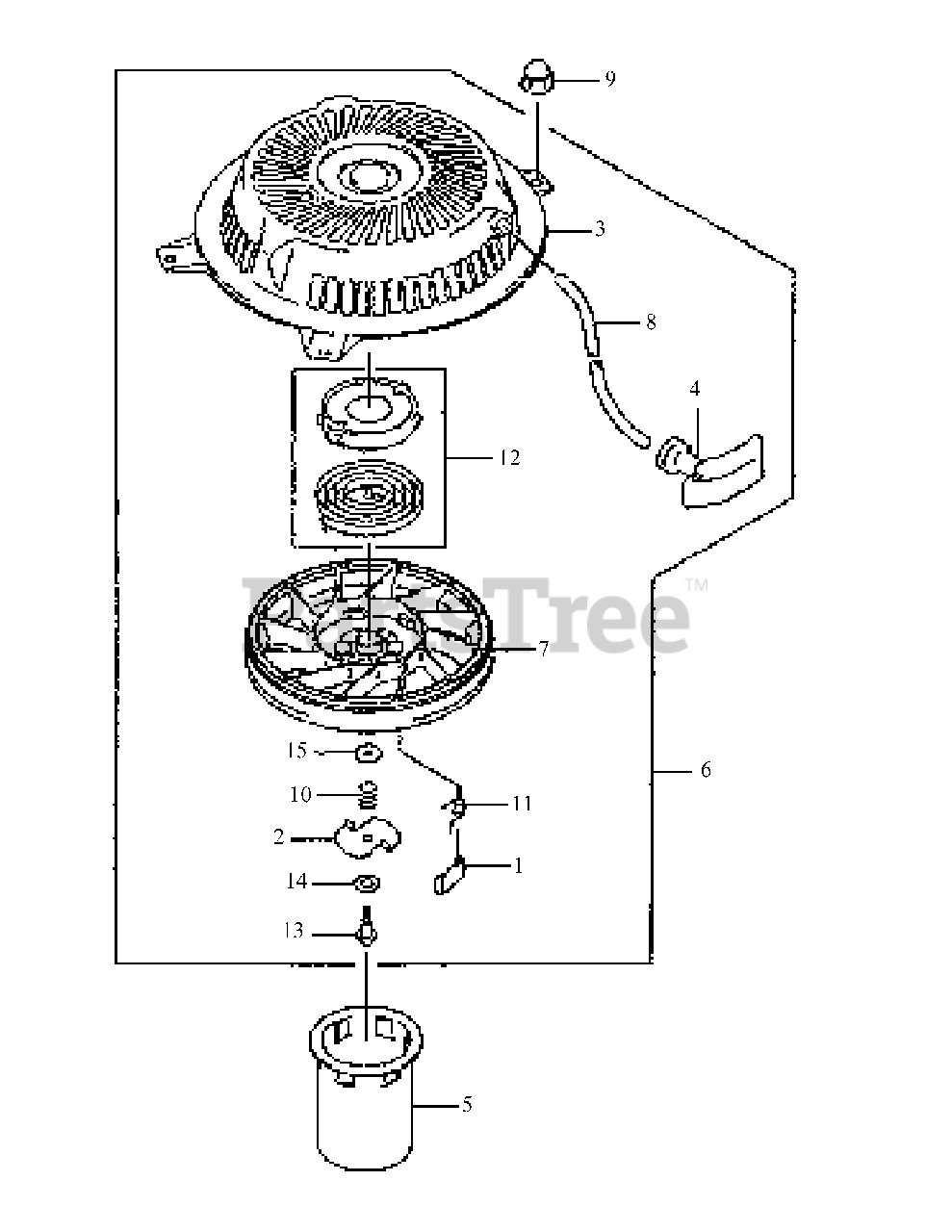

FH500V-AS02 Starter Parts Diagram

  • Title

1

Cub Cadet KM-13165-7001

Pawl, Recoil Starter

$4.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-14020-7001

Retainer

$9.99

$

In Stock, Qty 5

0

3

Cub Cadet KM-32099-7001

Case, Recoil Starter

$60.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-46075-7001

Grip, Recoil Starter

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet KM-49080-7001

Pulley, Starter
(Superseded to KM-49080-0006)

$14.99

$

In Stock, only 1 left!

0

6

Cub Cadet KM-49088-7012

Starter, Recoil
(Superseded to KM-49088-0014)

$69.99

$

In Stock, Qty 9

0

7

Cub Cadet KM-59101-7001

Reel, Recoil Starter

$26.99

$

In Stock, only 1 left!

0

8

Cub Cadet KM-59106-7001

Rope, Starter
(Superseded to KM-59106-7005)

$10.99

$

In Stock, only 3 left!

0

9

Cub Cadet KM-92210-0003

Nut

$0.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92145-7006

Spring

$1.49

$

In Stock, only 1 left!

0

11

Cub Cadet KM-92145-7007

Spring

$0.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92145-7008

Spring

$20.99

$

In Stock, only 2 left!

0

13

Cub Cadet KM-92151-7008

Bolt

$2.49

$

In Stock, Qty 7

0

14

Cub Cadet KM-92200-7004

Washer

$1.49

$

In Stock, Qty 15

0

15

Cub Cadet KM-92200-7005

Washer

$1.99

$

In Stock, only 3 left!

0
