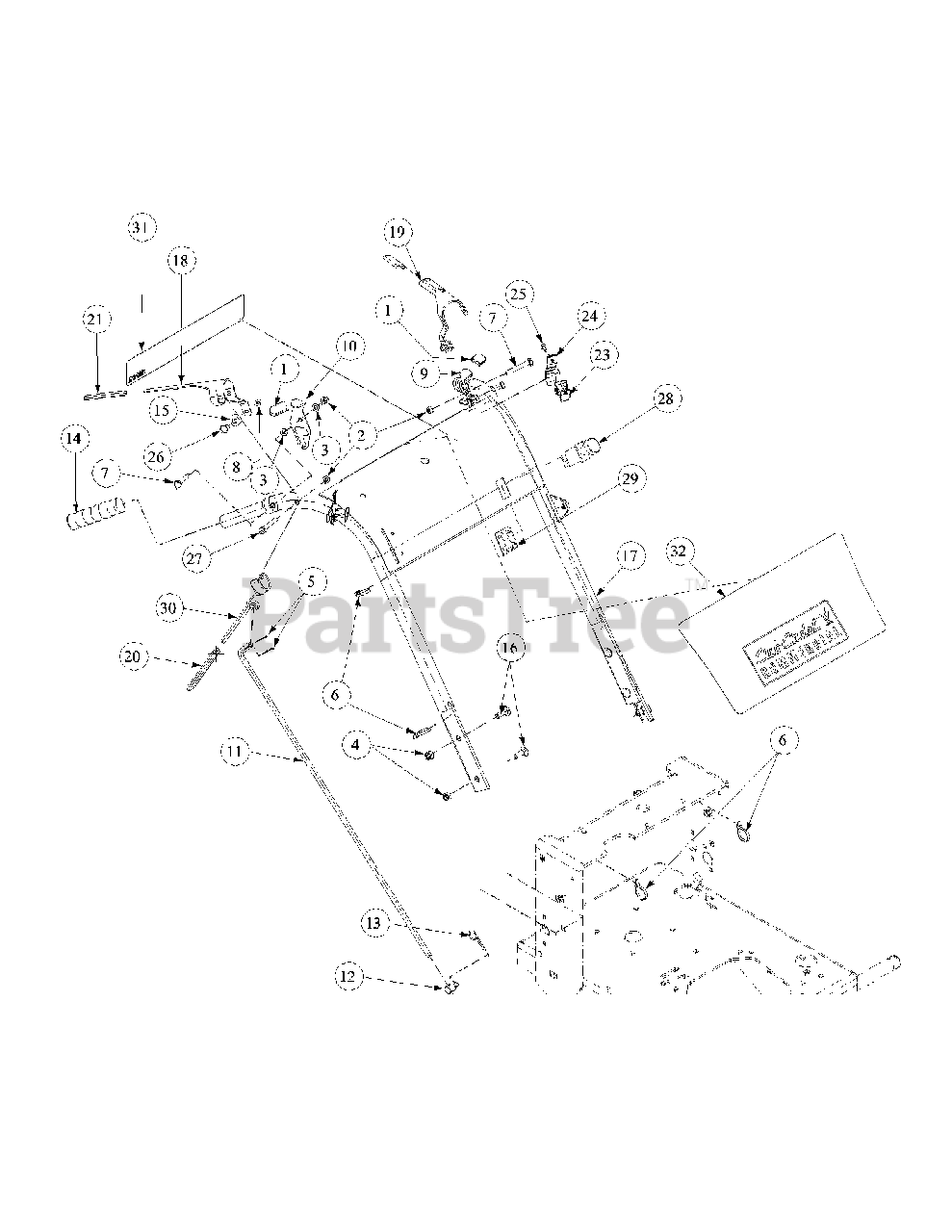

GF 1748 (55AE234M150) - Cub Cadet Walk-Behind Mower Handle Assembly Parts Diagram

Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 00011211

Grip, Neutral Latch, 1.25"

$8.99

$

In Stock, only 2 left!

0

2

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012169

Flat Washer, 5/16 Zinc

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00012204

Cotter Pin, 3/32 x 3/4, Zinc

$

$

Not available

6

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

7

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 13

0

8

Cub Cadet 712-04177

Lock Nut, Nylon Insert

$6.49

$

In Stock, only 4 left!

0

9

Cub Cadet 00021858

Neutral Latch, Left Hand

Note: NLA

$

$

Not available

10

Cub Cadet 00021910

Neutral Latch, Right Hand

$

$

Not available

11

Cub Cadet 00021927

Steering Control Rod

$31.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00021943

Joint Swivel

$20.99

$

In Stock, only 1 left!

0

13

Cub Cadet 00021956

Hair Pin 3/8-1/2
(Superseded to 914-04023)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 00030378

Plastic Handle Grip, Black, 4-5/8

$

$

Not available

15

Cub Cadet 00071691

Control Rod, Hydro Spacer

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 9

0

17

Cub Cadet 01001556-0637

Handle Assembly

$

$

Not available

18

Cub Cadet 02002360-0637

Operator Presence Control RH

$35.99

$

In Stock, only 1 left!

0

19

Cub Cadet 02002362-0637

Operator Presence Control LH

$

$

Not available

20

Cub Cadet 01001714

Control Sleeve, Black

$10.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01001715

Operator Control Sleeve, Yellow

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01001716

Harness Assembly Adapter (not show)

$

$

Not available

23

Cub Cadet 01001717

Switch Mounting Snap
(Superseded to 925-3166)

$15.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01001863

Operator Presence Return Spring

$

$

Not available

25

Cub Cadet 01001864

Hex Index Washer Screw, 0.500
(Superseded to 1767754)

$

$

Not available

26

Cub Cadet 01001919

Shoulder Screw, .38 x .412, 1/4-28
(Superseded to 938-0826)

$11.99

$

In Stock, Qty 7

0

27

Cub Cadet 01001972

Hex Cap Screw, 5/16-18, 2.00

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01002111

Electric PTO Switch
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

29

Cub Cadet 783-0462

PTO Retainer Switch

$7.99

$

In Stock, only 2 left!

0

30

Cub Cadet 02002358-0637

Control Lever Assembly

$

$

Not available

31

Cub Cadet 01006132

Label Commercial Mower Instruction

$

$

Not available

32

Cub Cadet 01006668

Gear Label Mower Panel

$47.99

$

Usually ships in 3-6 days

0
