GF 1748 (55AE234M150) - Cub Cadet Walk-Behind Mower Kawasaki Engine Assembly Parts Diagram

Walk-Behind Mower

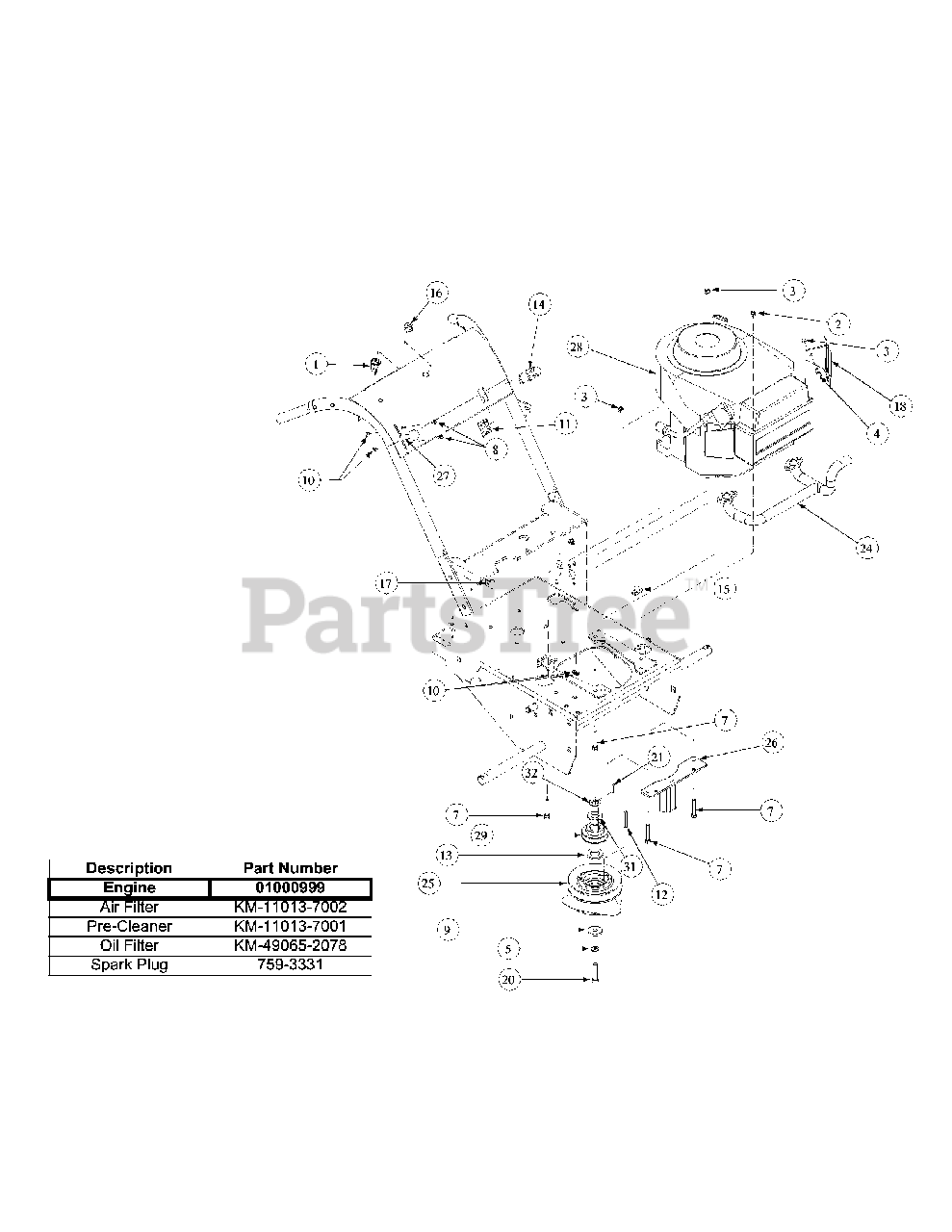

Kawasaki Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 00010943P

Single Ignition ON/OFF Switch

$

$

Not available

2

Cub Cadet 00022547

Lock Nut, 5/16-18

$

$

Not available

3

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00013406

Hex Cap Screw, 5/16-18x3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00012195

Lock Washer

$

$

Not available

7

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 13

0

8

Cub Cadet 00013669

Screw, Hex Washer, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00013675

Clutch Washer

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$2.99

$

In Stock, only 3 left!

0

11

Cub Cadet 783-0462

Retainer Clip

$7.99

$

In Stock, only 2 left!

0

12

Cub Cadet 00021517

Key Stick, 1/4 x 1/4 x 2

$8.49

$

In Stock, only 1 left!

0

13

Cub Cadet 00023822

Special Washer
(Superseded to 936-0274)

$8.49

$

In Stock, Qty 17

0

14

Cub Cadet 01002111

Blade Clutch Switch
(Superseded to 925-1716A)

$68.99

$

In Stock, Qty 20+

0

15

Cub Cadet 00031081

Support Clamp, 1/2" Tubing

$5.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 00032097

Nut, w/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

17

Cub Cadet 00060807

Support Clamp, 3/8 OD

$

$

Not available

18

Cub Cadet 01000192

Muffler Bracket, Kawasaki

$

$

Not available

19

Cub Cadet 01000983

Muffler Clamp Assembly

Note: NLA

$

$

Not available

20

Cub Cadet 01001395

Capscrew, 7/16-20 x 2.5

$4.49

$

In Stock, only 2 left!

0

21

Cub Cadet 01001393

Keystock, 1/4 x 1/4 x 1

$

$

Not available

22

Cub Cadet 01000194

Belt
(Superseded to 01000194P)

$54.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01001993

Kawasaki Manifold

$

$

Not available

25

Cub Cadet 01003479P

Electric Clutch

$

$

Not available

26

Cub Cadet 01003485

Clutch Retainer Bracket Assembly

$

$

Not available

27

Cub Cadet 01004051P

Control Throttle w/detent

$

$

Not available

28

Cub Cadet KM-FH500V-AS02

Kawasaki Engine, 17V

$

$

Not available

29

Cub Cadet 01004710

Gear Transmission Pulley

$

$

Not available

30

Cub Cadet 01004714

Kawasaki, Harness Assembly Gear w/electric clutch

$

$

Not available

31

Cub Cadet 00072586

Flat Washer
(Superseded to 736-0250)

$4.49

$

In Stock, Qty 10

0

32

Cub Cadet 00073094

Spacer Engine Pulley, 12.5 Vanguard

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet KM-11013-7002

Air Filter

$21.99

$

In Stock, Qty 17

0

Cub Cadet KM-11013-7033

Pre-Cleaner

$5.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3331

Spark Plug

$3.99

$

In Stock, only 1 left!

0
