GH 24 (UT-26152) - Green Machine Hedge Trimmer Exhaust System Parts Diagram

Hedge Trimmer

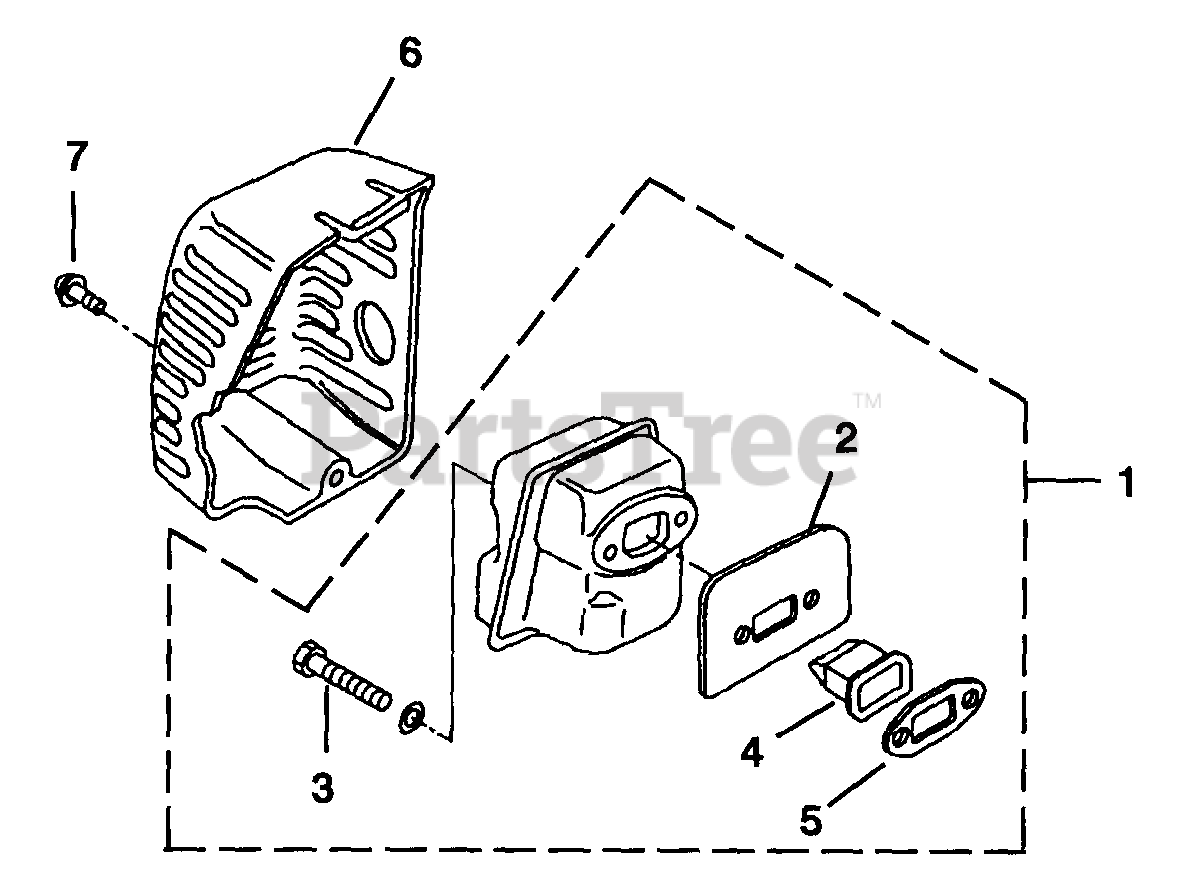

Exhaust System Parts Diagram

  • Title

1

Homelite UP00547

MUFFLER KIT

$

$

Not available

2

Homelite PS00858

GASKET-Muffler

$

$

Not available

3

Homelite PS00859

SCREW-Socket Hd (M5 x 50)

Note: (Torque Specs: 61-69 In/Lbs., 6.9-7.8 Nm)

$

$

Not available

4

Homelite PS01367

SPARK ARRESTOR SCREEN

$

$

Not available

5

Homelite PS01368

GASKET-Muffler

$

$

Currently unavailable

6

Homelite PS00860

MUFFLER COVER

$

$

Not available

7

Homelite PS00861

SCREW ASSEMBLY (M5 x 16)

Note: (Torque Specs: 31-39 In/Lbs., 3.5-4.4 Nm, Loctite Required: Red 262)

$

$

Not available
