GH 24 (UT-26154) - Green Machine Hedge Trimmer Engine Internal Parts Diagram

Hedge Trimmer

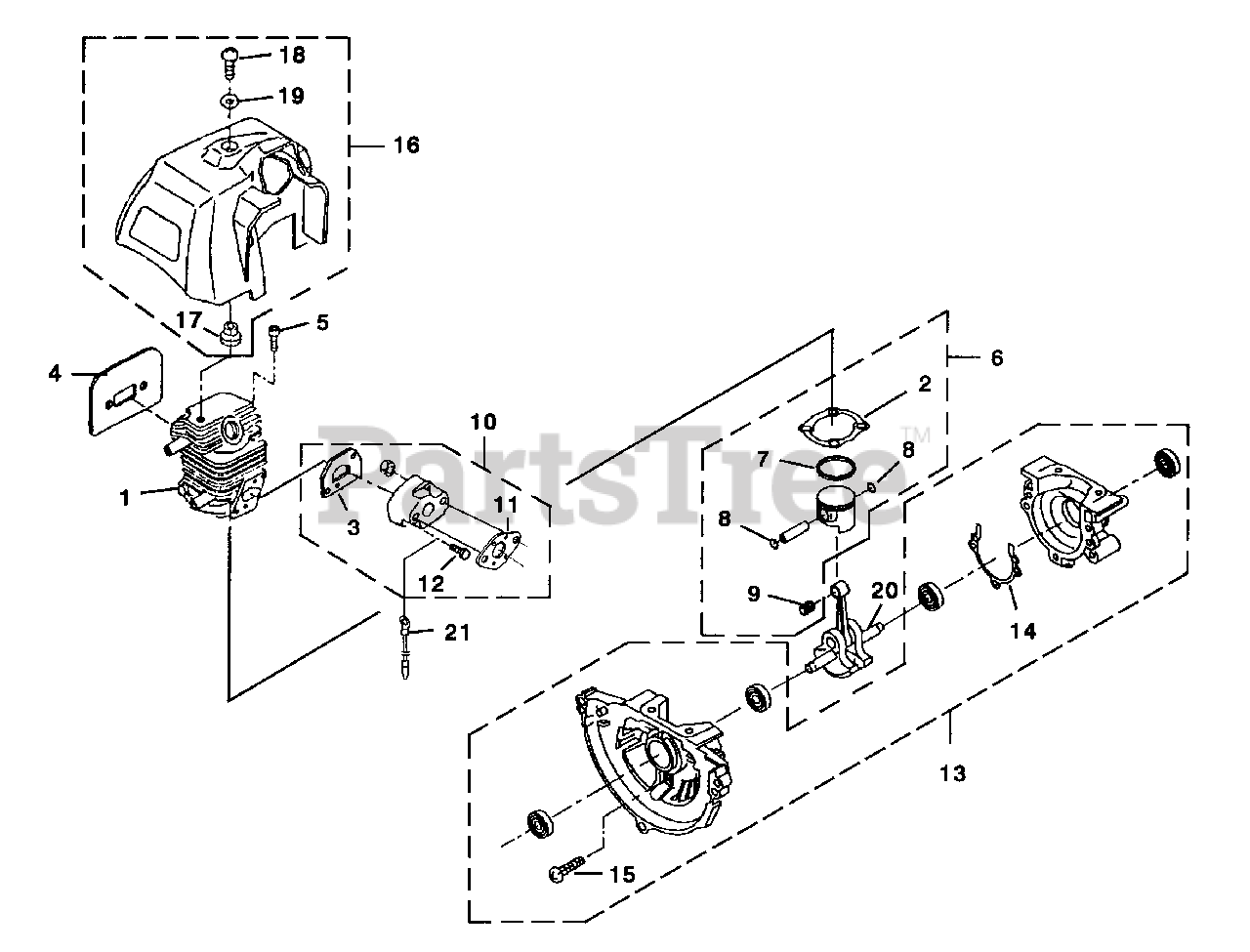

Engine Internal Parts Diagram

  • Title

1

Homelite UP00543

CYLINDER KIT

$

$

Not available

2

Homelite PS00574

GASKET-Cylinder

$

$

Currently unavailable

3

Homelite PS00838

GASKET-Heat Dam

$

$

Not available

4

Homelite PS00839

GASKET-Muffler

$

$

Not available

5

Homelite PS00840

SCREW-Socket Hd (M5 x 20W SW)

Note: Torque Specs: 62-78 In/Lbs, 7.0 - 8.8 Nm

$1.49

$

Usually ships in 3-7 days

0

6

Homelite UP00544

PISTON ASSEMBLY

$

$

Not available

7

Homelite PS00842

RING-Piston

$

$

Not available

8

Homelite PS00843

RETAINER-Wrist Pin

$

$

Not available

9

Homelite PS01366

BEARING-Wrist Pin
(Superseded to PS00488)

$

$

Not available

2

Homelite PS00574

GASKET-Cylinder

$

$

Currently unavailable

10

Homelite UP00545

HEAT DAM ASSEMBLY

$

$

Not available

3

Homelite PS00838

GASKET-Heat Dam

$

$

Not available

11

Homelite PS00851

GASKET-Carburetor

$

$

Not available

12

Homelite PS00852

SCREWS (M5 x 25 W SW)

Note: Torque Specs: 36-44 In/Lbs, 4.1 - 5.0 Nm

$1.49

$

Usually ships in 3-7 days

0

13

Homelite UP00541

CRANKCASE ASSEMBLY

$

$

Not available

14

Homelite PS00823

GASKET-Crankcase

$

$

Not available

15

Homelite PS00824

SCREW

$1.49

$

Usually ships in 3-7 days

0

16

Homelite PS00548

CYLINDER COVER ASSEMBLY

$

$

Not available

17

Homelite PS00862

SPACER-Cylinder Cover

$

$

Not available

18

Homelite PS00863

SCREW

$

$

Not available

19

Homelite PS00864

WASHER

$

$

Not available

20

Homelite PS00818

CRANKSHAFT & ROD

$

$

Not available

21

Homelite PS03365

WIRE
(Superseded to PS00813)

Note: (For GH30 Only)

$

$

Currently unavailable
