GH 24 (UT-26154) - Green Machine Hedge Trimmer Ignition - Rotor - Clutch Parts Diagram

Hedge Trimmer

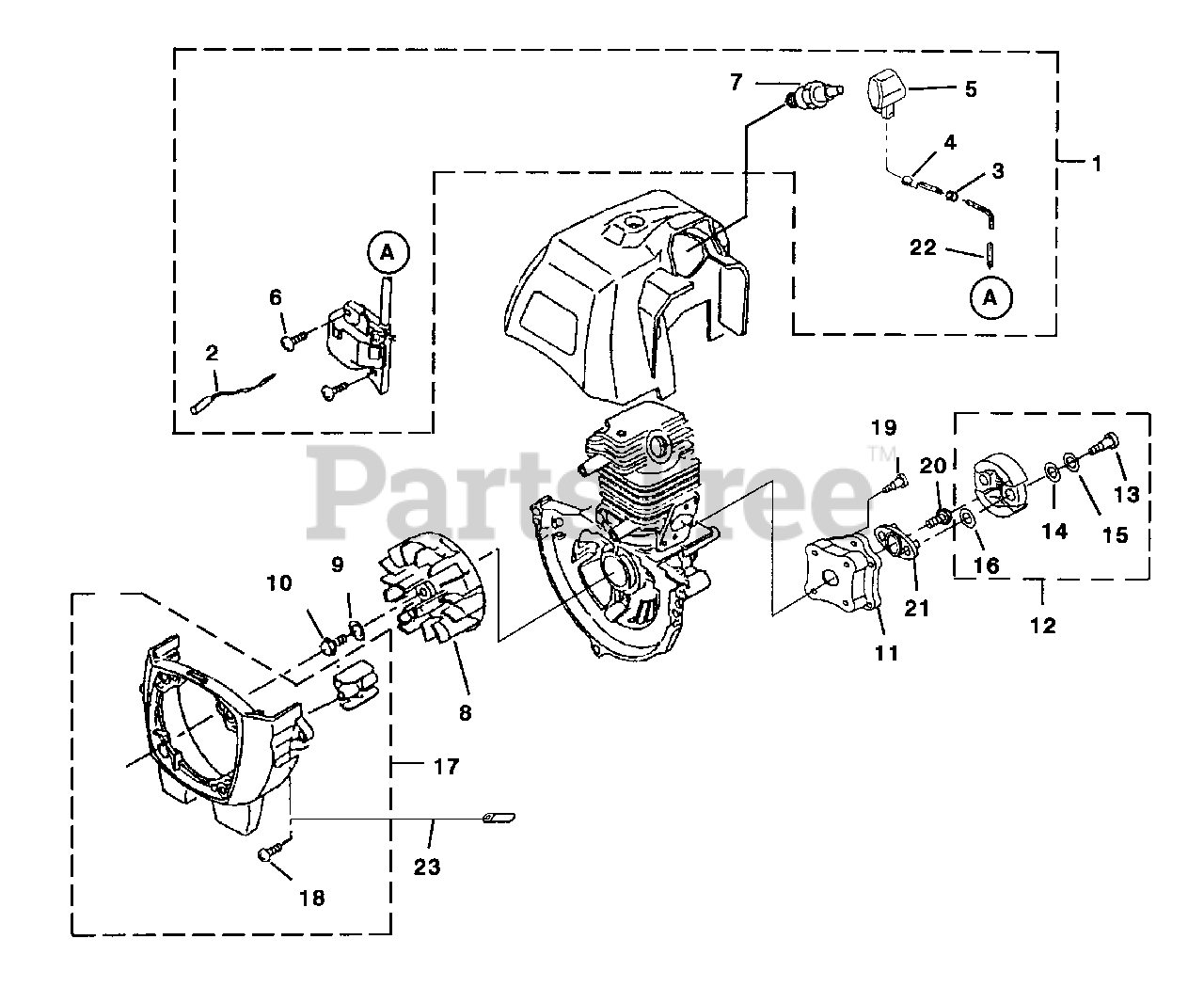

Ignition - Rotor - Clutch Parts Diagram

  • Title

1

Homelite UP00546

IGNITION KIT

$

$

Not available

2

Homelite PS00853

WIRE-Ground

$

$

Not available

3

Homelite PS00854

GROMMET

$

$

Not available

4

Homelite PS00499

SPRING-Plug Cap

$

$

Not available

5

Homelite PS00856

CAP-Plug

$

$

Not available

6

Homelite PS00857

SCREW (M4 x 20)

Note: Torque Specs: 62-78 In/Lbs, 7.0 - 8.8 Nm

$1.49

$

Usually ships in 3-7 days

0

7

Homelite PS03021

SPARK PLUG

Note: Torque Specs: 122-138 In/Lbs, 13.8 - 15.6 Nm

$

$

Currently unavailable

8

Homelite PS00815

ROTOR

$

$

Not available

9

Homelite PS00816

WASHER

$

$

Not available

10

Homelite PS00817

BOLT ASSEMBLY (M6 x 16)

Note: Torque Specs: 79-95 In/Lbs, 8.9 - 10.7 Nm

$

$

Not available

11

Homelite PS00819

ENGINE BASE

$

$

Not available

12

Homelite UP00542

CLUTCH ASSEMBLY

$

$

Not available

13

Homelite PS00826

BOLT-Clutch

$

$

Not available

14

Homelite PS00588

WASHER

$

$

Not available

15

Homelite PS00828

WASHER

$

$

Not available

16

Homelite PS00829

WASHER

$

$

Not available

17

Homelite UP00540

BLOWER HOUSING ASSEMBLY

$

$

Not available

18

Homelite PS00814

SCREW ASSEMBLY

$

$

Not available

19

Homelite PS00820

SCREW ASSEMBLY (M5 x W SW)

$

$

Not available

20

Homelite PS00822

BOLT ASSEMBLY (M5 x 16)

Note: Torque Specs: 36-44 In/Lbs, 4.1 - 5.0 Nm

$

$

Not available

21

Homelite PS00821

HOLDER-Clutch

$

$

Not available

19

Homelite PS00820

SCREW ASSEMBLY (M5 x W SW)

$

$

Not available

20

Homelite PS00822

BOLT ASSEMBLY (MS x 16)

$

$

Not available

21

Homelite PS00821

HOLDER-Clutch

$

$

Not available

22

Homelite PS03025

TUBE

$

$

Not available

23

Homelite PS03366

CLAMP

Note: (For GH30 Only)

$

$

Not available
