GH 24 (UT-26154) - Green Machine Hedge Trimmer Starter Parts Diagram

Hedge Trimmer

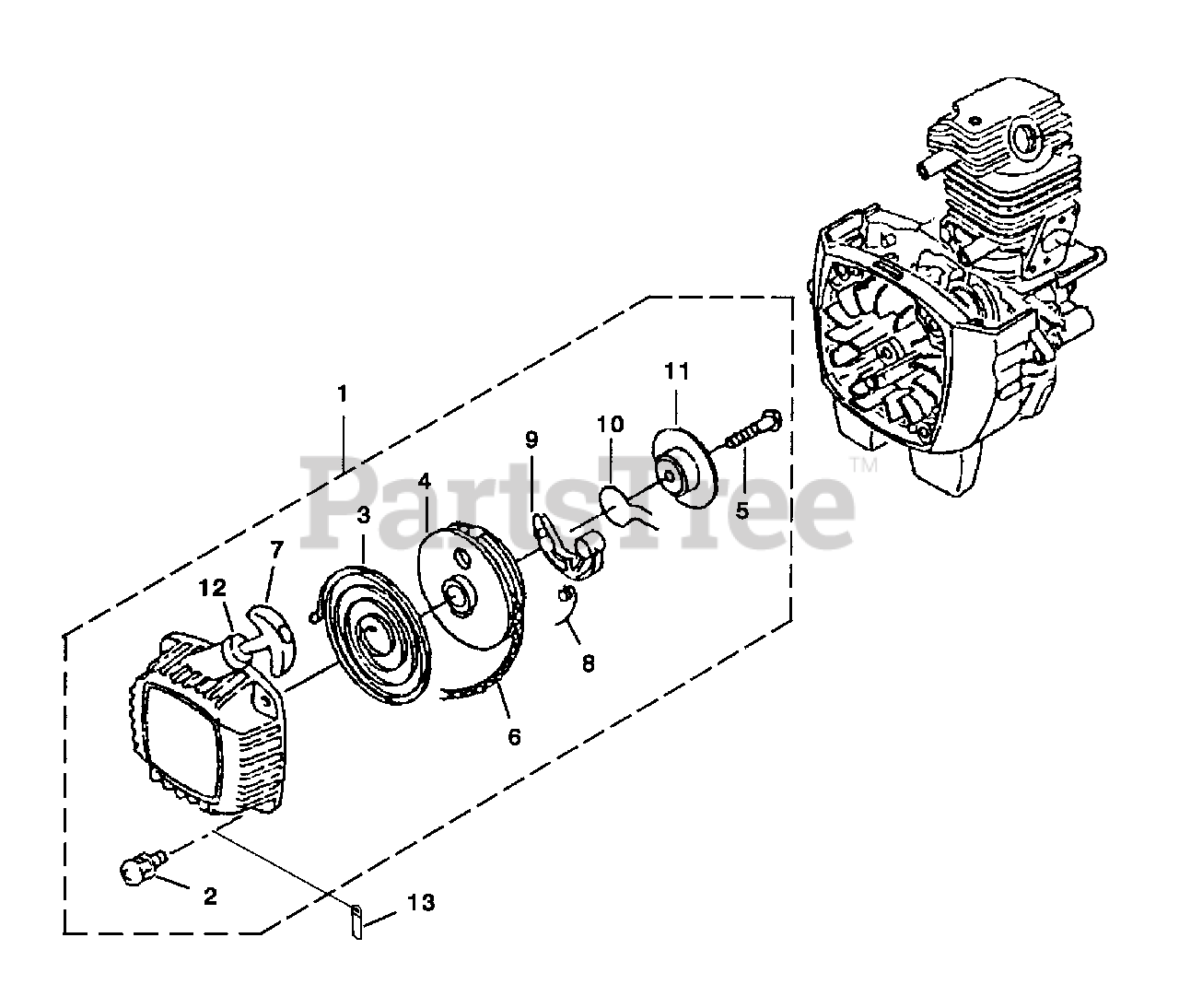

Starter Parts Diagram

  • Title

1

Homelite UP00539

STARTER COMPLETE

$200.99

$

Usually ships in 3-7 days

0

2

Homelite PS00802

SCREW ASSEMBLY (M5 x 14)

Note: Torque Specs: 13 - 17 In/Lbs, 1.5 - 1.9 Nm

$

$

Not available

3

Homelite PS00803

SPRING

$

$

Not available

4

Homelite PS00804

PULLEY

$

$

Not available

5

Homelite PS00805

SCREW-Set

Note: Torque Specs: 18 - 26 In/Lbs, 2.0 - 2.9 Nm

$

$

Not available

6

Homelite PS00475

ROPE-Starter

$

$

Not available

7

Homelite PS00568

GRIP

$

$

Not available

8

Homelite PS00808

SPRING-Return

$

$

Not available

9

Homelite PS00809

RATCHET

$

$

Not available

10

Homelite PS00810

SPRING-Friction

$

$

Not available

11

Homelite PS00811

PLATE-Friction

$

$

Not available

12

Homelite PS00812

DAMPER-Grip

$

$

Not available

13

Homelite PS01430

CLAMP

Note: (For GH24 Only)

$

$

Not available
