GH 30 (UT-26153) - Green Machine Hedge Trimmer Handles Parts Diagram

Hedge Trimmer

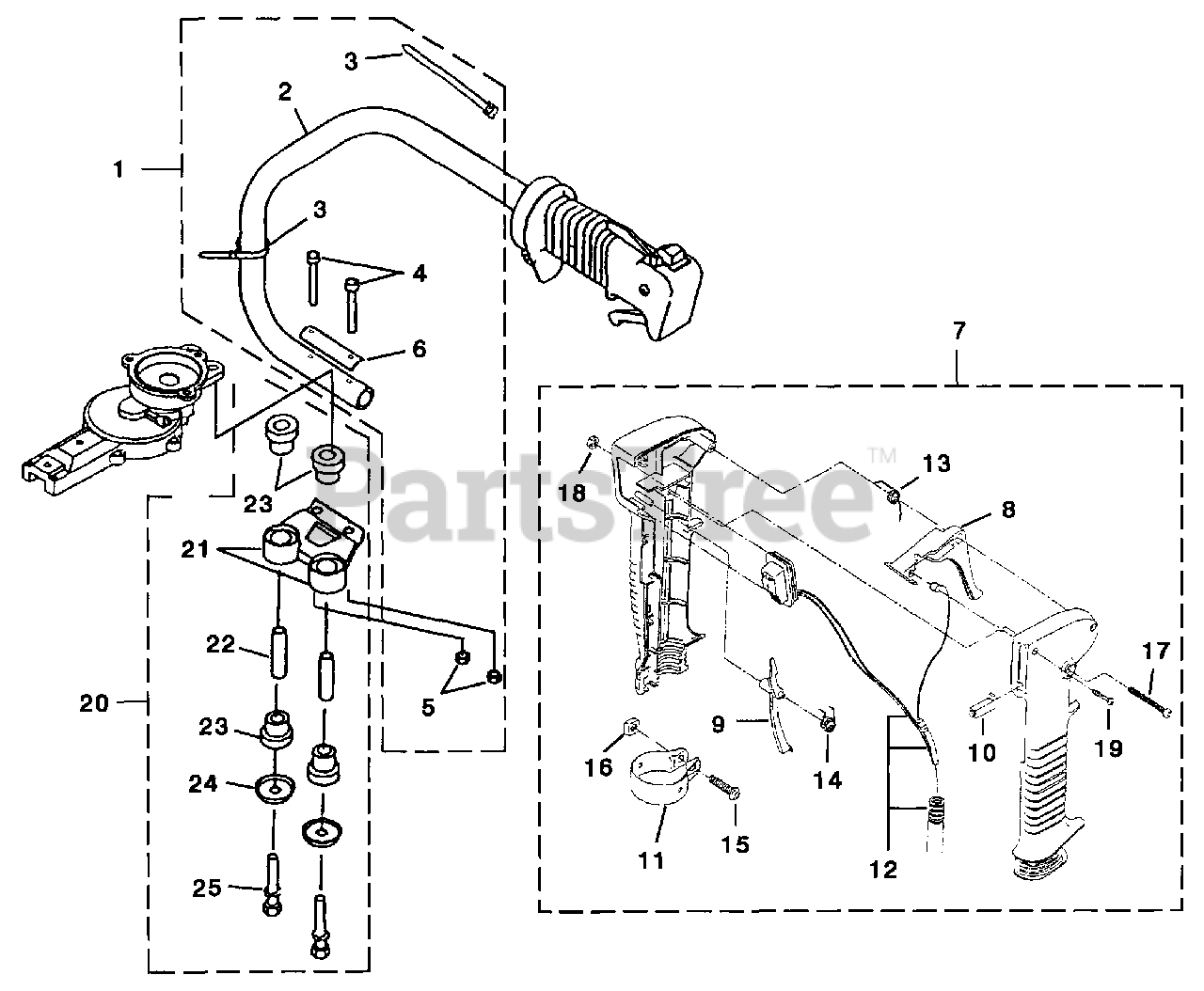

Handles Parts Diagram

  • Title

1

Homelite UP00577

REAR HANDLE BAR

$

$

Not available

2

Homelite PS01000

HANDLE BAR-Left

$

$

Not available

3

Homelite PS01002

TIE STRAPS-Grip

$

$

Not available

4

Homelite PS01004

SCREW (M5 x 30)

Note: (Torque Specs: 31-39 In/Lbs., 3.5-4.4 Nm)

$

$

Not available

5

Homelite PS01005

NUT (M5)

$

$

Not available

6

Homelite PS01006

PLATE-Handle Mounting

$

$

Not available

7

Homelite UP00769

REAR HANDLE GRIP

$

$

Not available

8

Homelite PS01247

TRIGGER-Throttle

$

$

Not available

9

Homelite PS01248

LATCH-Throttle

$

$

Not available

10

Homelite PS01249

LOCK-Throttle Start

$

$

Not available

11

Homelite PS00463

CLAMP

$

$

Not available

12

Homelite PS01250

THROTTLE CABLE W/ Harness

$

$

Not available

13

Homelite PS00466

SPRING-Throttle Trigger

$

$

Not available

14

Homelite PS00467

SPRING-Throttle Latch

$

$

Not available

15

Homelite PS00468

SCREW

$

$

Not available

16

Homelite PS00469

NUT

$

$

Not available

17

Homelite PS01253

SCREW

$

$

Not available

18

Homelite PS01258

NUT

$

$

Not available

19

Homelite PS00470

SCREW-Self Tapping

$

$

Not available

20

Homelite UP00580

ANTI VIBE KIT

$

$

Not available

21

Homelite PS01007

BRACKET-Handle

$

$

Not available

22

Homelite PS01010

SPACER-Collar

$

$

Not available

23

Homelite PS01011

BUSHING-Anti Vibration

$

$

Not available

24

Homelite PS01003

WASHER

$

$

Not available

25

Homelite PS01012

SCREW (M6 x 35 W SW)

Note: (Torque Specs: 31-39 In/Lbs., 3.5-4.4 Nm)

$

$

Not available
