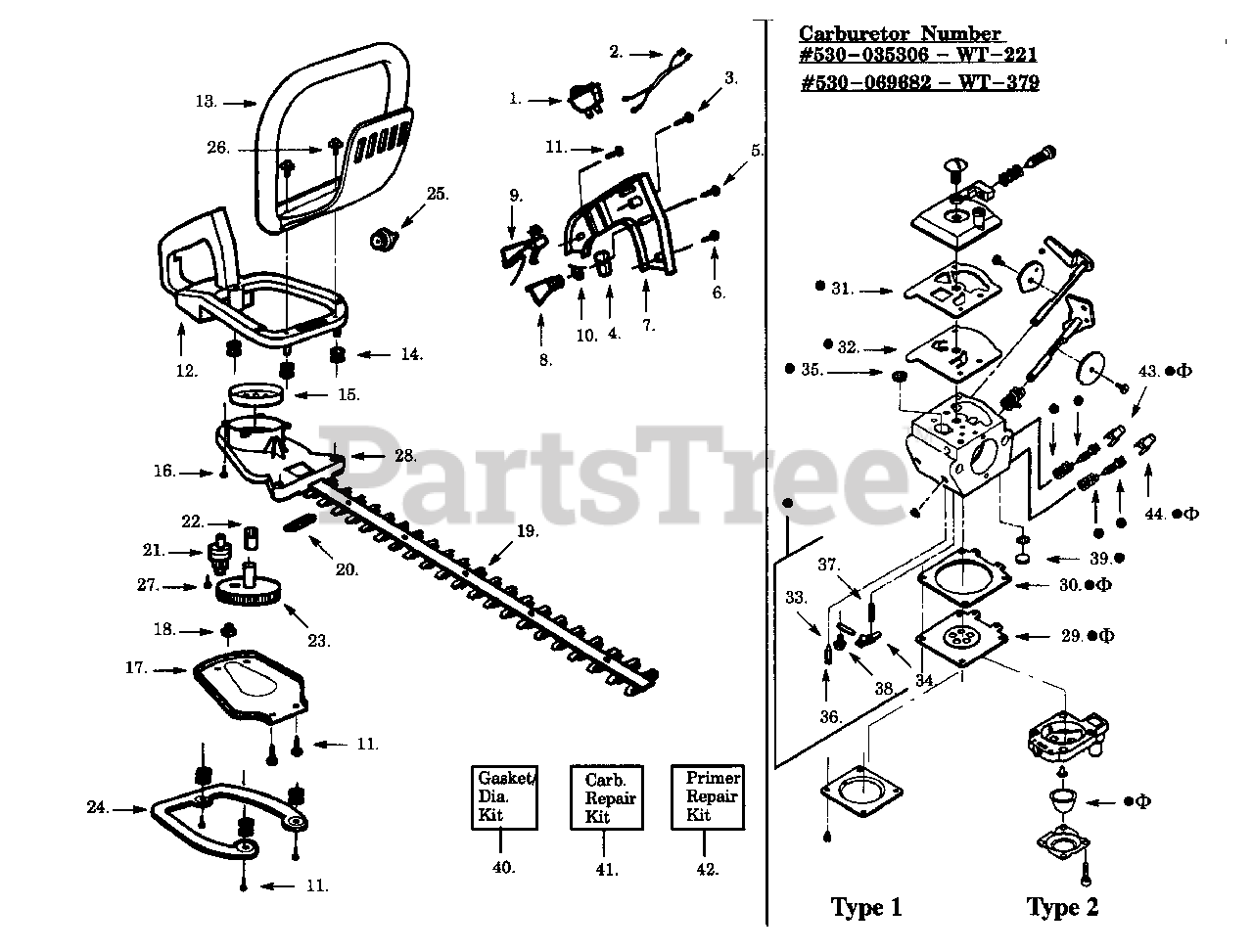

GHT 22 - Weed Eater Hedge Trimmer HANDLE, BLADE, & CARBURETORS WT-221, WT-379 Parts Diagram

Hedge Trimmer

HANDLE, BLADE, & CARBURETORS WT-221, WT-379 Parts Diagram

  • Title

1

Poulan 530029954

Ignition Switch

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 530036443

Lead Wire Ass'y.
(Superseded to 545172901)

$13.84

$

Usually ships in 3-10 days

0

3

Poulan 530015775

Screw-Handle Cov.

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530029958

Trigger Lever

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530015940

Screw-Handle Cov.

$6.49

$

In Stock, Qty 9

0

6

Poulan 530015770

Screw-Handle Cov.

$

$

Not available

7

Poulan 530038305

Handle Cover

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530029956

Throttle Trigger
(Superseded to 530053884)

$3.99

$

In Stock, only 3 left!

0

9

Poulan 530036122

Throttle Lockout

$

$

Not available

10

Poulan 530036123

Trigger Spring

$3.99

$

In Stock, only 4 left!

0

11

Poulan 530015934

Screw-Handle Cov.

$4.99

$

In Stock, only 1 left!

0

12

Poulan 530047494

Rear Handle/Tank Ass'y.
(Superseded to 530047879)

$

$

Not available

13

Poulan 530094992

Front Handle

$

$

Not available

14

Poulan 530029946

Isolator Spring

$3.99

$

In Stock, only 4 left!

0

15

Poulan 530048113

Clutch Drum
(Superseded to 530056069)

$36.99

$

Usually ships in 3-10 days

0

16

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

17

Poulan 530029916

Gear Box Plate

$6.49

$

In Stock, only 2 left!

0

18

Poulan 530032121

Bushing Blade

$

$

Not available

19

Poulan 530094991

Blade Ass'y., 17"
(Superseded to 530403228)

$

$

Not available

19

Poulan 530095074

Blade Ass'y., 22"
(Superseded to 530403228)

$

$

Not available

20

Poulan 530029948

Blade Seal

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530036228

Pinion Ass'y.

$

$

Not available

22

Poulan 530016013

Drive Gear Bearings

$6.49

$

Usually ships in 3-10 days

0

23

Poulan 530069355

Drive Gear Kit

$

$

Not available

24

Poulan 530036046

Isolator Plate

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530036965

Fuel Cap Ass'y.
(Superseded to 577858601)

$7.49

$

In Stock, Qty 7

0

26

Poulan 530015955

Screw-Front Handle

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530015805

Screw-Gear
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

28

Poulan 530014399

Gear Box Ass'y. (Incl. 21, 22 & 27)
(Superseded to 530071931)

$

$

Not available

29

Poulan 530035014

Metering Diaphragm Type 1 Only
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

30

Poulan 530035320

Metering Diaphragm Gasket Type 1 Only

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530035016

Pump Gasket Type 1 Only

$3.49

$

In Stock, Qty 6

0

32

Poulan 530035017

Pump Diaphragm Type 1 Only

$0.99

$

Usually ships in 3-10 days

0

33

Poulan 530035250

Metering Pin Type 1 Only
(Superseded to 505520125)

$3.49

$

In Stock, only 3 left!

0

34

Poulan 530035031

Metering Lever Type 1 Only
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

35

Poulan 530035178

Fuel Inlet Screen Type 1 Only

$3.99

$

Usually ships in 3-10 days

0

36

Poulan 530035223

Inlet Needle Valve Type 1 Only
(Superseded to 503563401)

$6.49

$

In Stock, Qty 12

0

37

Poulan 530035139

Metering Lever Spring Type 1 Only
(Superseded to 530035188)

$4.99

$

In Stock, Qty 11

0

38

Poulan 530035236

Metering Lever Pin Screw Type 1 Only

$2.49

$

Usually ships in 3-10 days

0

39

Poulan 530035319

Welch Plug Type 1 Only

$

$

Not available

40

Poulan 530035213

Gasket/Diaphragm Kit (Incl. 29-32) Type 1
(Superseded to 530069844)

$18.99

$

Usually ships in 3-10 days

0

41

Poulan 530035312

Carb. Repair Kit-, (WT-221) (Incl. 33-38,& 40) Type 1

$30.99

$

Usually ships in 3-10 days

0

41

Poulan 530069656

Carb. Repair Kit-, (WT-379) ( . Indicates Contents) Type 2

$18.99

$

Usually ships in 3-10 days

0

43

Poulan 530038317

Limiter Cap-Low Type 2 Only

$3.99

$

Usually ships in 3-10 days

0

44

Poulan 530038318

Limiter Cap-High Type 2 Only

$3.99

$

In Stock, Qty 20+

0

Poulan 530047459

Starting Instruction Type 2

Note: Not Shown.

$

$

Not available
