GHT 225 LE - Poulan Hedge Trimmer, Type 3 (2008-06) Cutting Equipment - Type 3 Parts Diagram

Hedge Trimmer, Type 3

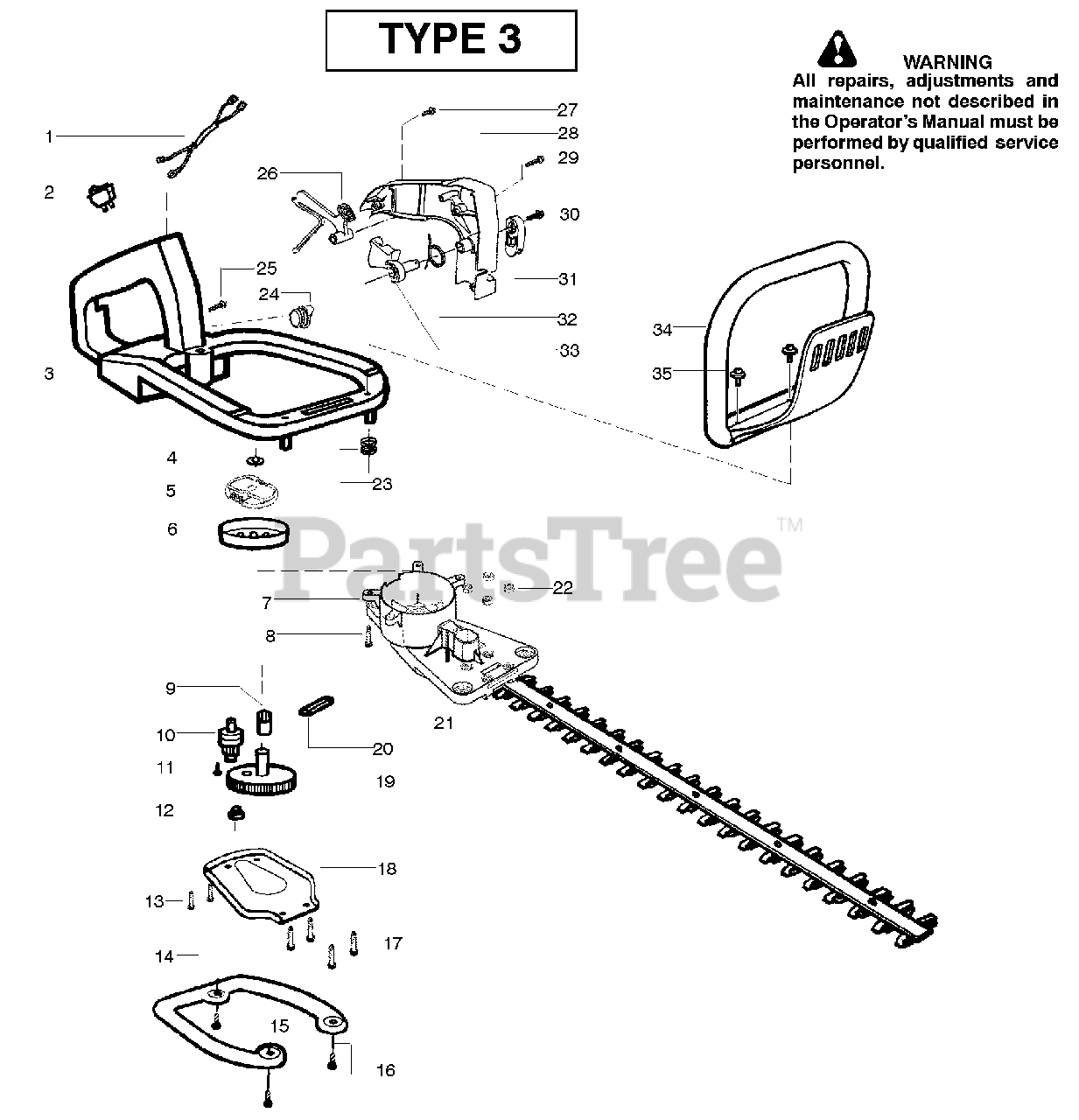

Cutting Equipment - Type 3 Parts Diagram

  • Title

1

Electrolux/AYP 530054133

Assy-Leadwire/Switch
(Superseded to 545172901)

Note: (Incl.#2)

$13.84

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530029954

Switch-Ignition

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530071656

Assy-Rear Handle & Tank
(Superseded to 530071655)

$

$

Not available

4

Electrolux/AYP 530015828

Washer-Clutch

$4.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530014396

Kit-Clutch Assy.

$

$

Not available

6

Electrolux/AYP 530056069

Assy-Drum

$36.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530071931

Assy-Gear Box

Note: (incl.# 9-11,13,17,22)

$

$

Not available

8

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, Qty 17

0

9

Electrolux/AYP 530016013

Bearing-Gear

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530096009

Assy-Pinion

$24.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

12

Electrolux/AYP 530032121

Bushing-Blade

$

$

Not available

13

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 9

0

14

Electrolux/AYP 530036046

Plate-Isolator

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 530016472

Screw

$6.49

$

In Stock, Qty 5

0

18

Electrolux/AYP 530029916

Cover-Gear Box Plate

$6.49

$

In Stock, only 2 left!

0

19

Electrolux/AYP 530071690

Kit-Drive Gear Ass'y.

Note: (Incl. #12)

$

$

Not available

20

Electrolux/AYP 530029948

Seal-Blade (Felt)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530403229

Assy-Blade 22"

$

$

Not available

22

Electrolux/AYP 545009101

Nut

$

$

Not available

23

Electrolux/AYP 530029946

Spring

$3.99

$

In Stock, only 4 left!

0

24

Electrolux/AYP 530014871

Assy-Fuel Cap
(Superseded to 577858601)

$7.49

$

In Stock, Qty 7

0

25

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 530053900

Lockout-Throttle

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 545008001

Kit-Handle Cover

$

$

Not available

29

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 9

0

30

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

31

Electrolux/AYP 530057818

Lever-Trigger

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530036123

Spring-Trigger

$3.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 530053884

Trigger

$3.99

$

In Stock, only 3 left!

0

34

Electrolux/AYP 530094992

Handle-Front

$

$

Not available

35

Electrolux/AYP 530015955

Screw

$3.99

$

Usually ships in 3-10 days

0
