GLT 770 - Poulan String Trimmer CARBURETOR ASSEMBLY Parts Diagram

String Trimmer

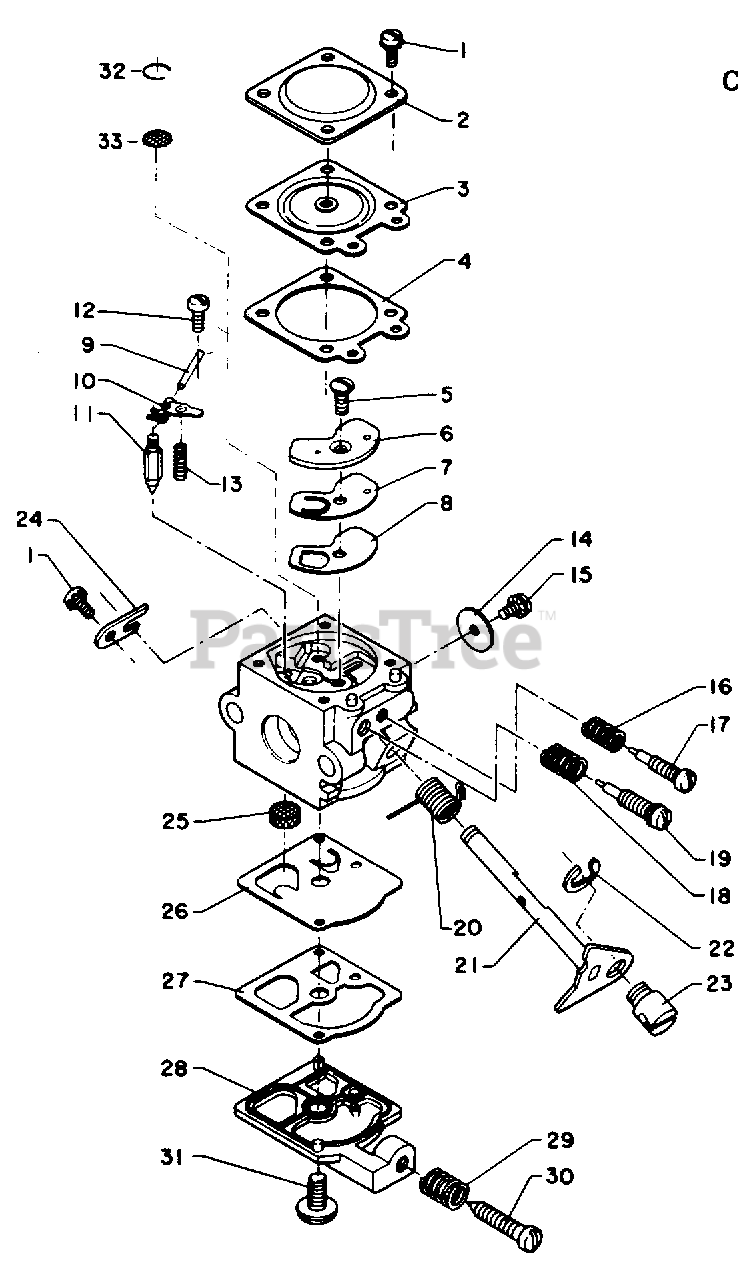

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Poulan 530035021

Screw & lock washer

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530035003

Metering diaphragm cover

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530035014

Metering diaphragm
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

4

Poulan 530035055

Metering diaphragm gasket

$

$

Not available

5

Poulan 530035084

Circuit plate screw

$

$

Not available

6

Poulan 530035056

Circuit plate

$

$

Not available

7

Poulan 530035057

Circuit diaphragm

$

$

Not available

8

Poulan 530035058

Circuit plate gasket

$

$

Not available

9

Poulan 530035028

Metering lever pin
(Superseded to 505520125)

$3.49

$

In Stock, only 3 left!

0

10

Poulan 530035031

Metering lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

11

Poulan 530035008

Inlet needle valve

$

$

Not available

12

Poulan 530035016

Metering lever pin screw

$3.49

$

In Stock, Qty 6

0

13

Poulan 530035086

Metering lever spring

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530035082

Throttle valve

$

$

Not available

15

Poulan 530035015

Shutter screw

$

$

Not available

16

Poulan 530035023

I. needle adjust spring
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

17

Poulan 530035087

Idle needle

$

$

Not available

18

Poulan 530035061

H.S. needle adjust spring

$

$

Not available

19

Poulan 530035085

H.S. needle

$

$

Not available

20

Poulan 530035024

Throttle return spring

$

$

Not available

21

Poulan 530035079

Throttle shaft

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 530035067

Swivel clip

$

$

Not available

23

Poulan 530035066

Swivel

$

$

Not available

24

Poulan 530035065

Throttle shaft clip

$

$

Not available

25

Poulan 530035069

Inlet screen

$

$

Not available

26

Poulan 530035083

Pump diaphragm

$

$

Not available

27

Poulan 530035009

Pump gasket

$

$

Not available

28

Poulan 530035078

Pump cover

$7.49

$

Usually ships in 3-10 days

0

29

Poulan 530035072

Idle adjust spring

$

$

Not available

30

Poulan 530035073

Idle adjust screw

$

$

Not available

31

Poulan 530035017

Pump cover screw

$0.99

$

Usually ships in 3-10 days

0

Poulan 530035075

Carburetor Assembly (inc.1 -31)

$

$

Not available

32

Poulan 530035076

Ring - Screen Retainer

$

$

Not available

33

Poulan 530035089

Screen - Check Valve

$

$

Not available

Poulan 530035091

Kit - Kwik Repair

$27.99

$

Usually ships in 3-10 days

0

Poulan 530035093

Kit - Gasket & Diaphragm Kit

$

$

Not available
