GLT 770 - Poulan String Trimmer TRIMMER ASSEMBLY Parts Diagram

String Trimmer

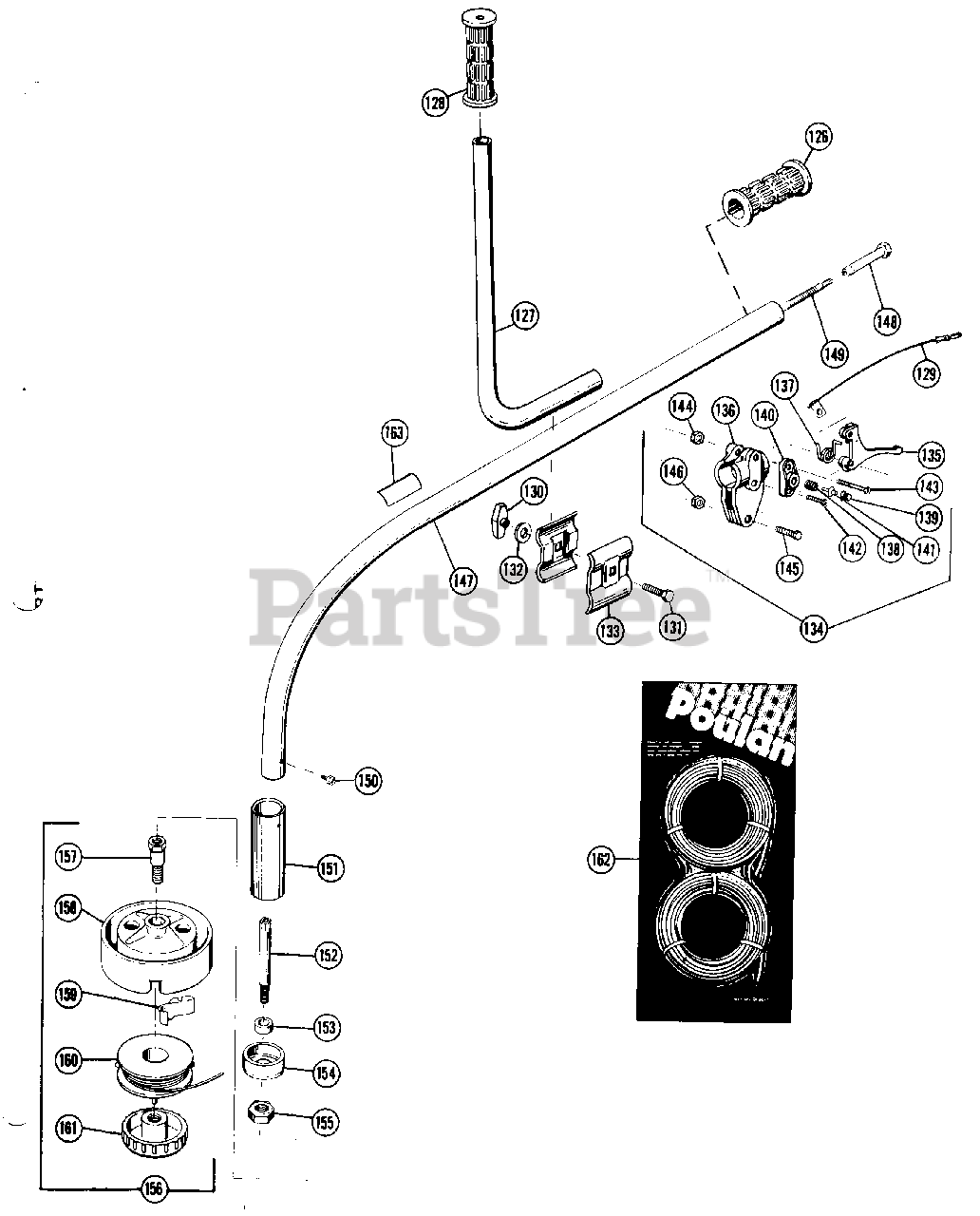

TRIMMER ASSEMBLY Parts Diagram

  • Title

126

Poulan 530091809

Grip-drive shaft

$

$

Not available

127

Poulan 530092076

Handle bar w/grip

$

$

Not available

128

Poulan 530091402

Grip-handle bar

$

$

Not available

129

Poulan 530091817

Lead wire switch

$

$

Not available

130

Poulan 530091339

Knob-handle bar clamp

$

$

Not available

131

Poulan 530091342

Bolt-clamp

$

$

Not available

132

Poulan 530091341

Washer-clamp

$

$

Not available

133

Poulan 530091338

Clamp-handle

$

$

Not available

134

Poulan 530092075

Throttle control - assembly (inc.135-146)

$

$

Not available

135

Poulan 530091791

Trigger

$

$

Not available

136

Poulan 530091788

Housing

$

$

Not available

137

Poulan 530091796

Spring-trigger

$

$

Not available

138

Poulan 530091793

Spring-switch

$

$

Not available

139

Poulan 530091794

Buttons

$

$

Not available

140

Poulan 530091795

Cap

$

$

Not available

141

Poulan 530091805

Stud

$

$

Not available

142

Poulan 530091731

Screw-cap

$

$

Not available

143

Poulan 530091798

Screw-housing clamp

$

$

Not available

144

Poulan 530091799

Nut-housing clamp

$

$

Not available

145

Poulan 530091797

Screw-trigger

$

$

Not available

146

Poulan 530091799

Nut-trigger

$

$

Not available

147

Poulan 530091812

Drive shaft assy.

$

$

Not available

148

Poulan 530091779

Upper coupling

$

$

Not available

149

Poulan 530091367

Flexible drive shaft

$

$

Not available

150

Poulan 530091731

Screw-bearing housing

$

$

Not available

151

Poulan 530091989

Bearing housing assy.

$

$

Not available

152

Poulan 530091787

Arbor shaft

$

$

Not available

153

Poulan 530091785

Spacer

$

$

Not available

154

Poulan 530091786

Dust cap

$

$

Not available

155

Poulan 530091822

Nut

$

$

Not available

156

Poulan 530091324

Cutting head assembly (inc.157-161)

$

$

Not available

157

Poulan 530091417

Bolt drive adaptor

$

$

Not available

158

Poulan 530091418

Hub

$

$

Not available

159

Poulan 530091419

Line saver

$3.99

$

Usually ships in 3-10 days

0

160

Poulan 530091421

Cutting head spool w/line

$

$

Not available

161

Poulan 530091422

Ball lock

$

$

Not available

162

Poulan 530091728

Cutting line skin pack

$

$

Not available

163

Poulan 530024226

Label/decal

$

$

Not available
