GLT 900 - Poulan String Trimmer TRIMMER ASSEMBLY Parts Diagram

String Trimmer

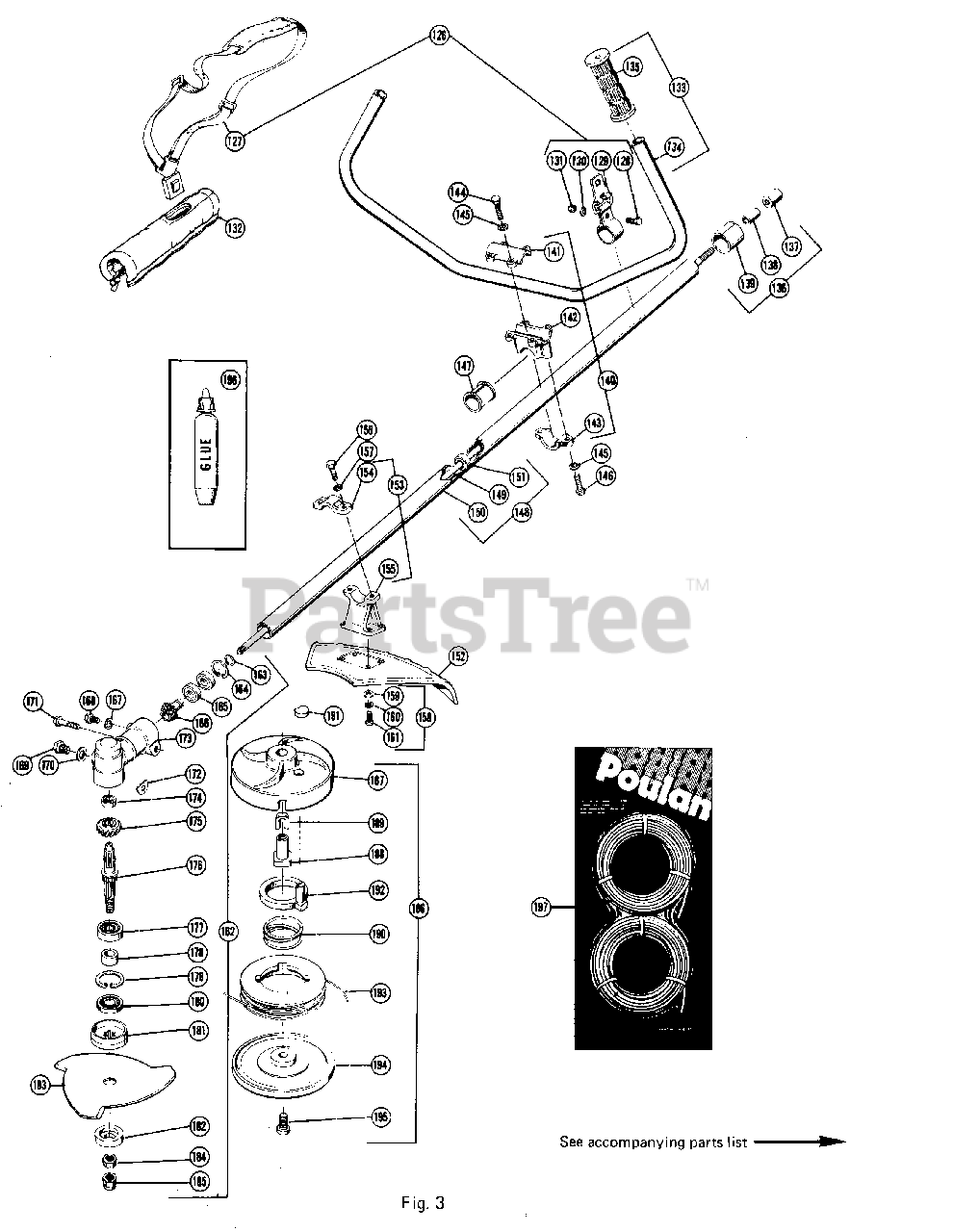

TRIMMER ASSEMBLY Parts Diagram

  • Title

126

Poulan 530091567

Shoulder strap assembly (inc.127-131)

$

$

Not available

127

Poulan 530091607

Strap

$

$

Not available

128

Poulan 530091608

Bolt

$

$

Not available

129

Poulan 530091609

Clamp

$

$

Not available

130

Poulan 530091611

Washer

$

$

Not available

131

Poulan 530091612

Nut

$

$

Not available

132

Poulan 530091566

Cover

$

$

Not available

133

Poulan 530091382

Handle bar assembly (inc.134-135)

$

$

Not available

134

Poulan 530091597

Handle bar

$

$

Not available

135

Poulan 530091564

Grips

$

$

Not available

136

Poulan 530091563

Drive shaft adapter kit (inc.137-139)

$

$

Not available

137

Poulan 530091617

Drive shaft

$

$

Not available

138

Poulan 530091618

Drive shaft adapter screw

$

$

Not available

139

Poulan 530091619

Drive shaft adapter spacer

$

$

Not available

140

Poulan 530091565

Handle bar clamp assembly (inc.141-143)

$

$

Not available

141

Poulan 530091602

Handle bar clamp top

$

$

Not available

142

Poulan 530091681

Handle bar clamp middle

$

$

Not available

143

Poulan 530091682

Handle bar clamp bottom

$

$

Not available

144

Poulan 530091603

Bolt, top

$

$

Not available

145

Poulan 530091604

Washer

$

$

Not available

146

Poulan 530091605

Bolt, bottom

$

$

Not available

147

Poulan 530091621

Spacer, bar clamp

$

$

Not available

148

Poulan 530091561

Drive shaft housing complete (inc.149-151)

$

$

Not available

149

Poulan 530091562

Drive shaft

$

$

Not available

150

Poulan 530091599

Drive shaft housing

$

$

Not available

151

Poulan 502091601

Bearing

$15.99

$

Usually ships in 3-10 days

0

152

Poulan 530091568

Shield

$

$

Not available

153

Poulan 530091569

Shield mounting bracket ass'y (inc.154-155)

$

$

Not available

154

Poulan 530091613

Shield mounting bracket top

$

$

Not available

155

Poulan 530091614

Shield mounting bracket bottom

$

$

Not available

156

Poulan 530091616

Bolt

$

$

Not available

157

Poulan 530091615

Washer

$

$

Not available

158

Poulan 530091572

Shield mounting kit (inc.159-161/4 each)

$

$

Not available

159

Poulan 530091622

Washer, flat

$

$

Not available

160

Poulan 530091623

Washer, lock

$

$

Not available

161

Poulan 530091624

Screw

$

$

Not available

162

Poulan 530091559

Transmission ass'y (inc.163-185/except 183)

$

$

Not available

163

Poulan 530091573

Snap ring, gear housing

$

$

Not available

164

Poulan 530091574

Snap ring, gear housing bearing

$

$

Not available

165

Poulan 530091575

Bearing, pinion gear

$

$

Not available

166

Poulan 530091576

Pinion, gear

$

$

Not available

167

Poulan 530091578

Lock washer, housing bolt

$

$

Not available

168

Poulan 530091579

Bolt

$

$

Not available

169

Poulan 530091581

Oil hole plug

$

$

Not available

170

Poulan 530091582

Washer

$

$

Not available

171

Poulan 530091583

Housing bolt

$

$

Not available

172

Poulan 530091584

Fiber-filler washer

$

$

Not available

173

Poulan 530091585

Housing, gear box

$

$

Not available

174

Poulan 530091586

Bearing, gear box

$

$

Not available

175

Poulan 530091587

Gear, bevel

$

$

Not available

176

Poulan 530091588

Shaft

$

$

Not available

177

Poulan 530091598

Ball bearing

$

$

Not available

178

Poulan 530091591

Collar, shaft

$

$

Not available

179

Poulan 530091592

Snap ring

$

$

Not available

180

Poulan 530091589

Oil seal

$

$

Not available

181

Poulan 530091593

Gear housing upper plate

$

$

Not available

182

Poulan 530091594

Gear housing lower plate

$

$

Not available

183

Poulan 530091405

Tri-cut blade

$

$

Not available

184

Poulan 530091595

Nut, plate

$

$

Not available

185

Poulan 530091596

Cap-nut

$

$

Not available

186

Poulan 530091377

Cutting head assembly (inc.187-195)

$

$

Not available

187

Poulan 530091656

Hub

$21.99

$

Usually ships in 3-10 days

0

188

Poulan 530091423

Drive adapter

$

$

Not available

189

Poulan 530091425

Line saver

$

$

Not available

190

Poulan 530091657

Spring

$

$

Not available

191

Poulan 530091659

Button-release

$

$

Not available

192

Poulan 530091658

Lock ring, cutting

$

$

Not available

193

Poulan 530091661

Spool, w/line

$

$

Not available

194

Poulan 530091424

Cover, cutting head

$

$

Not available

195

Poulan 530091662

Cover screw

$

$

Not available

197

Poulan 530091728

Cutting line skin pak

$

$

Not available
