GM 21506 - Green Machine String Trimmer, 26cc Figure A Parts Diagram

String Trimmer, 26cc

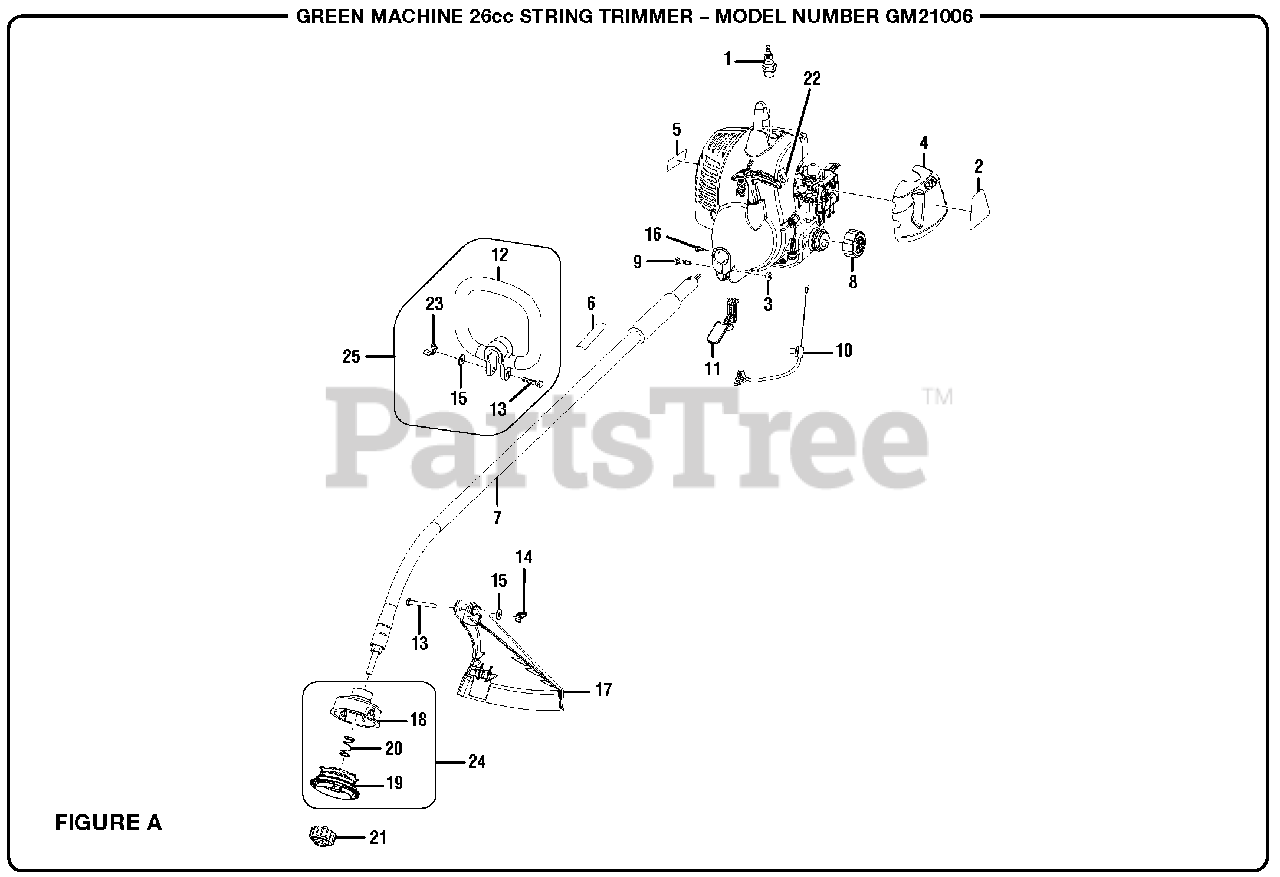

Figure A Parts Diagram

  • Title

1

Homelite 870174001

Spark Plug (Champion RCJ6Y)

$4.99

$

In Stock, Qty 20+

0

2

Homelite 941715001

Starting Label

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 678029002

Hex Nut (M6)

$1.49

$

In Stock, Qty 9

0

4

Homelite 518777005

Airbox Cover

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 940654088

Combustion Warning Label

$1.49

$

In Stock, only 3 left!

0

6

Homelite 940642020

Warning Label

$

$

Not available

7

Homelite 000998357

Boom Assembly

Note: (Inc Key No 6)

$

$

Not available

8

Homelite 310817004

Fuel Cap

$2.99

$

In Stock, Qty 20+

0

9

Homelite 660697002

Bolt (M6 x 20 mm)

$1.49

$

In Stock, only 1 left!

0

10

Homelite 270032001

Throttle Cable

$1.99

$

In Stock, only 1 left!

0

11

Homelite 518529005

Throttle Trigger

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 518674001

Handle

$4.49

$

Usually ships in 3-7 days

0

13

Homelite 660643008

Bolt (1/4-20 x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 678034001

Wing Nut (1/4-20)

$1.49

$

In Stock, Qty 7

0

15

Homelite 678008001

Washer

$1.49

$

In Stock, only 1 left!

0

16

Homelite 660634001

Screw (8-16 x 5/16 in)

$1.49

$

In Stock, Qty 20+

0

17

Homelite T308744001

Curved Shaft Grass Deflector

Note: (Incl Key Nos 13-15)

$

$

Not available

18

Homelite 310643001

String Head Housing
(Superseded to 310643004)

$3.49

$

In Stock, Qty 5

0

19

Homelite 310412001

Spool
(Superseded to 312223001)

$

$

Not available

20

Homelite 678022001

Spring
(Superseded to 099068001004)

$1.49

$

In Stock, only 3 left!

0

21

Homelite 308042002

Spool Retainer

$

$

Not available

22

Homelite 760700002

Switch
(Superseded to 760700001)

$2.99

$

In Stock, Qty 5

0

23

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$1.49

$

In Stock, only 3 left!

0

24

Homelite 308562001

String Head Assembly

Note: (Inc Key Nos 18-20)

$

$

Currently unavailable

25

Homelite 308741001

Handle Assembly

Note: (Inc Key Nos 12, 13, 15 and 23)

$7.49

$

In Stock, only 1 left!

0
