GM 22000 - Green Machine String Trimmer, 26cc Figure A Parts Diagram

String Trimmer, 26cc

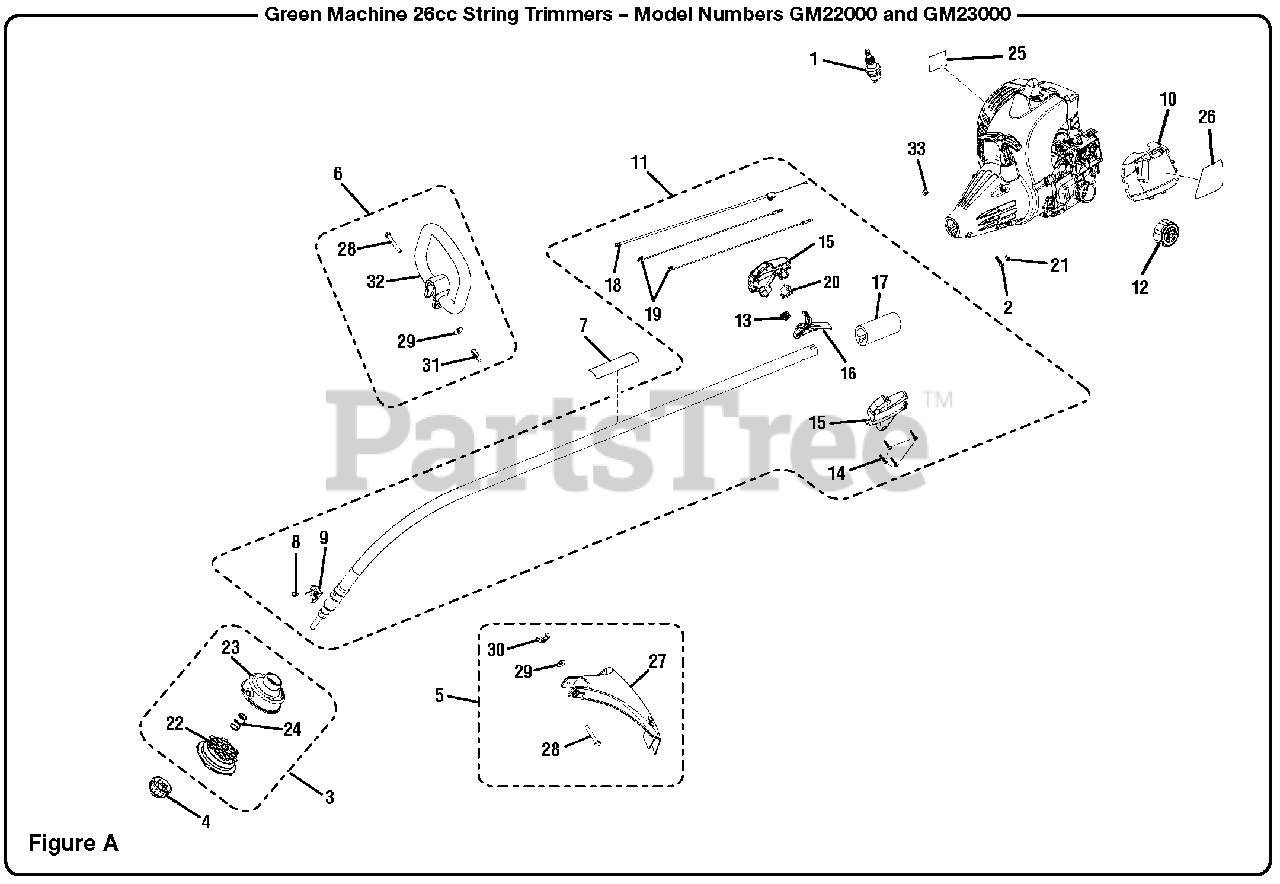

Figure A Parts Diagram

  • Title

1

Homelite 870174001

Spark Plug (Champion RCJ6Y)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$4.49

$

In Stock, Qty 20+

0

2

Homelite 660697002

Screw (M6 x 20 mm)

$2.49

$

In Stock, only 4 left!

0

3

Homelite 309562001

String Head Assembly
(Superseded to 309562007)

$

$

Not available

4

Homelite 308042002

Spool Retainer

$

$

Not available

5

Homelite 308744001

Grass Deflector Assembly
(Superseded to T308744001)

$

$

Not available

6

Homelite 308741001

Front Handle Assembly

$14.99

$

Usually ships in 3-7 days

0

7

Homelite 940964009

Icon Strip
(Superseded to 940964039)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 660647001

Screw (10-32 x 3/8 in.)

$2.49

$

In Stock, Qty 10

0

9

Homelite 638001001

Clamp

$2.49

$

In Stock, only 4 left!

0

10

Homelite 518777005

Air Box Cover

$

$

Not available

11

Homelite 310827004

Boom Assembly

$

$

Not available

12

Homelite 310817004

Fuel Cap

$2.99

$

In Stock, Qty 8

0

13

Homelite 690694002

Spring

$2.49

$

In Stock, only 3 left!

0

14

Homelite 660563002

Screw (M4 x 20 mm)

$2.49

$

In Stock, Qty 13

0

15

Homelite 308061017

Handle Assembly

$

$

Not available

16

Homelite 518696009

Throttle Trigger

$

$

Not available

17

Homelite 570087005

Foam Grip

$2.49

$

In Stock, Qty 10

0

18

Homelite 308842006

Throttle Cable

$

$

Not available

19

Homelite 290735002

Electrical Lead

$

$

Not available

20

Homelite 760700002

Switch
(Superseded to 760700001)

$5.49

$

In Stock, only 2 left!

0

21

Homelite 660634001

Screw (8-16 x 5/16 in.)

$2.49

$

In Stock, Qty 20+

0

22

Homelite 310412001

Spool
(Superseded to 312223001)

$

$

Not available

23

Homelite 310643001

String Head Housing
(Superseded to 310643004)

$10.99

$

In Stock, only 2 left!

0

24

Homelite 678022001

Spring
(Superseded to 099068001004)

$2.49

$

In Stock, Qty 5

0

25

Homelite 940654088

Combustion Warning Label

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 941715001

Starting Label

$1.49

$

Usually ships in 3-7 days

0

27

Homelite 308052001

Grass Deflector
(Superseded to T308744001)

$

$

Not available

28

Homelite 660643009

Bolt (1/4-20 x 2 in.)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 678008001

Washer

$2.49

$

In Stock, only 1 left!

0

30

Homelite 678034001

Wing Nut (1/4-20)

$2.49

$

In Stock, Qty 7

0

31

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 2 left!

0

32

Homelite 518674001

Front Handle

$8.99

$

Usually ships in 3-7 days

0

33

Homelite 678029002

Hex Nut (M6)

$2.49

$

In Stock, only 4 left!

0

Homelite 988000940

Operator's Manual

$

$

Not available
