GM 22600 - Green Machine String Trimmer, 26cc Figure B Parts Diagram

String Trimmer, 26cc

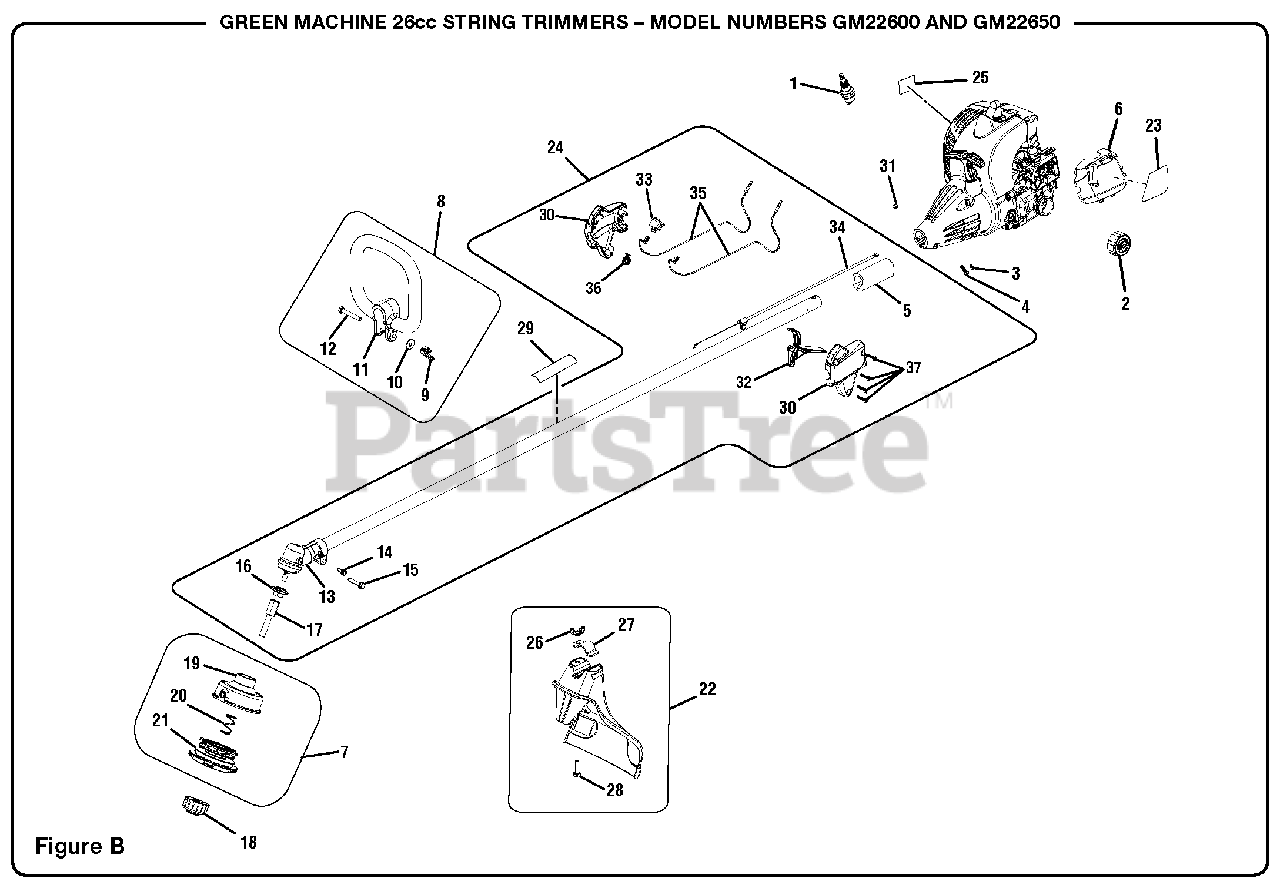

Figure B Parts Diagram

  • Title

1

Homelite 870174001

Spark Plug (Champion RCJ6Y)

Note: Standard Hardware Item – May Be Purchased Locally

$4.99

$

In Stock, Qty 20+

0

2

Homelite 310817004

Fuel Cap

$2.99

$

In Stock, Qty 20+

0

3

Homelite 660634001

Screw (8-16 x 5/16 in)

$1.49

$

In Stock, Qty 20+

0

4

Homelite 660697002

Screw (M6 x 20 mm)

$1.49

$

In Stock, only 1 left!

0

5

Homelite 570087005

Rubber Grip

$1.49

$

In Stock, only 3 left!

0

6

Homelite 518777005

Air Box Cover

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 309562001

String Head Assembly
(Superseded to 309562007)

$

$

Not available

8

Homelite 308741001

Front Handle Assembly

$7.49

$

In Stock, only 1 left!

0

9

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$1.49

$

In Stock, only 3 left!

0

10

Homelite 678008001

Washer

$1.49

$

In Stock, only 1 left!

0

11

Homelite 518674001

Front Handle

$4.49

$

Usually ships in 3-7 days

0

12

Homelite 660643009

Bolt (1/4-20 x 2 in)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 308210002

Gear Head
(Superseded to 308210009)

$28.99

$

Usually ships in 3-7 days

0

14

Homelite 660641001

Screw (10-25 x 5/16 in)

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 660642001

Screw (1/4-20 x 125 in)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 678011002

Flange Washer

$

$

Not available

17

Homelite 678019003

Adaptor
(Superseded to 678019001)

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 308042003

Spool Retainer

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 310643001

String Head Housing
(Superseded to 310643004)

$3.49

$

In Stock, Qty 5

0

20

Homelite 678022001

Spring
(Superseded to 099068001004)

$1.49

$

In Stock, only 4 left!

0

21

Homelite 310412001

Spool
(Superseded to 312223001)

$

$

Not available

22

Homelite 308781001

Grass Deflector Assembly

Note: (Incl Key Nos 26-28)

$

$

Not available

23

Homelite 941715001

Starting Label

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 310828003

Boom Assembly

$

$

Currently unavailable

25

Homelite 940654088

Combustion Warning Label

$1.49

$

In Stock, only 3 left!

0

26

Homelite 678034001

Wing Nut (1/4-20)

$1.49

$

In Stock, Qty 7

0

27

Homelite 678436001

Bracket

$1.49

$

In Stock, only 2 left!

0

28

Homelite 660857001

Bolt (Square Head)
(Superseded to PS02435)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 940964009

Icon Strip
(Superseded to 940964039)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 308061017

Handle Assembly

$

$

Not available

31

Homelite 678029002

Hex Nut (M6)

$1.49

$

In Stock, Qty 9

0

32

Homelite 518696009

Throttle Trigger

$

$

Not available

33

Homelite 760700002

Switch
(Superseded to 760700001)

$2.99

$

In Stock, Qty 5

0

34

Homelite 308842006

Throttle Cable

$

$

Not available

35

Homelite 290735002

Electrical Lead

$

$

Not available

36

Homelite 690694002

Trigger Spring

$1.49

$

In Stock, only 4 left!

0

37

Homelite 660563002

Screw (M4 x 20 mm)

$1.49

$

In Stock, Qty 6

0
