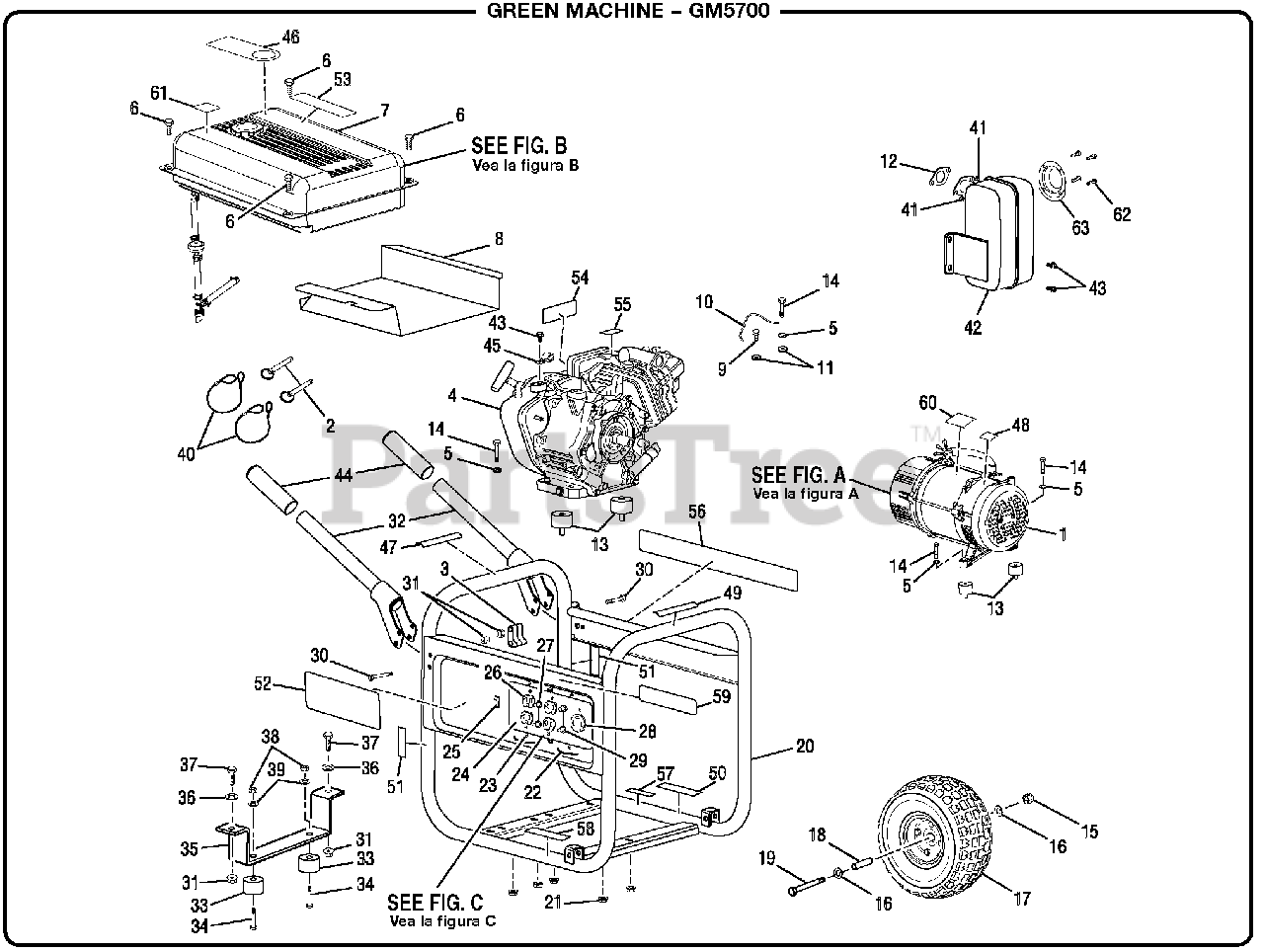

GM 5700 - Green Machine 5,700 Watt Generator General Assembly Parts Diagram

5,700 Watt Generator

General Assembly Parts Diagram

  • Title

1

Homelite 310227025

Generator Head Assembly (See Figure A)
(Superseded to 310227016)

$533.99

$

In Stock, only 1 left!

0

2

Homelite 310712001

Handle Lock Pin

$1.99

$

In Stock, Qty 5

0

3

519728001

Handle Bracket Spacer

$

$

Not available

4

Engine (Yamaha OHV)

Note: OWT Industries, Inc., will not provide engines as replacement parts. Engines are covered through the engine manufacturer's warranty. Consult the accompanying engine manual or contact our service department for assistance.

$

$

Not available

5

Homelite 638678002

Lock Washer (5/16 in.)

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 661503005

Screw (1/4-20 x 1 in.)

$1.49

$

In Stock, only 2 left!

0

7

Homelite 310711023

Fuel System Assembly (See Figure B)

$

$

Not available

8

Homelite 638497001

Heat Shield

$

$

Not available

9

Homelite 661502005

Bolt (5/16-18 x 3/4 in., Hex. Hd.)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 290404001

Ground Wire Assembly

$

$

Not available

11

Homelite 638704001

Washer (5/16 in., External Star)

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 638499002

Gasket

$

$

Currently unavailable

13

Homelite 570356001

Isolator

$

$

Not available

14

Homelite 660591006

Bolt (5/16-18 x 1 1/2 in., Hex Hd.)

$1.49

$

In Stock, only 3 left!

0

15

Homelite 678659001

Lock Nut (3/8-16)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 638386003

Washer (3/8 in.)

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 308451010

Wheel (10 in.)

$

$

Not available

18

Homelite 638498001

Wheel Spacer

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 638326005

Bolt (3/8-16 x 5-1/4 in.)

$

$

Not available

20

Homelite 310222019

Frame Assembly

$

$

Not available

21

Homelite 678145002

Flange Nut (5/16-18, Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 678655001

Cord Retainer

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 660598001

Screw (6-20 x 0.38 in.)

$1.99

$

In Stock, only 3 left!

0

24

Homelite 290403016

Control Panel Assembly (See Figure C)

$

$

Currently unavailable

25

Homelite 760504002

Switch, Engine Stop

$

$

Not available

26

Homelite 290400001

Recepticle (120 V, 20 Amp)

$

$

Not available

27

Homelite 780350001

Circuit Breaker 20 Amp Single Pole

$8.49

$

In Stock, only 1 left!

0

28

Homelite 290401001

Recepticle (240 V, 30 Amp)

$15.99

$

In Stock, only 2 left!

0

29

Homelite 780350003

Circuit Breaker 25 Amp Single Pole

$

$

Not available

30

Homelite 661503005

Bolt (1/4-20 x 1 in.)

$1.49

$

In Stock, only 2 left!

0

31

Homelite 678259003

Lock Nut (5/16-18)

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 310224013

Handle Assembly (Inc. Key No. 44)

$

$

Not available

33

Homelite 570355001

Rubber Foot

$

$

Not available

34

Homelite 661503003

Bolt (1/4-20 x 1/2 in.)

$1.99

$

In Stock, only 4 left!

0

35

Homelite 638706001

Front Foot Bracket

$10.99

$

Usually ships in 3-7 days

0

36

Homelite 638675004

Washer (5/16 in.)
(Superseded to 638675003)

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 660599001

Bolt (5/16-18 x 1 in., Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 678656001

Lock Nut (1/4-20)

$

$

Not available

39

Homelite 638387002

Washer (1/4 in.)

$

$

Not available

40

Homelite 310715001

Lanyard

$

$

Not available

41

Homelite 678654001

Nut (M8)

$

$

Currently unavailable

42

Homelite 309322002

Muffler

$

$

Not available

43

Homelite 660599002

Bolt (5/16-24 x 5/8 in.)

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 570357001

Handle Grip
(Superseded to 310224002)

$

$

Not available

45

Homelite 519729001

J Clamp (1/2 in.)

$

$

Not available

46

Homelite 940971059

Danger Hang Tag

$

$

Not available

47

Homelite 940974004

Fire Danger Label

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 940513010

Ground Label

$

$

Not available

49

Homelite 940513009

Ground Warning Label

$

$

Not available

50

Homelite 940680036

Hot Surface Label

$

$

Not available

51

Homelite 940514008

Lock Pin Label

$3.49

$

Usually ships in 3-7 days

0

52

Homelite 940040018

Logo Label

$

$

Not available

53

Homelite 940515019

CPSC Label

$

$

Currently unavailable

54

Homelite 940617023

Start Label

$

$

Not available

55

Homelite 940647035

Choke Label

$

$

Not available

56

Homelite 940707005

Danger Label

$

$

Not available

57

Homelite 940654088

Combustion Warning Label

$1.49

$

In Stock, only 3 left!

0

58

Homelite 940708006

Engine Lubricant Label

$

$

Not available

59

Homelite 940608002

Yamaha Label

$

$

Not available

60

Homelite 940678161

Data Label

$

$

Currently unavailable

61

Homelite 940872001

E85 Label

$

$

Not available

62

Homelite 661306001

Screw (8-32 x 3/8 in., Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

63

Homelite 638147003

Spark Arrestor

$

$

Not available

Homelite 901606029

Lubricant (SAE 10W30)

Note: (Not Shown)

$11.99

$

Usually ships in 3-7 days

0

Homelite 988000005

Operator's Manual

Note: (Not Shown)

$

$

Currently unavailable
