GM2513H (3070101) - Giant-Vac 25" Walk-Behind Mower, 13hp MOWER DECK PARTS GROUP Parts Diagram

25" Walk-Behind Mower, 13hp

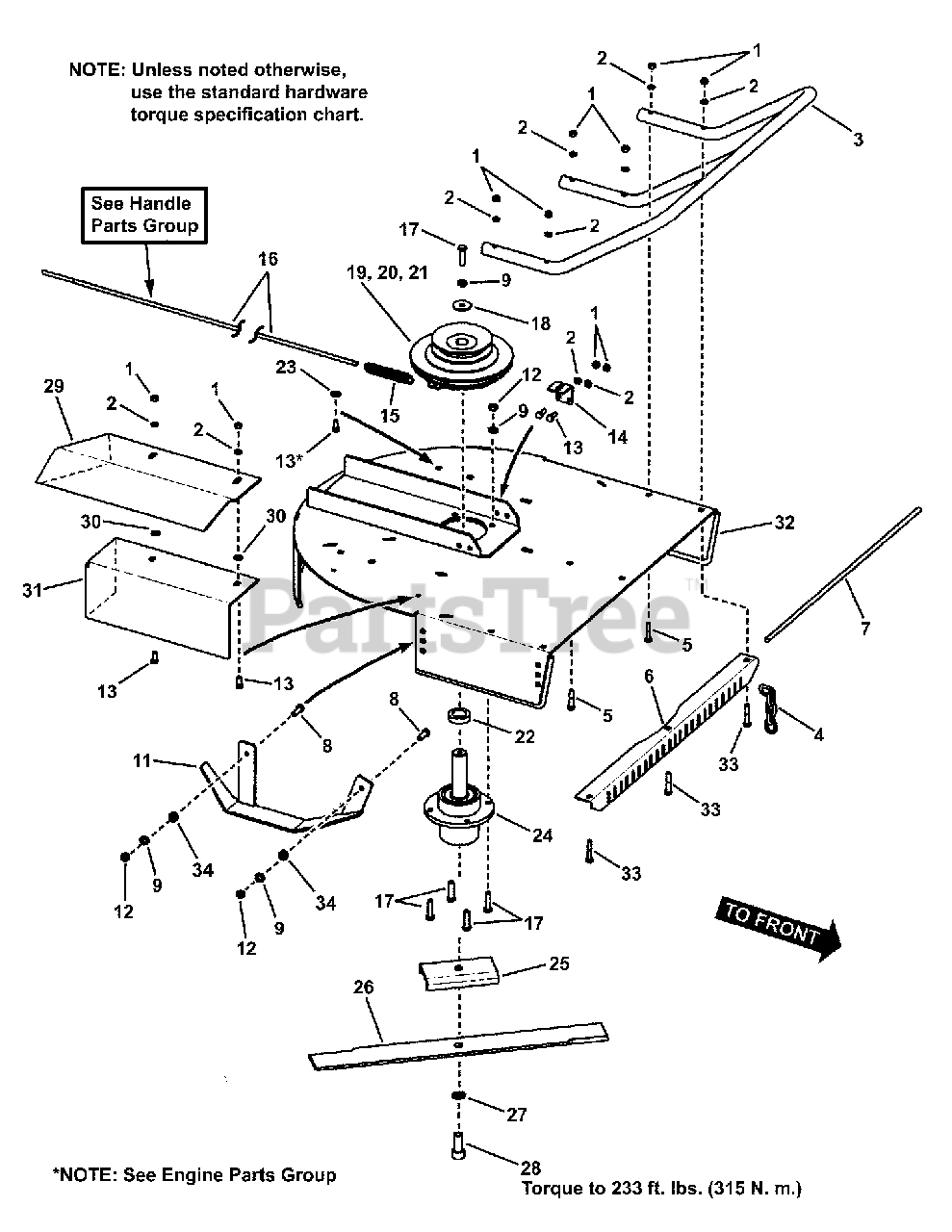

MOWER DECK PARTS GROUP Parts Diagram

  • Title

1

Giant-Vac 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Giant-Vac 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Giant-Vac 1723532

WELDMENT, Front Bumper
(Superseded to 1723532SM)

$

$

Not available

4

Giant-Vac 1723533

CHAIN CURTAIN
(Superseded to 1723533SM)

$2.99

$

Usually ships in 2-12 days

0

5

Giant-Vac 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

Note: for bumper rear holes

$4.99

$

In Stock, Qty 7

0

6

Giant-Vac 1723534

BRACKET, Chain Curtain
(Superseded to 1723534SM)

$55.99

$

Usually ships in 2-12 days

0

7

Giant-Vac 1723535

ROD, Chain Curtain Mounting
(Superseded to 1723535SM)

$12.99

$

Usually ships in 2-12 days

0

8

Giant-Vac 7091304

SCREW, 3/8-16 x 1 Hex Head Cap, GR 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

9

Giant-Vac 7091320

WASHER, .38 x .68 x .09 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

10

Giant-Vac 1723536

LEFT SKID, Blade Deck (weldment)
(Superseded to 1723536SM)

Note: not shown

$237.99

$

Usually ships in 2-12 days

0

11

Giant-Vac 1723537

RIGHT SKID, Blade Deck (weldment)
(Superseded to 1723537SM)

$237.99

$

In Stock, only 1 left!

0

12

Giant-Vac 7091302

NUT, 3/8-16 Hex, GR 5 or B
(Superseded to 7091302SM)

$4.49

$

In Stock, Qty 8

0

13

Giant-Vac 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

14

Giant-Vac 1723538

BRACKET, Anti-Torque
(Superseded to 1723538SM)

$13.99

$

Usually ships in 2-12 days

0

15

Giant-Vac 1723657

SPRING, Clutch
(Superseded to 1723657SM)

$11.99

$

Usually ships in 2-12 days

0

16

Giant-Vac 1723539

ROD, Blade Clutch Engagement (5/16-18 threaded)
(Superseded to 1723539SM)

$11.99

$

Usually ships in 2-12 days

0

17

Giant-Vac 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, Qty 6

0

18

Giant-Vac 3031409

WASHER, 7/16 I.D. x 1-1/2" Flat (Heavy Duty)

Note: this fastener furnished w/clutch

$

$

Currently unavailable

19

Giant-Vac 1723540

ASSEMBLY, Clutch Brake
(Superseded to 1723540SM)

Note: (Noram part no. CB84S)

$530.99

$

Usually ships in 2-12 days

0

20

Giant-Vac 7090209

SCREW, 5/16-18 x 1" Hex Head Cap
(Superseded to 7090209YP)

Note: this fastener furnished w/clutch

$2.99

$

Usually ships in 2-12 days

0

21

Giant-Vac 7091298

NUT, 5/16-18 Hex Center Lock
(Superseded to 703902)

Note: this fastener furnished w/clutch

$3.99

$

In Stock, Qty 14

0

22

Giant-Vac 1723541

SPACER, Clutch
(Superseded to 1723541SM)

$9.49

$

Usually ships in 2-12 days

0

23

Giant-Vac 7090122

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Giant-Vac 1723542

ASSEMBLY, Blade Spindle
(Superseded to 1723542SM)

$461.99

$

Usually ships in 2-12 days

0

25

Giant-Vac 1723543

CHANNEL, Cutting Blade Reinforcement

$21.99

$

Usually ships in 2-12 days

0

26

Giant-Vac 1723544

CUTTING BLADE
(Superseded to 1723544BZYP)

$39.99

$

In Stock, only 1 left!

0

27

Giant-Vac 7090333

WASHER, 5/8" Split Lock
(Superseded to 7090333YP)

$3.99

$

Usually ships in 2-12 days

0

28

Giant-Vac 1725227

CAPSCREW, 5/8-11 x 1-1/2" Socket
(Superseded to 1725227SM)

$13.99

$

Usually ships in 2-12 days

0

29

Giant-Vac 1723546

DELFECTOR, Discharge (weldment)
(Superseded to 1723546SM)

$176.99

$

Usually ships in 2-12 days

0

30

Giant-Vac 7090188

WASHER, 5/16" SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

31

Giant-Vac 1723547

COVER, Discharge (weldment)
(Superseded to 1723547SM)

$75.99

$

Usually ships in 2-12 days

0

32

Giant-Vac 1723548

BLADE DECK
(Superseded to 1723548SM)

$

$

Not available

33

Giant-Vac 7091908

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 704288)

Note: for bumper front holes

$4.99

$

In Stock, only 2 left!

0

34

Giant-Vac 7028620

SPACER, .340 I.D. x .630 O.D. x .310 thick
(Superseded to 7028620SM)

$4.49

$

Usually ships in 2-12 days

0
