GM2516BVG (3800017) - Giant-Vac 25" Walk-Behind Mower, 16hp ENGINE DECK GROUP Parts Diagram

25" Walk-Behind Mower, 16hp

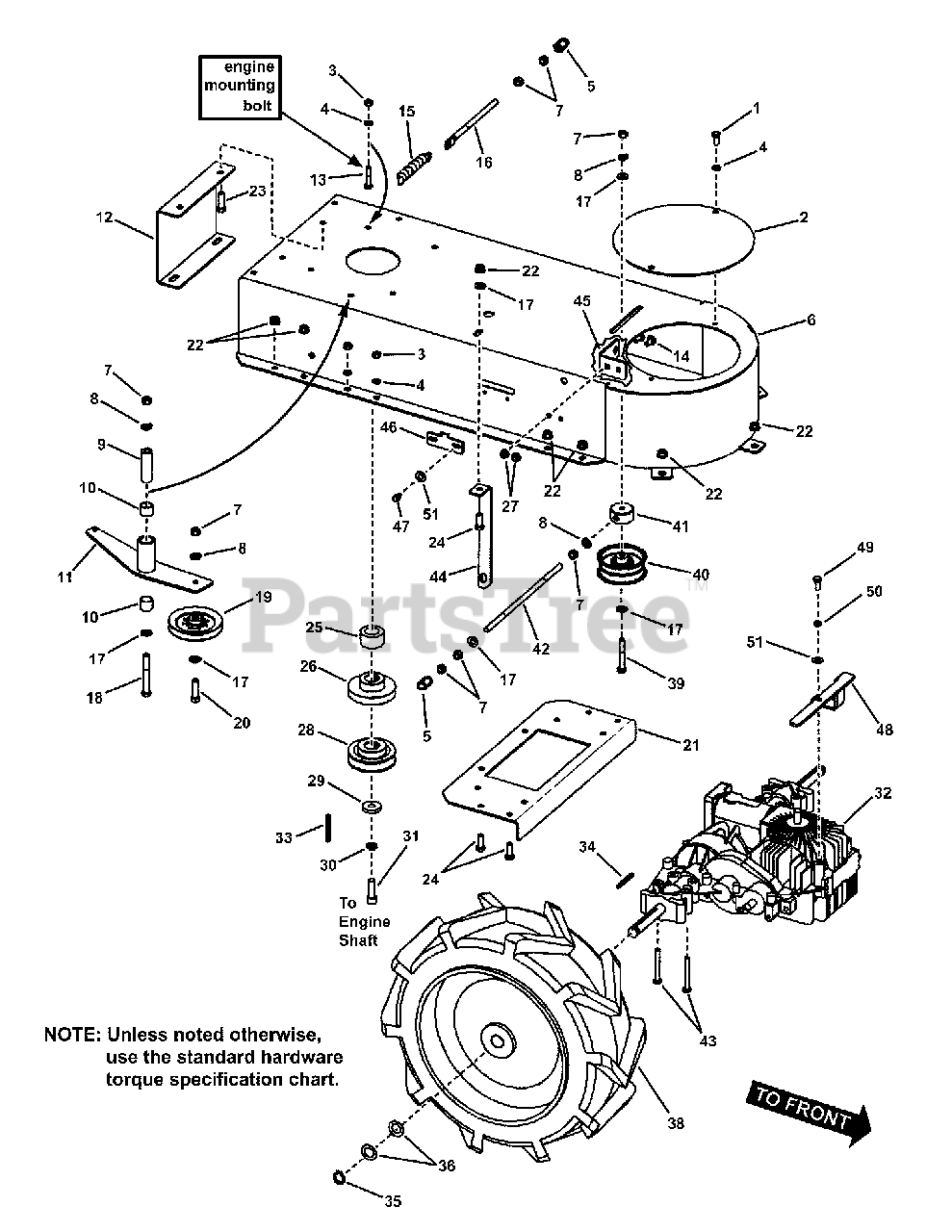

ENGINE DECK GROUP Parts Diagram

  • Title

1

Giant-Vac 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

2

Giant-Vac 1723549

PLATE, Clutch Cover
(Superseded to 1723549SM)

$32.99

$

Usually ships in 2-12 days

0

3

Giant-Vac 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Giant-Vac 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Giant-Vac 1704723

CAP, Black
(Superseded to 1704723SM)

$3.49

$

In Stock, only 1 left!

0

6

Giant-Vac 1723803

DECK, Engine (weldment)
(Superseded to 1723803SM)

$

$

Not available

7

Giant-Vac 7091302

NUT, 3/8-16 Hex, GR 5 or B
(Superseded to 7091302SM)

$4.49

$

In Stock, Qty 8

0

8

Giant-Vac 7091320

WASHER, .38 x .68 x .09 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

9

Giant-Vac 1723806

BOSS, Idler Arm Pivot
(Superseded to 1723806SM)

$70.99

$

Usually ships in 2-12 days

0

10

Giant-Vac 1723805

SLEEVE BUSHING, 3/4 ID
(Superseded to 1723805SM)

$12.99

$

In Stock, only 2 left!

0

11

Giant-Vac 1723804

IDLER ARM, Transmission (weldment)
(Superseded to 1723804SM)

$

$

Not available

12

Giant-Vac 1723592

COVER, Engine Back
(Superseded to 1723592SM)

$38.99

$

Usually ships in 2-12 days

0

13

Giant-Vac 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, Qty 7

0

14

Giant-Vac 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR 5
(Superseded to 703185)

Note: or 7090001

$3.49

$

In Stock, Qty 20+

0

15

Giant-Vac 1723807

SPRING, Idler
(Superseded to 1723807SM)

$10.99

$

Usually ships in 2-12 days

0

16

Giant-Vac 1723808

ROD, Idler Tension (3/8-16 thread)
(Superseded to 1723808SM)

$19.99

$

Usually ships in 2-12 days

0

17

Giant-Vac 7090122

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Giant-Vac 7092055

SCREW, 3/8-16 x 3-1/4" Hex Head Cap
(Superseded to 703874)

$4.49

$

In Stock, only 1 left!

0

19

Giant-Vac 1723583

PULLEY, Idler

$

$

Not available

20

Giant-Vac 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 15

0

21

Giant-Vac 1723591

PLATE, Lower Handle Mount
(Superseded to 1723591SM)

$142.99

$

Usually ships in 2-12 days

0

22

Giant-Vac 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: or 7090613

$4.99

$

In Stock, Qty 20+

0

23

Giant-Vac 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 703871)

$4.99

$

In Stock, only 2 left!

0

24

Giant-Vac 7091304

SCREW, 3/8-16 x 1 Hex Head Cap, GR 5
(Superseded to 703407)

$11.99

$

In Stock, Qty 5

0

25

Giant-Vac 1723585

SPACER, Engine Shaft
(Superseded to 1723585SM)

$11.99

$

Usually ships in 2-12 days

0

26

Giant-Vac 1723586

PULLEY, Blade Clutch Drive
(Superseded to 1723586SM)

$37.99

$

Usually ships in 2-12 days

0

27

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

28

Giant-Vac 1723588

PULLEY, Trans. Drive
(Superseded to 1723588SM)

$39.99

$

Usually ships in 2-12 days

0

29

Giant-Vac 7091807

WASHER, .468 x 1-3/8 x 1/4" Flat
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

30

Giant-Vac 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 7

0

31

Giant-Vac 1723589

CAPSCREW, 7/16-20 x 1-12" Socket Head
(Superseded to 1723589SM)

$

$

Not available

32

Giant-Vac 1723620

TRANSAXLE
(Superseded to 1723620SM)

$883.99

$

Usually ships in 2-12 days

0

33

Giant-Vac 1723590

KEY, 1/4 Square x 2-1/8" (engine shaft)
(Superseded to 1723590SM)

Note: (engine shaft)

$6.49

$

Usually ships in 2-12 days

0

34

Giant-Vac 7072386

KEY, 3/16 Square x 2-3/16"
(Superseded to 7072386YP)

$5.49

$

In Stock, only 1 left!

0

35

Giant-Vac 7010746

RETAINING RING, 3/4" External
(Superseded to 703975)

Note: Waldes 5160-75

$3.99

$

In Stock, Qty 20+

0

36

Giant-Vac 7031965

WASHER, 3/4 I.D. Thrust
(Superseded to 7031965YP)

$4.49

$

In Stock, only 2 left!

0

37

Giant-Vac 1723580

DRIVE WHEEL, Left
(Superseded to 1723580SM)

Note: not shown

$85.99

$

Usually ships in 2-12 days

0

38

Giant-Vac 1723581

DRIVE WHEEL, Right
(Superseded to 1723581SM)

$75.99

$

Usually ships in 2-12 days

0

39

Giant-Vac 7091501

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR 5
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

40

Giant-Vac 1723579

PULLEY, Blade Clutch Idler
(Superseded to 1723579SM)

$

$

Not available

41

Giant-Vac 1723577

IDLER BOSS
(Superseded to 1723577SM)

$26.99

$

Usually ships in 2-12 days

0

42

Giant-Vac 1723576

ROD, Blade Clutch Idler Tensioning (3/8-16 thread)
(Superseded to 1723576SM)

$4.99

$

Usually ships in 2-12 days

0

43

Giant-Vac 7076938

SCREW, 5/16-18 x 2-1/4" Hex Head Cap, GR 5
(Superseded to 703177)

$3.49

$

Usually ships in 2-12 days

0

44

Giant-Vac 1723575

HANGER, Trans. Forward Mount
(Superseded to 1723575SM)

$18.99

$

Usually ships in 2-12 days

0

45

Giant-Vac 7072520

BRACKET, Clutch Support
(Superseded to 7072520YP)

$20.99

$

Usually ships in 2-12 days

0

46

Giant-Vac 1723622

PLATE, Lock Engage
(Superseded to 1723622SM)

$13.99

$

Usually ships in 2-12 days

0

47

Giant-Vac 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

Note: or 7091686

$3.99

$

In Stock, only 2 left!

0

48

Giant-Vac 1723621

BRACKET, Lock Lever (weldment)
(Superseded to 1723621SM)

$

$

Not available

49

Giant-Vac 7091536

SCREW, 1/4-28 x 5/8" Hex Head Cap, GR 8
(Superseded to 7091536YP)

$3.49

$

Usually ships in 2-12 days

0

50

Giant-Vac 7090052

WASHER, 1/4" Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

51

Giant-Vac 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0

Giant-Vac 7072515

BRACKET, Fuel Tank Bottom (not shown)

Note: Briggs part# 225903

$

$

Not available

21B977-0120-E1

* ENGINE, Briggs 13.5HP Elect. Start

$

$

Not available

305777-0133-G1

* ENGINE, Briggs 16HP Elect. Start

$

$

Not available

GXV390K1DA23

* ENGINE, Honda 13HP

$

$

Not available

FH451V-AS02

* ENGINE, Kawasaki 15HP

$

$

Not available
