GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Electric Starting Motor Parts Diagram

Grounds Maintenance Tractor

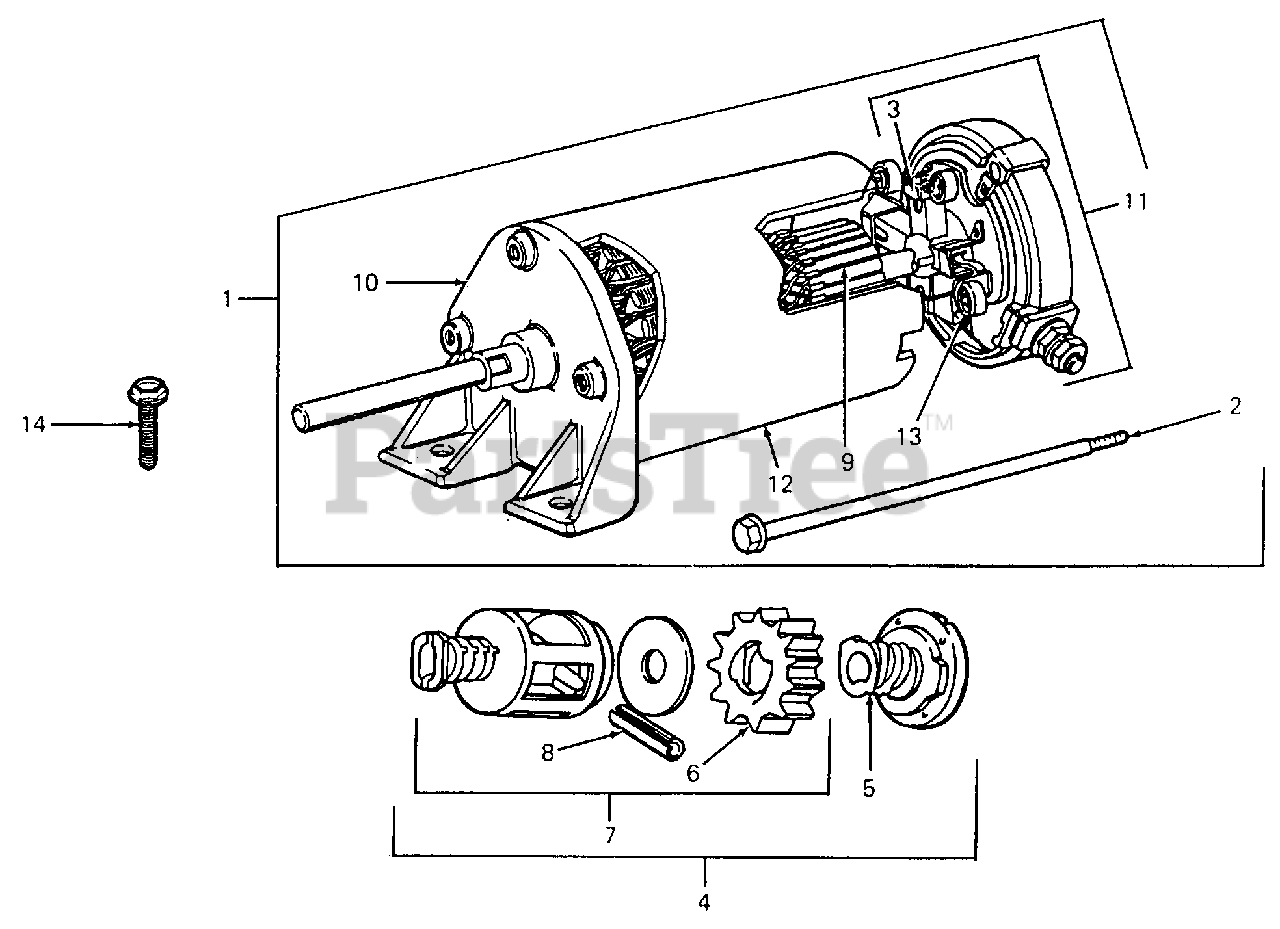

Electric Starting Motor Parts Diagram

  • Title

1

Cub Cadet BS-491334

Motor, Starting

$

$

Currently unavailable

2

Cub Cadet BS-94169

Bolt

$

$

Currently unavailable

3

Cub Cadet BS-490311

Brush Assy

$35.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-491336

Kit, Bendix Drive

$

$

Not available

5

Cub Cadet BS-491338

Clutch Assy

$

$

Currently unavailable

6

Cub Cadet BS-280104

Gear
(Superseded to BS-695708)

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet BS-492358

Retainer & Pin

$18.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-94288

Roll Pin
(Superseded to BS-691641)

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-492357

Armature Assy

$

$

Currently unavailable

10

Cub Cadet BS-491339

Cap

$

$

Currently unavailable

11

Cub Cadet BS-490310

Commutator End Cap Assy

$

$

Not available

12

Cub Cadet BS-399172

Housing Assy

$

$

Not available

13

Cub Cadet BS-490316

Brush Spring Set

$5.49

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-810069

Screw, Sems

$

$

Currently unavailable
