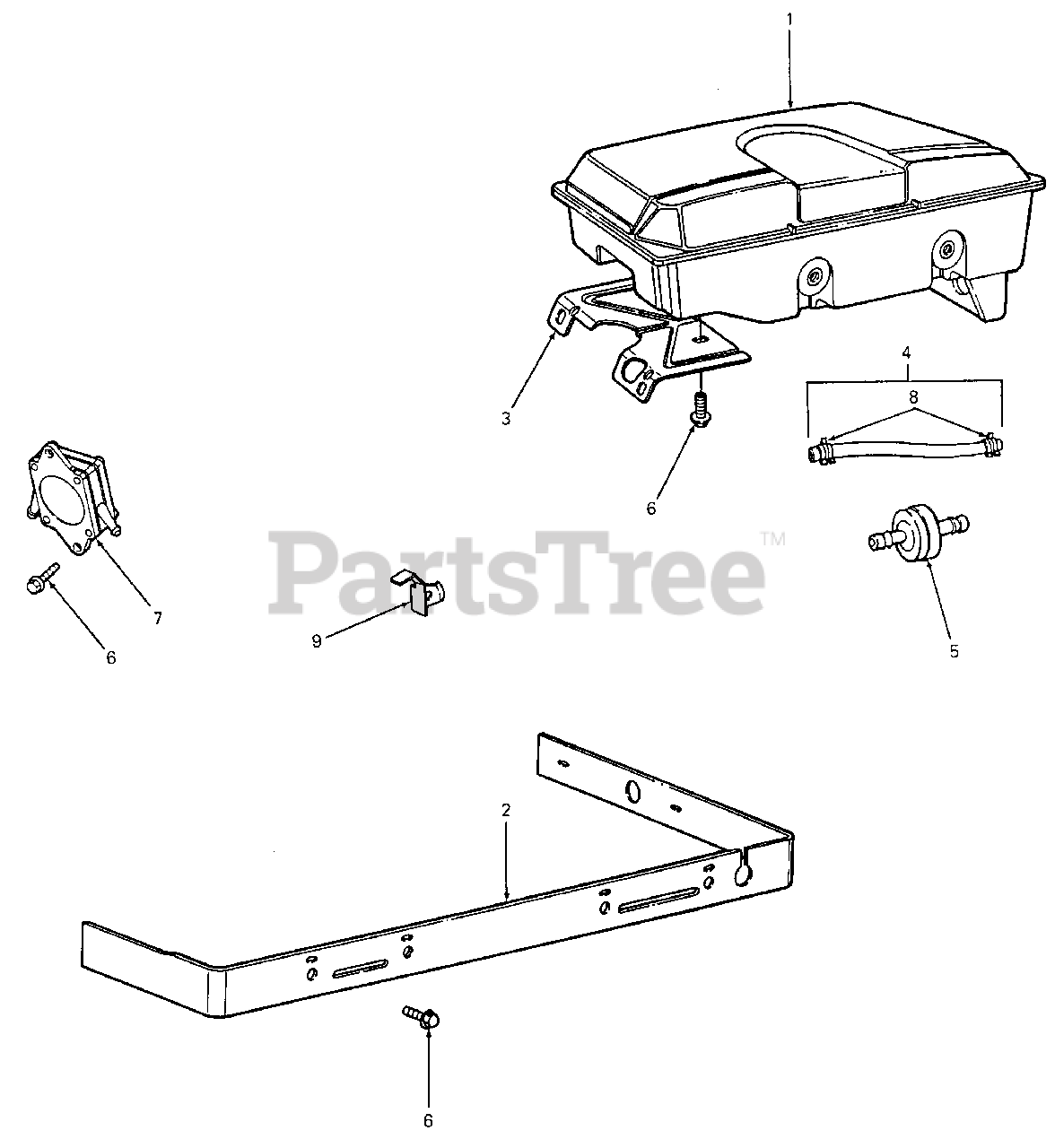

GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Fuel System Parts Diagram

Grounds Maintenance Tractor

Fuel System Parts Diagram

  • Title

1

Cub Cadet BS-492906

Tank Assy, Fuel

$

$

Currently unavailable

2

Cub Cadet BS-224017

Bracket, Fuel Tank

$

$

Currently unavailable

3

Cub Cadet BS-224031

Bracket, Fuel Tank

$

$

Currently unavailable

4

Cub Cadet BS-296004

Line, Fuel
(Superseded to BS-791745)

Note: (Cut to suit)

$10.99

$

In Stock, Qty 7

0

5

Cub Cadet BS-394358

Filter, Fuel
(Superseded to BS-394358S)

$5.99

$

In Stock, Qty 20+

0

6

Cub Cadet BS-810037

Screw, Sems

$

$

Not available

7

Cub Cadet BS-491922

Pump, Fuel
(Superseded to BS-808656)

$27.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-93807

Clamp, Fuel Link (Black)

$

$

Not available

9

Cub Cadet BS-224233

Clamp, Fuel Pipe

$

$

Currently unavailable
