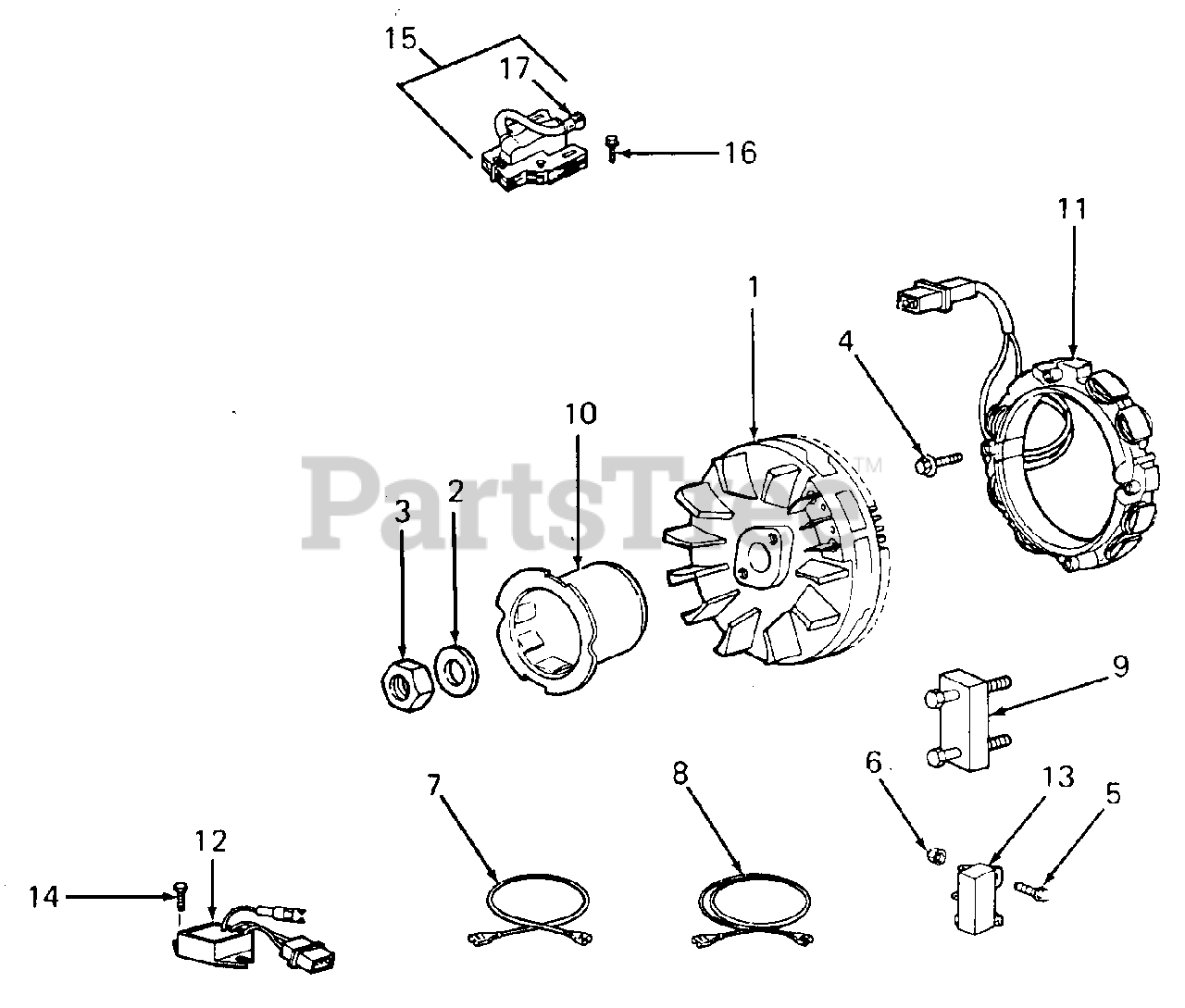

GMT 125 (169-130-100) - Cub Cadet Grounds Maintenance Tractor Engine Electrical Parts Diagram

Grounds Maintenance Tractor

Engine Electrical Parts Diagram

  • Title

1

Cub Cadet BS-807531

Flywheel & Ring Gear

$

$

Not available

2

Cub Cadet BS-805007

Washer, Spring

$

$

Not available

3

Cub Cadet BS-805021

Nut, Hex

$

$

Not available

4

Cub Cadet BS-805407

Screw, Mounting
(Superseded to BS-692066)

$3.49

$

In Stock, Qty 11

0

5

Cub Cadet BS-805169

Screw, Hex Hd

$

$

Not available

6

Cub Cadet BS-805496

Nut, Nylock

$

$

Currently unavailable

7

Cub Cadet BS-807594

Wire, Ground (Cyl #1)

$

$

Currently unavailable

8

Cub Cadet BS-807593

Wire, Ground (Cyl #2)

$

$

Currently unavailable

9

Cub Cadet BS-19203

Puller, Flywheel

$23.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-805153

Hub, Starter

$21.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-393295

Stator, 16 Amp
(Superseded to BS-592830)

$101.99

$

In Stock, Qty 7

0

12

Cub Cadet BS-394890

Regulator
(Superseded to BS-845907)

$61.99

$

In Stock, Qty 17

0

13

Cub Cadet BS-807527

Terminal, Ground
(Superseded to BS-809077)

$32.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-805448

Screw, Mounting
(Superseded to BS-692067)

$3.99

$

In Stock, Qty 11

0

15

Cub Cadet BS-490586

Armature
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

16

Cub Cadet BS-805407

Screw, Mounting
(Superseded to BS-692066)

$3.49

$

In Stock, Qty 11

0

17

Cub Cadet BS-221798

Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0
