GN8000E (0493-0) - Generac 5,000 Watt Portable Generator Control Panel Drawing No. 98496 Parts Diagram

5,000 Watt Portable Generator

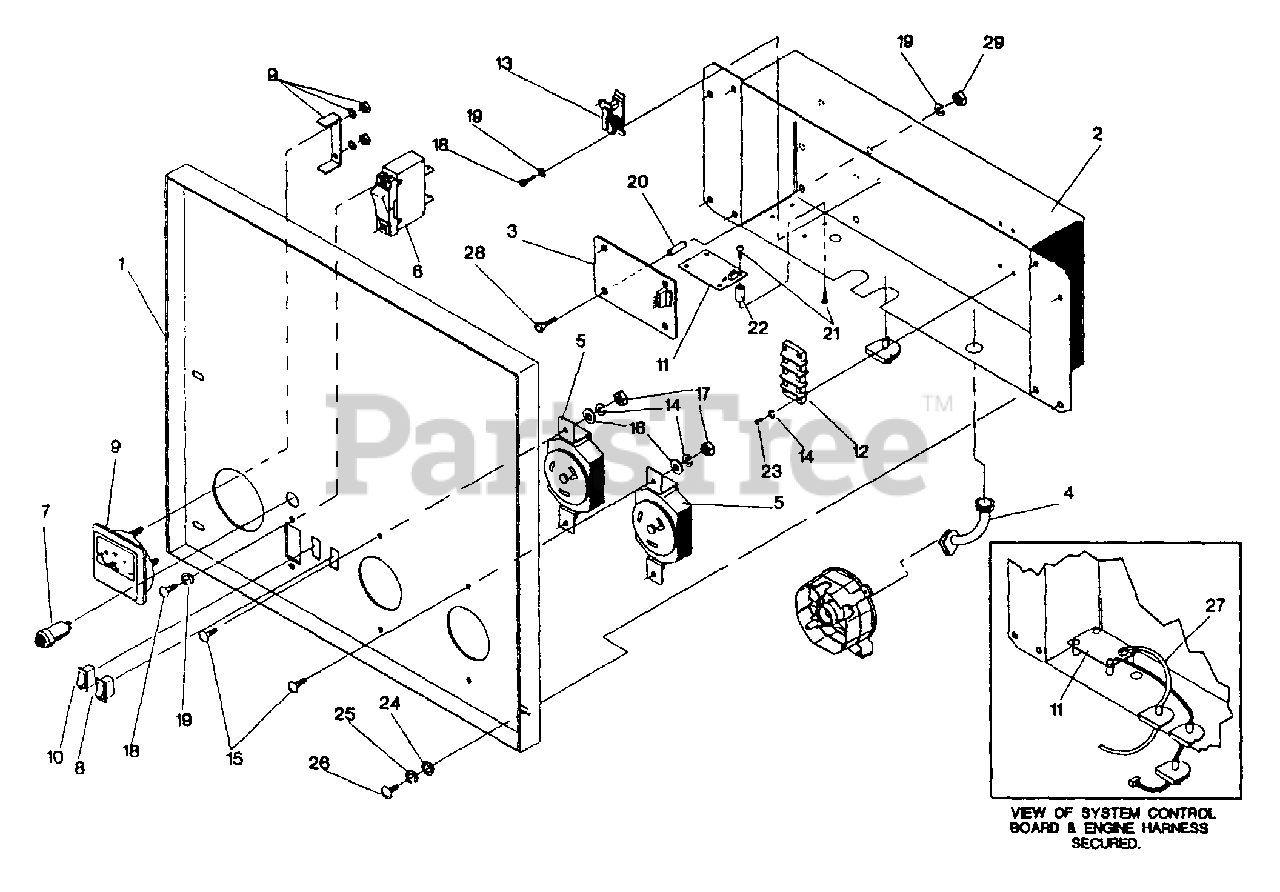

Control Panel Drawing No. 98496 Parts Diagram

  • Title

1

Briggs & Stratton 97551

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 98492

Control Panel Box

$

$

Currently unavailable

3

Briggs & Stratton 94117

Idle Control Assembly
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 84134

Rubber Grommet Connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 38253

250V, 30A, Locking Type Outlet

$

$

Not available

6

Briggs & Stratton 97895E

30A Main Circuit Breaker

$

$

Currently unavailable

7

Briggs & Stratton 97928

Lamp

$

$

Currently unavailable

8

Briggs & Stratton 78653

Run/Stop Switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 98242

0-300V Voltmeter
(Superseded to 98242GS)

$50.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87968

Rocker Switch
(Superseded to 87968GS)

$7.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 83970A

System Control Board
(Superseded to 83970AGS)

$299.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92953

Terminal Block
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84028

Idle Control Transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 22264

M4 Lockwasher

$

$

Not available

15

Briggs & Stratton 76055

M4-0.7 x 16 Phillips Mach Screw

$

$

Not available

16

Briggs & Stratton 38150

M4 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 51715

M4 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 43181

M3-0.5 x 10 Phillips Mach. Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 43182

M3 Lockwasher
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 64525

3/4" Hex Stand-Off

$

$

Currently unavailable

21

Briggs & Stratton 64526

#6-32 x 3/8" Screw

$

$

Not available

22

Briggs & Stratton 93929

1/2" PCS Stand-Off
(Superseded to 93929GS)

$1.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 80077

M4-0.7 x 20 Phillips Mach. Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 23897

M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 91526

M5-0.8 x 12 Phillips Mach. Screw

$

$

Not available

27

Briggs & Stratton 95996

Engine Harness Assembly
(Superseded to 95996GS)

$36.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 93986

M8-0.5 x 20 Phillips Mach. Screw
(Superseded to 93986GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51714

M3-0.5 Hex Nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0
