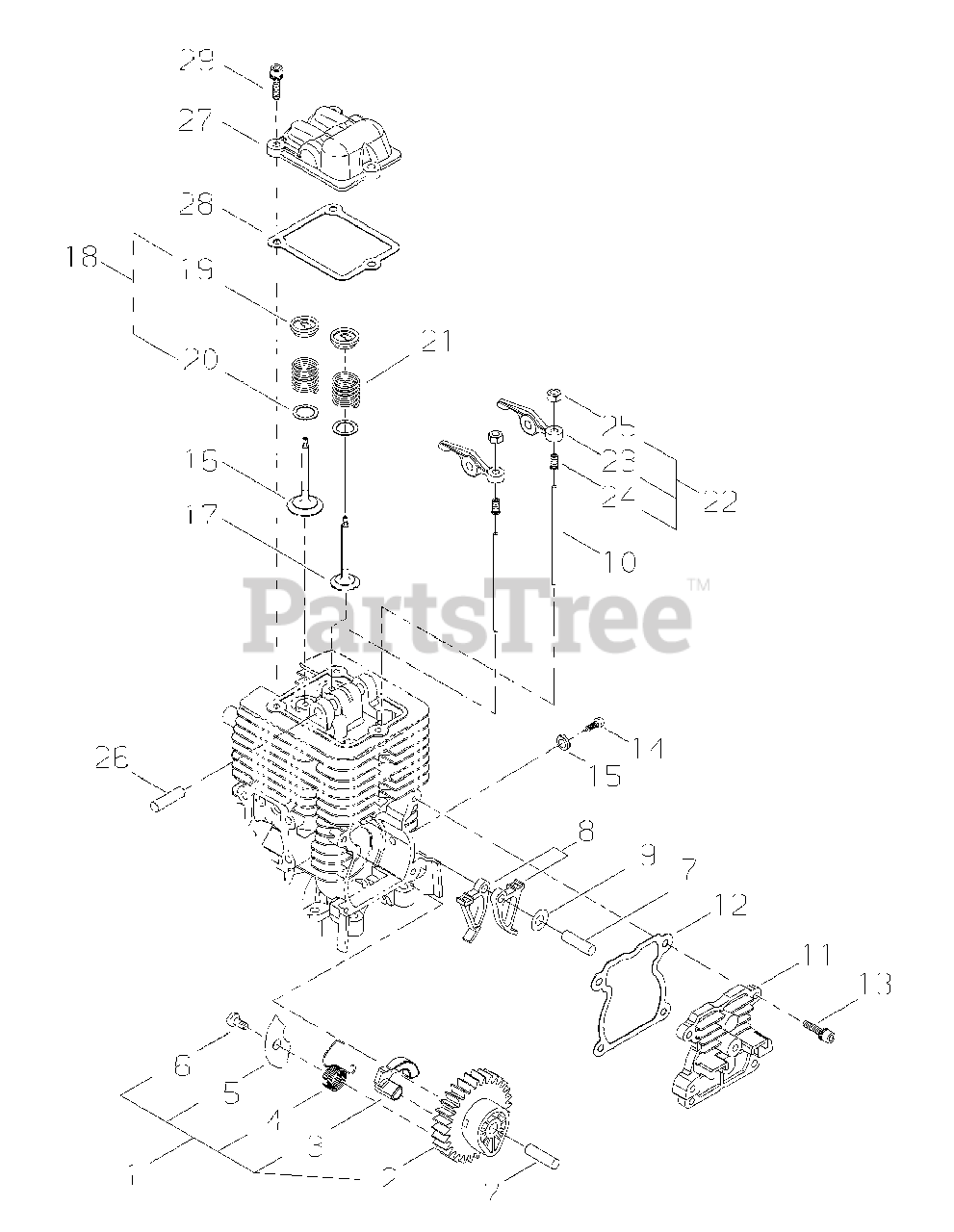

GP 3410 - Shindaiwa Water Pump Cam Gear Assembly, Rocker Arm Assembly Parts Diagram

Water Pump

Cam Gear Assembly, Rocker Arm Assembly Parts Diagram

  • Title

1

Echo 62905-43011

CAM GEAR ASSY
(Superseded to A063000000)

$17.99

$

In Stock, only 1 left!

0

2

Echo 62902-43310

GEAR, CAM
(Superseded to A622000000)

$9.99

$

In Stock, only 2 left!

0

3

Echo 62907-43120

WEIGHT
(Superseded to A146000000)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 1752008900

SPRING
(Superseded to V452000610)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 62905-43131

COVER, PLATE
(Superseded to C603000240)

$0.99

$

In Stock, only 1 left!

0

6

Echo 01280-04062

SCREW - 4X6 -- TAPPING
(Superseded to 9144904006)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 12492-50290

PIN - LOCATING
(Superseded to V623000030)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 62907-43210

FOLLOWER, CAM
(Superseded to A600000000)

$12.99

$

Usually ships in 2-4 days

0

9

Echo 11620-10000

WASHER - 5
(Superseded to V303000220)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 62907-43220

PUSHROD
(Superseded to A607000000)

$1.99

$

Usually ships in 2-4 days

0

11

Echo 62907-43230

COVER, CAM GEAR
(Superseded to A136000000)

$9.99

$

Usually ships in 2-4 days

0

12

Echo 62907-43240

GASKET
(Superseded to V109000040)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 11022-04140

SCREW - 4X14
(Superseded to V202000350)

$0.99

$

In Stock, Qty 7

0

14

Echo 62901-43310

SCREW - 5
(Superseded to V253000540)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 15401-10028

WASHER
(Superseded to V303000120)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 62907-44111

VALVE, INTAKE
(Superseded to A603000000)

$15.99

$

Usually ships in 2-4 days

0

17

Echo 62907-44121

VALVE, EXHAUST
(Superseded to A603000010)

$19.99

$

Usually ships in 2-4 days

0

18

Echo 60908-98370

VALVE RETAINER ASSY
(Superseded to P021027590)

$18.99

$

Usually ships in 2-4 days

0

19

Echo 62908-44140

RETAINER, VALVE
(Superseded to A606000040)

$7.99

$

In Stock, only 2 left!

0

20

Echo 62908-44310

WASHER, VALVE - 9
(Superseded to V392000030)

$0.99

$

In Stock, only 1 left!

0

21

Echo 62901-44130

SPRING, VALVE
(Superseded to A604000010)

$1.99

$

In Stock, only 4 left!

0

22

Echo 62907-44010

ROCKER ARM ASSY
(Superseded to A610000050)

$30.99

$

Usually ships in 2-4 days

0

23

Echo 62901-44210

ARM, ROCKER
(Superseded to A610000060)

$27.99

$

Usually ships in 2-4 days

0

24

Echo 62907-44220

SCREW, ADJUST
(Superseded to A613000010)

$2.99

$

Usually ships in 2-4 days

0

25

Echo 62901-44231

LOCKNUT, ADJUSTER
(Superseded to V263000230)

$0.99

$

Usually ships in 2-4 days

0

26

Echo 12492-50370

SHAFT, ROCKER ARM - 5X37.8
(Superseded to V623000010)

$1.99

$

Usually ships in 2-4 days

0

27

Echo 62907-44240

COVER, ROCKER ARM
(Superseded to A137000000)

$4.99

$

In Stock, only 1 left!

0

28

Echo 62907-44250

GASKET
(Superseded to V109000050)

$1.99

$

In Stock, Qty 5

0

29

Echo 11022-04140

SCREW - 4X14
(Superseded to V202000350)

$0.99

$

In Stock, Qty 7

0
