GP1750 (0057351) - Generac Portable Generator (SN: 6330218 - 9281764) (2014) EV Engine GTH990 Port Univ (0J3071) Parts Diagram

Portable Generator

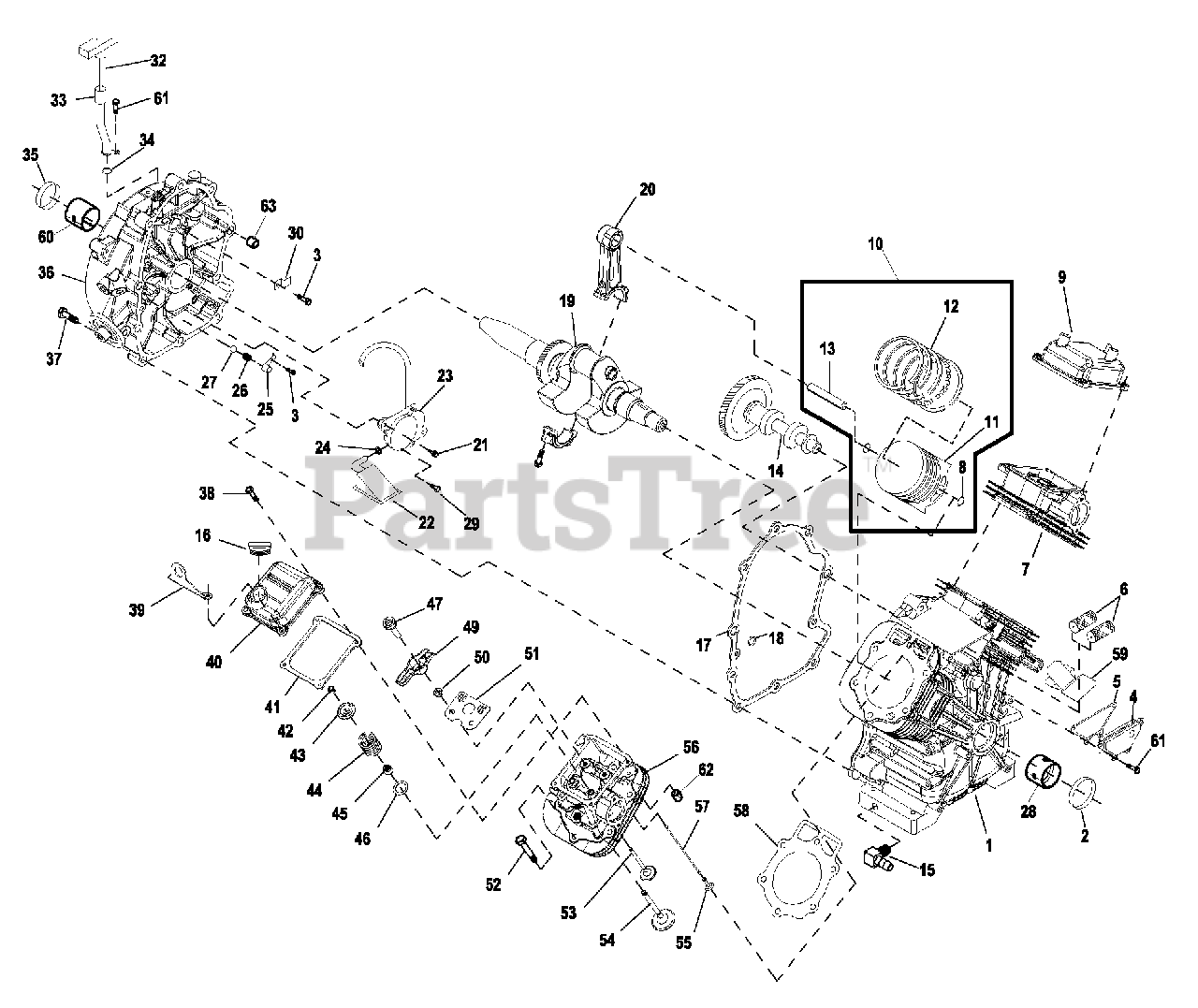

EV Engine GTH990 Port Univ (0J3071) Parts Diagram

  • Title

1

0G7908F

CCASE ASM DUAL DRAIN W/PLUGS

$

$

Not available

2

Generac 0K1534

SEAL CSHFT FLYWL SIDE RED

$17.99

$

In Stock, only 1 left!

0

3

Generac 0G0919

SCREW, HHFCS M6-1.0 X 12 G8.8

$0.99

$

Usually ships in 2-12 days

0

4

Generac 0G9100

ASSEMBLY, BREATHER DUAL VALVE

$24.99

$

Usually ships in 2-12 days

0

5

Generac 0C3005

GASKET, BREATHER COVER

$1.99

$

In Stock, only 2 left!

0

6

Generac 0E3372C

SEPARATOR, OIL BREATHER

$7.99

$

Usually ships in 2-12 days

0

7

Generac 0H1760A

ASSY HEAD CYL #1 GT-999 20KW

Note: FOR COMPLETE HEAD ASSEMBLY ORDER 0H1760ASRV

$

$

Not available

8

Generac 071983

RETAINER, PISTON PIN 20
(Superseded to G071983)

$16.99

$

Usually ships in 2-12 days

0

9

Generac 0G0693

ASSY, ROCKER COVER W/BARB

$27.99

$

Usually ships in 2-12 days

0

10

0K1633A

ASSY PISTON DISH TOP GT999

$

$

Not available

11

Generac 0K0989

PISTON DISH TOP 90 HSB 2013

$68.99

$

Usually ships in 2-12 days

0

12

Generac 0G2565

RING SET, PISTON TOP DIA 90

Note: ORDER P/N 0G25650SRV

$

$

Currently unavailable

13

Generac 0G7940

WRIST PIN 999 20X13X48 LONG

$7.99

$

Usually ships in 2-12 days

0

14

Generac 0D4041

ASSEMBLY, CAMSHAFT & GEAR
(Superseded to 0D40410SRV)

$

$

Not available

15

Generac 043790A

BARBED ELBOW, 90 DEG. 3/8NPT X 3/8 VS

$

$

Not available

16

Generac 093064

ASSEMBLY, OIL FILL CAP
(Superseded to 0930640SRV)

Note: ORDER KIT P/N 0930640SRV.

$9.99

$

In Stock, only 2 left!

0

17

Generac 0C2977

GASKET, CRANK CASE

$4.49

$

In Stock, only 2 left!

0

18

Generac 0C5943

SEAL, OIL PASSAGE

$1.49

$

In Stock, only 2 left!

0

19

Generac 0E4357E

CRANKSHAFT AND GEAR GTH-990

$331.99

$

Usually ships in 2-12 days

0

20

Generac 0J8969

ASSY CONROD MACH GT990

$33.99

$

Usually ships in 2-12 days

0

21

Generac 0G6431

SCREW SHC SEMS M6-1.0 X 50 G8.8

$1.49

$

Usually ships in 2-12 days

0

22

Generac 0E6098

SCREEN, OIL PICKUP

$15.99

$

Usually ships in 2-12 days

0

23

Generac 0D4123B

ASSY,OIL PUMP GTH W/O O-RING

$92.99

$

Usually ships in 2-12 days

0

24

Generac 0E8152

O-RING, 0.49 ID X 0.07 THICK

$0.99

$

Usually ships in 2-12 days

0

25

Generac 0C3011

COVER, OIL RELIEF

Note: IT MAY BE NECESSARY TO REMOVE THE TAB FROM THIS PART WHEN INSTALLING WITH PART # 0C2997

$2.99

$

Usually ships in 2-12 days

0

26

Generac 0C3009

SPRING, OIL RELIEF

$1.99

$

Usually ships in 2-12 days

0

27

Generac 0C3010

BALL, 1/2D OIL RELIEF

$0.99

$

Usually ships in 2-12 days

0

28

Generac 0C2960

SLEEVE,BEARING,CCASE

$18.99

$

Usually ships in 2-12 days

0

29

Generac 0F5458

SCREW, PLASTITE HI-LOW #10

$0.99

$

Usually ships in 2-12 days

0

30

Generac 0C5998

CLAMP, OIL TUBE

$3.99

$

Usually ships in 2-12 days

0

32

Generac 0F2664M

ASSEMBLY, DIPSTICK GTH-990 PORTABLE

$10.99

$

Usually ships in 2-12 days

0

33

Generac 0D3745

TUBE, DIPSTICK

$21.99

$

Usually ships in 2-12 days

0

34

Generac 0C3027

O-RING, 3/8 X 1/2

$0.99

$

In Stock, only 1 left!

0

35

Generac 0K2035

SEAL CSHFT PTO 760/990 RED

$15.99

$

In Stock, only 3 left!

0

36

Generac 0F8054

GEARCOVER / ADAPTOR GTH990/760

Note: USE 0F80540SRV

$

$

Currently unavailable

37

Generac 0C3006

SCREW, HHFC M10-1.5 X 55

$2.49

$

Usually ships in 2-12 days

0

38

Generac 080318

SCREW HHFC M6-1.0 X 25
(Superseded to G080318)

$9.99

$

Usually ships in 2-12 days

0

39

Generac 0K4867

LIFT HOOK

$3.99

$

Usually ships in 2-12 days

0

40

Generac 0D2723D

COVER, ROCKER W/OIL FILL "GENERAC" TEXT

$26.99

$

Usually ships in 2-12 days

0

41

Generac 0C2979

GASKET, VALVE COVER

$

$

Not available

42

Generac 086515

KEEPER, VALVE SPRING
(Superseded to G086515)

$1.99

$

Usually ships in 2-12 days

0

43

Generac 0D2274

RETAINER, VALVE SPRING

$2.49

$

In Stock, only 4 left!

0

44

Generac 0D3867

SPRING, VALVE

$3.99

$

Usually ships in 2-12 days

0

45

Generac 078672

SEAL, VALVE STEM D7
(Superseded to G078672)

$3.99

$

In Stock, only 1 left!

0

46

Generac 0C5371

WASHER, VALVE SPRING

$0.99

$

Usually ships in 2-12 days

0

47

Generac 072694

STUD, ROCKER ARM PIVOT
(Superseded to G072694)

$7.99

$

In Stock, only 1 left!

0

49

Generac 0D5313

ROCKER ARM

$

$

Not available

50

Generac 0D3998

NUT, HEX M8-1.0 GB YELLOW CHROM

$3.49

$

In Stock, only 2 left!

0

51

Generac 0J9679

PUSH ROD GUIDE PLATE

$3.99

$

Usually ships in 2-12 days

0

52

Generac 0C2976

SCREW HHFC M8-1.25 X 65

$2.49

$

Usually ships in 2-12 days

0

53

Generac 086516

VALVE, EXHAUST
(Superseded to G086516)

$21.99

$

In Stock, only 1 left!

0

54

Generac 0C2229

VALVE, INTAKE

$21.99

$

Usually ships in 2-12 days

0

55

Generac 083897

TAPPET, SOLID
(Superseded to G083897)

$21.99

$

Usually ships in 2-12 days

0

56

Generac 0H1760B

ASSY HEAD CYL #2 GT-999 20KW
(Superseded to 0H1760BSRV)

Note: FOR COMPLETE ASSEMBLY ORDER 0H1760BSRV

$374.99

$

Usually ships in 2-12 days

0

57

Generac 0D9853D

PUSHROD 147

$11.99

$

In Stock, only 4 left!

0

58

Generac 0C2978

GASKET, HEAD

$6.49

$

Usually ships in 2-12 days

0

59

Generac 0G8558

DIVERTER, BREATHER GTH

$3.99

$

Usually ships in 2-12 days

0

60

Generac 0C4166

SLEEVE PTO BEARING GTH990

$24.99

$

Usually ships in 2-12 days

0

61

Generac 0D6147

SCREW HHFCS M6-1.0 X 10

$0.99

$

Usually ships in 2-12 days

0

62

Generac 078699B

SLEEVE DOWEL PIN 12 DIA.

$2.49

$

Usually ships in 2-12 days

0

63

Generac 078699C

SLEEVE DOWEL PIN DIA.14

$2.99

$

Usually ships in 2-12 days

0

64

Generac 0D4788

PLUG STD PIPE 3/8 STEEL SQ HD

$2.99

$

Usually ships in 2-12 days

0
