GP5000 (0059440) - Generac Portable Generator, CARB (SN: 6119175A - 6232392A) (2011) No Assembly Title Parts Diagram

Portable Generator, CARB

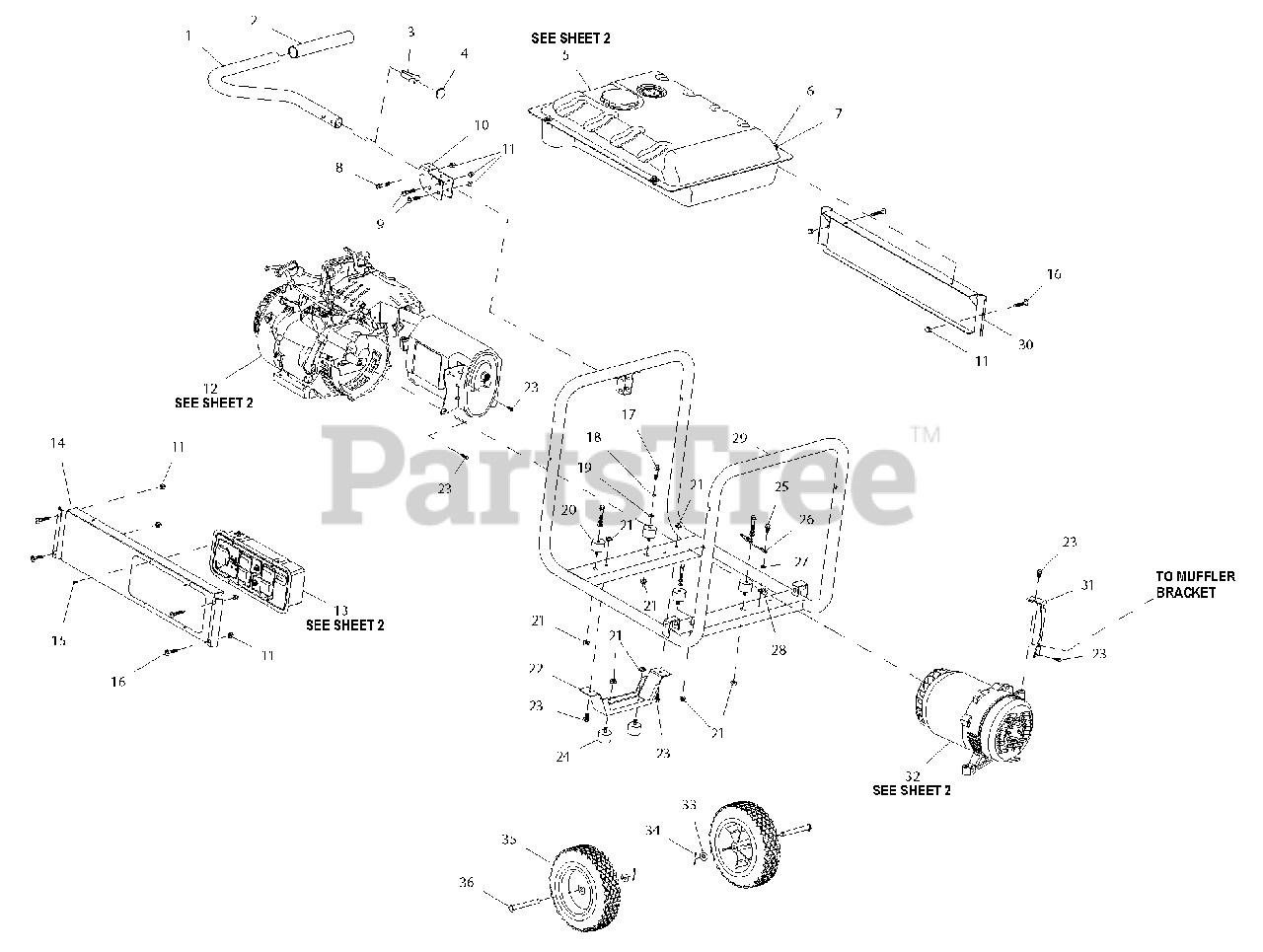

No Assembly Title Parts Diagram

  • Title

1

0H9756

HANDLE GP

$

$

Not available

2

Generac 0H9759

HANDLE GRIP GP
(Superseded to 0G8442C113)

Note: ORDER P/N 0G8442C113

$14.99

$

In Stock, only 1 left!

0

3

Generac 0G5442

SNAP BUTTON - .437" DIA. HEAD

$1.49

$

In Stock, Qty 5

0

4

Generac 0H9760

CAP, END NYLON BLACK

$1.99

$

In Stock, only 4 left!

0

5

FUEL TANK ASSEMBLY 7.2 GAL CARB

$

$

Not available

6

Generac 0H1411B

RUBBER MOUNT,10.3 ID X 11 HGT

$2.99

$

Usually ships in 2-12 days

0

7

Generac 0H1610A

INSERT, ANTI-CRUSH FOR TANKS

$1.49

$

Usually ships in 2-12 days

0

8

Generac 073144

SCREW HHFC M8-1.25 X 45 G8.8
(Superseded to G073144)

$0.99

$

In Stock, Qty 10

0

9

Generac 0H1781

CHB M8-1.25 X 46MM LONG

$1.49

$

In Stock, Qty 5

0

10

0H9767

HANDLE BRACKET GP

$

$

Not available

11

Generac 0H1782

CAP NUT M8-1.25 BLACK ZINC

$1.99

$

In Stock, Qty 5

0

12

Generac 0J5221A

ASSY ENGINE 389 CATALYST

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$

$

Currently unavailable

13

Generac 0H9775G

CONTROL PANEL ASSEMBLY

$557.99

$

Usually ships in 2-12 days

0

14

0H9748

PANEL RAIL C/PNL SIDE GP

$

$

Not available

15

Generac 0G8382

SCREW PPPH #8-16 X .66" BZC

$1.49

$

Usually ships in 2-12 days

0

16

Generac 0H1780

CURVED HEAD M8-1.25 X 41MM LNG

$3.49

$

Usually ships in 2-12 days

0

17

Generac 039414

SCREW HHC M8-1.25 X 35 C8.8
(Superseded to G039414)

$15.99

$

Usually ships in 2-12 days

0

18

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

Usually ships in 2-12 days

0

19

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

Usually ships in 2-12 days

0

20

Generac 0H1783

VIB MNT 35MM X 25.4 X M8-1.25

$7.99

$

In Stock, only 4 left!

0

21

Generac 067989

NUT HEX FL WHIZ M8-1.25
(Superseded to G067989)

$2.49

$

In Stock, only 2 left!

0

22

0H1114

FOOT, BENT, GP5000-GP8000

$

$

Not available

23

Generac 0E9470

SCREW HHFC M8-1.25 X 16 G8.8

$0.99

$

In Stock, only 1 left!

0

24

Generac 0H1829

VIB MNT 38.1 X 25.4 X M8-1.25

$4.99

$

In Stock, only 3 left!

0

25

Generac 076340

SCREW HHFC M6-1.0 X 16 G8.8

$

$

Not available

26

Generac 0G8753C

WIRE ASSY GND ALT TO BASE

$2.49

$

Usually ships in 2-12 days

0

27

Generac 0A1658

WASHER LOCK SPECIAL 1/4"

$15.99

$

Usually ships in 2-12 days

0

28

Generac 0J4534

LUG, SOLDERLESS #2-#8

$13.99

$

Usually ships in 2-12 days

0

29

0J1973

ASSEMBLY FRAME GP5-6.5KW CARB

$

$

Not available

30

0H9749

PANEL RAIL BACK GP

$

$

Not available

31

Generac 0G8542

BRACKET, MUFFLER 389CC

$16.99

$

Usually ships in 2-12 days

0

32

Generac 0G9899A

ALTERNATOR, GP CARB

$627.99

$

Usually ships in 2-12 days

0

33

Generac 022304

WASHER FLAT 1/2 ZINC
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

34

Generac 0D4999

PIN COTTER 1/8 X 1-1/4 ZN PLT

$0.99

$

In Stock, Qty 8

0

35

Generac 0G8651

WHEEL, INCH 9.5 DIA, PLASTIC

$40.99

$

In Stock, Qty 6

0

36

Generac 0H0204

AXLE PIN, 1/2"X 4", 3/4" HEAD

$9.99

$

In Stock, only 2 left!

0
