GP5500 (0059395) - Generac Portable Generator (SN: 7155081E - 7263444E) (2012) Frame Parts Diagram

Portable Generator

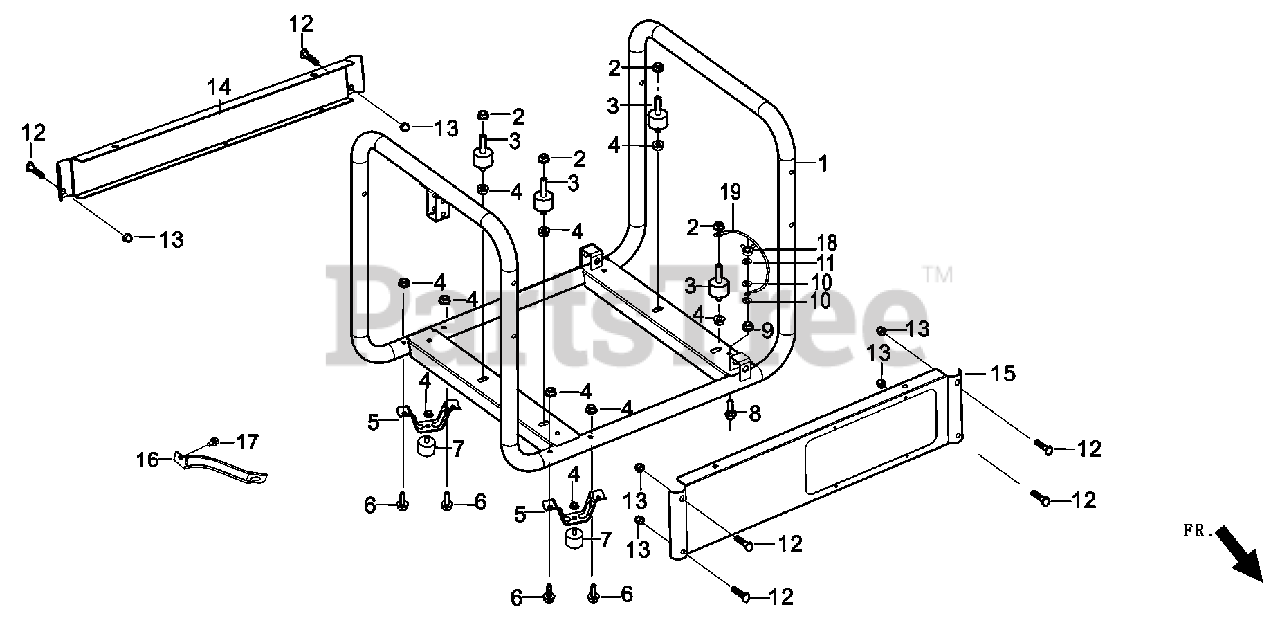

Frame Parts Diagram

  • Title

1

Generac 0J9162009

ASSEMBLY FRAME GP PS

Note: IF YOU NEED HOT EXAUST DECAL, ORDER P/N 0H0116 IF YOU NEED GROUND LUG DECAL, ORDER P/N 067210B

$

$

Currently unavailable

2

Generac 0J4029

NUT

$1.49

$

In Stock, only 3 left!

0

3

Generac 0J6242

VIB MNT 25.5 X 36.0 X M8/M10

$7.49

$

In Stock, only 4 left!

0

4

Generac 067989

NUT
(Superseded to G067989)

$2.49

$

In Stock, only 2 left!

0

5

Generac 0J9162026

FRAME FOOT GP5-7.5KW

Note: IF YOU HAVE MODEL # 0059395, UNIT SERIAL # 7026245E OR 7026246E ORDER P/N 0J63730ST03

$14.99

$

Usually ships in 2-12 days

0

6

Generac 0J9162005

BOLT

$1.49

$

In Stock, Qty 11

0

7

Generac 0H1829

VIB MNT 38.1 X 25.4 X M8-1.25

$4.99

$

In Stock, only 1 left!

0

8

Generac 0J9162006

BOLT

$

$

Currently unavailable

9

Generac 0J9162007

NUT

$

$

Currently unavailable

10

Generac 0J9162008

WASHER FLAT

$

$

Currently unavailable

11

Generac 0J9162017

SPRING WASHER

$

$

Currently unavailable

12

Generac 0H1780

BOLT

$3.49

$

Usually ships in 2-12 days

0

13

Generac 0H1782

NUT

$1.99

$

In Stock, Qty 6

0

14

Generac 0H9749AST03

PANEL RAIL BACK GP

Note: ORDER DECAL 0H8763A FOR THE GENERAC LOGO. CT

$59.99

$

Usually ships in 2-12 days

0

15

Generac 0J63610ST03

PANEL RAIL CPNL SIDE GP

$23.99

$

Usually ships in 2-12 days

0

16

Generac 0J58620162

SUPPORT AIR CLEANER

$4.49

$

Usually ships in 2-12 days

0

17

Generac 0J58620183

BOLT

$1.49

$

Usually ships in 2-12 days

0

18

Generac 0J9162010

NUT

$

$

Currently unavailable

19

Generac 0J9162018

EARTHING LUG

$

$

Currently unavailable
