GP5500 (0059395) - Generac Portable Generator (SN: 7155081E - 7263444E) (2012) Fuel Tank Parts Diagram

Portable Generator

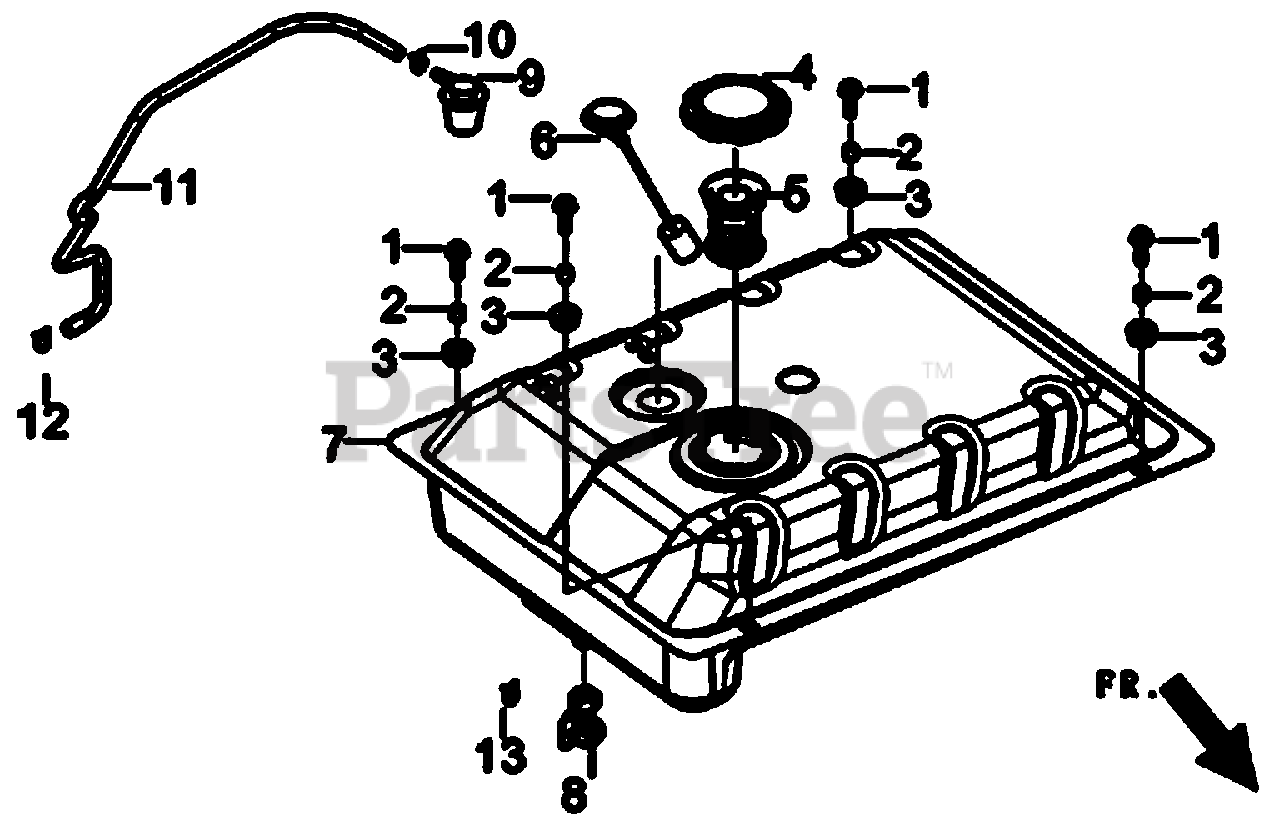

Fuel Tank Parts Diagram

  • Title

1

Generac 0E9507C

BOLT

$1.99

$

In Stock, Qty 8

0

2

Generac 0H1610A

ANTI-CRUSH 10.8OD 9ID 10LG

$1.49

$

Usually ships in 2-12 days

0

3

Generac 0H1411B

RUBBER MOUNT,10.3 ID X 11 HGT

$2.99

$

Usually ships in 2-12 days

0

4

Generac 0G84300105

FUEL CAP VENTED

$13.99

$

Usually ships in 2-12 days

0

5

Generac 0H1326

FILTER, FUEL

$4.99

$

In Stock, Qty 11

0

6

Generac 0H9005

FUEL GAUGE 130LG

$14.99

$

In Stock, only 2 left!

0

7

Generac 0H7510A

TANK, FUEL
(Superseded to 0H7510AASRV)

Note: ORDER P/N 0H7510AASRV FOR MODEL #'S 5939-2,5940-1, 5941-2,5944-0,5945-0, 5946-0,5975-1,5976-1, 6110-2. ORDER P/N 0H7510ABSRV FOR MODEL # 5939-3. IF YOU NEED FUEL SHUTOFF DECAL, ORDER P/N 0H9112 IF YOU NEED THE CHOKE OPERATION DECAL, ORDER P/N 0H2549 IF YOU NEED OPERATING INFORMATION DECAL, ORDER P/N 0H9007

$402.99

$

In Stock, only 1 left!

0

8

Generac 0J0974

VALVE FUEL SHUTOFF

$21.99

$

In Stock, only 1 left!

0

9

Generac 0J7921

ASSEMBLY ROV
(Superseded to 0J7921A)

$16.99

$

In Stock, Qty 7

0

10

Generac 0J58620206

CLAMP

$2.49

$

Usually ships in 2-12 days

0

11

Generac 0J9162003

ROV HOSE

$

$

Not available

12

Generac 0J9162004

CLAMP

$

$

Currently unavailable

13

Generac 048031B

CLAMP HOSE BAND SPRING .38

$2.99

$

In Stock, only 2 left!

0
