GP6500 (0059413) - Generac Portable Generator (SN: 8279340A - 9636971A) (2015) Rocker and Camshaft Parts Diagram

Portable Generator

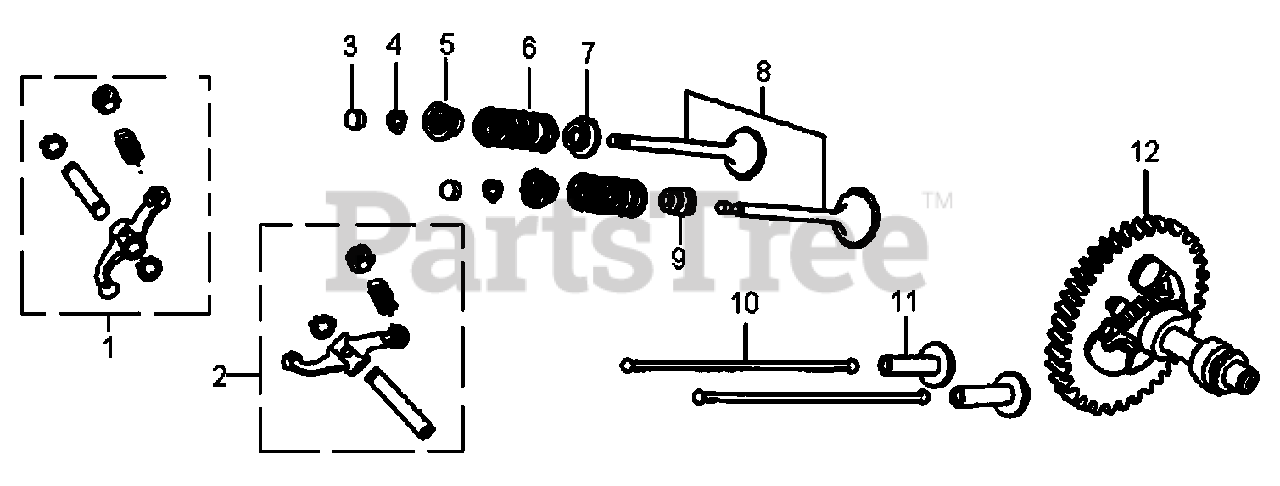

Rocker and Camshaft Parts Diagram

  • Title

1

Generac 0J39430124

ARM ASSY., ROCKER

Note: ROCKER ARM ONLY FOR ASSEMBLY ORDER 0K6775

$29.99

$

Usually ships in 2-12 days

0

2

Generac 0J39430125

ARM ASSY., ROCKER

Note: ROCKER ARM ONLY FOR ASSEMBLY ORDER 0K6777

$38.99

$

In Stock, only 3 left!

0

3

Generac 0G84420122

VALVE, ROTATOR

$6.49

$

In Stock, only 2 left!

0

4

Generac 0G84420239

VALVE, KEEPER

$2.49

$

In Stock, only 2 left!

0

5

Generac 0G84420123

RETAINER,VALVE SPRING

$9.99

$

In Stock, only 2 left!

0

6

Generac 0G84420124

SPRING, VALVE

$4.99

$

In Stock, only 2 left!

0

7

Generac 0G84420125

SEAT, VALVE SPRING

$4.49

$

In Stock, only 4 left!

0

8

Generac 0J39430126

VALVE ASSY.

$54.99

$

In Stock, only 1 left!

0

9

Generac 0G84420128

SEAL, VALVE STEM

$12.99

$

Usually ships in 2-12 days

0

10

Generac 0J39430127

PUSH ROD

$6.99

$

In Stock, only 2 left!

0

11

Generac 0G84420174

LIFTER, VALVE(TAPPET)

$8.49

$

In Stock, only 2 left!

0

12

Generac 0G84420175

CAMSHAFT ASSY

$135.99

$

In Stock, only 1 left!

0

Generac 0K22930113

RETAINER, ROCKER ARM SHAFT

Note: NOT SHOWN

$4.49

$

Usually ships in 2-12 days

0

Generac 0G84420194

BOLT, FLANGE, 6X12

Note: NOT SHOWN

$1.49

$

In Stock, Qty 6

0
