GP8000E (0065141C) - Generac Portable Generator (SN: 9229065A - 9244922A) (2015) PARTS MANUAL 8000W 50ST/CARB (0K9792PMNL) Parts Diagram

Portable Generator

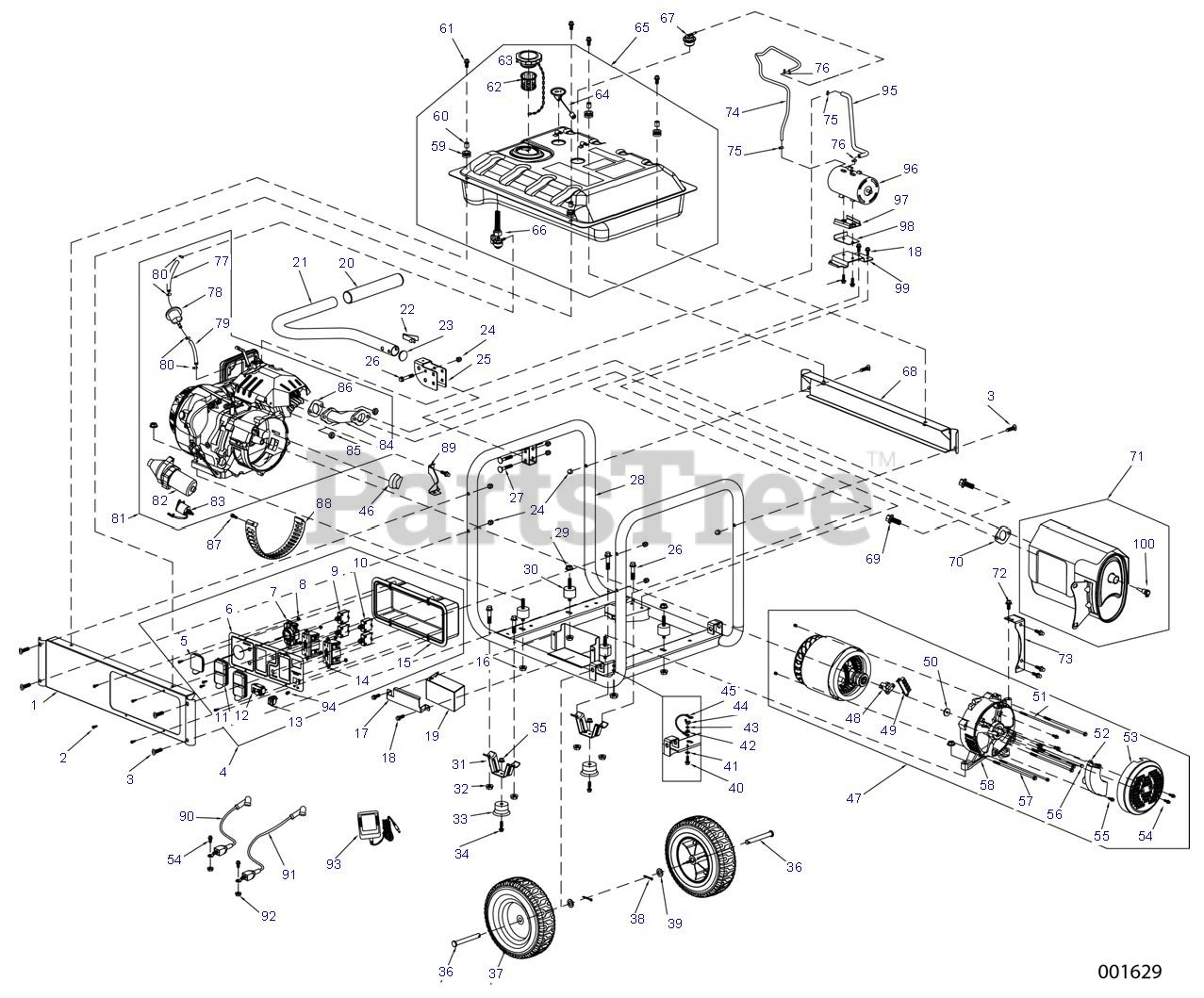

PARTS MANUAL 8000W 50ST/CARB (0K9792PMNL) Parts Diagram

  • Title

1

Generac 0H97480ST03

FRAME RAIL

Note: ORDER PART # 0H8772 FOR DECAL GP7500E FOR CONTROL PANEL SIDE RAIL. CT ORDER PART #0H8766 FOR DECAL GP6500 FOR CONTROL PANEL SIDE RAIL. CT ORDER PART 0H8768 FOR GP6500E CONTROL PANEL SIDE RAIL.

$68.99

$

Usually ships in 2-12 days

0

2

Generac 0H91980159

PAN SCREW (M5X16)

$0.99

$

Usually ships in 2-12 days

0

3

Generac 0H1780

CURVED HEAD BOLT (M8X40)

$3.49

$

Usually ships in 2-12 days

0

4

Generac 0K97920110

CONTROL PANEL ASSEMBLY

$479.99

$

Usually ships in 2-12 days

0

5

Generac 0G9391

OUTLET COVER

$36.99

$

Usually ships in 2-12 days

0

6

Generac 0J4536A

CONTROL PANEL FACE PLATE

$18.99

$

Usually ships in 2-12 days

0

7

Generac 0G8758

OUTLET 30A 120/250V

$26.99

$

In Stock, only 1 left!

0

8

Generac 0J86620108

NUT M4

$0.99

$

Usually ships in 2-12 days

0

9

Generac 0K20680112

30A CIRCUIT BREAKER

$21.99

$

In Stock, only 2 left!

0

10

Generac 0H0265C

20A CIRCUIT BREAKER

$24.99

$

In Stock, only 3 left!

0

11

Generac 0G9392

OUTLET COVER

$19.99

$

Usually ships in 2-12 days

0

12

Generac 0G8321

HOUR METER

Note: IF CUSTOMER HAS A RESET BUTTON ON THEIR PANEL, ORDER P/N 0H8214.

$87.99

$

Usually ships in 2-12 days

0

13

Generac 0J0251

ENGINE SWITCH

$27.99

$

In Stock, only 2 left!

0

14

Generac 0D4966

OUTLET 20A 120V GFCI

$104.99

$

In Stock, Qty 5

0

15

Generac 0G9756A

BACK PANEL COVER

$48.99

$

Usually ships in 2-12 days

0

16

Generac 0K22930127

NUT (M8)

$1.49

$

In Stock, only 2 left!

0

17

Generac 0J06940ST15

BATTERY BRACKET COVER

$10.99

$

Usually ships in 2-12 days

0

18

Generac 0G84420194

BOLT(M6X12)

$1.49

$

In Stock, Qty 6

0

19

Generac 0G9449

BATTERY

$79.99

$

In Stock, only 1 left!

0

20

Generac 0G8442C113

HANDLE GRIP

$14.99

$

Usually ships in 2-12 days

0

21

Generac 0H97560ST15

HANDLE

$44.99

$

In Stock, only 1 left!

0

22

Generac 0J5347

SNAP BUTTON
(Superseded to 0G5442)

Note: ORDER P/N 0G5442

$1.49

$

In Stock, only 4 left!

0

23

Generac 0H9760

PLUG

$1.99

$

In Stock, Qty 5

0

24

Generac 0H1782

LOCKING CAP NUT (M8)

$1.99

$

In Stock, only 4 left!

0

25

Generac 0H97670ST15

HANDLE BRACKET

$18.99

$

In Stock, only 1 left!

0

26

Generac 073144

BOLT (M8X45)
(Superseded to G073144)

$0.99

$

In Stock, Qty 13

0

27

Generac 0H1781

CARRIAGE HEAD BOLT (M8X46)

$1.49

$

In Stock, Qty 5

0

28

Generac 0K97920117

FRAME

$292.99

$

Usually ships in 2-12 days

0

29

Generac 0G84420107

NUT (M10)

$1.49

$

Usually ships in 2-12 days

0

30

Generac 0K09150110

RUBBER VIBRATION MOUNT

$14.99

$

In Stock, Qty 5

0

31

Generac 0K0097

BENT FRAME FOOT
(Superseded to 0K00970ST03)

Note: ORDER 0K00970ST03 USE 0K00970ST03

$22.99

$

In Stock, only 3 left!

0

32

Generac 0K0098

NUT (M8)

$2.49

$

In Stock, Qty 20+

0

33

Generac 0K0099

RUBBER FOOT
(Superseded to 0J8836)

Note: ORDER 0J8836

$4.49

$

In Stock, Qty 20+

0

34

Generac 0K0100

BOLT (M6X28)

$1.99

$

In Stock, Qty 20+

0

35

Generac 0K0105

NUT (M6)

$2.49

$

In Stock, Qty 20+

0

36

Generac 0H0204

AXLE PIN

$9.99

$

In Stock, only 2 left!

0

37

Generac 0K6011

COMPLETE WHEEL

$48.99

$

In Stock, only 1 left!

0

38

Generac 0D4999

COTTER PIN

$0.99

$

In Stock, Qty 8

0

39

Generac 022304

FLAT WASHER
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

40

Generac 0J35220156

BOLT (M6X20)

$1.49

$

Usually ships in 2-12 days

0

41

Generac 0K0093

SPECIAL LOCK WASHER

$2.49

$

Usually ships in 2-12 days

0

42

Generac 0G84420272

NUT (M6)

$0.99

$

In Stock, Qty 7

0

43

Generac 0J47870118

FLAT WASHER (6X0.8)

$0.99

$

Usually ships in 2-12 days

0

44

Generac 0K0094

NUT (M6)

$1.49

$

Usually ships in 2-12 days

0

45

Generac 0K20670114

GROUND WIRE ASSEMBLY

$3.49

$

Usually ships in 2-12 days

0

46

Generac 0J86620104

BAFFLE

$2.99

$

Usually ships in 2-12 days

0

47

Generac 0L0566

ALTERNATOR ASSEMBLY

$1749.99

$

Usually ships in 2-12 days

0

48

Generac 0H0919

ALTERNATOR BRUSH

$4.99

$

In Stock, only 2 left!

0

49

Generac 0J83630111

WIRE CONNECTOR TERMINAL

$8.99

$

Usually ships in 2-12 days

0

50

Generac 0J86620102

FLAT WASHER (M10X4)

$2.49

$

Usually ships in 2-12 days

0

51

Generac 0H9838C112

STATOR BOLT (M5X232)

$13.99

$

Usually ships in 2-12 days

0

52

Generac 0H91980178

AUTOMATIC VOLTAGE REGULATOR

Note: ORDER # 0H2579B

$92.99

$

Usually ships in 2-12 days

0

53

Generac 0H3049

GENERATOR END COVER

$21.99

$

Usually ships in 2-12 days

0

54

Generac 0J4967

BOLT (M5X12)

$0.99

$

Usually ships in 2-12 days

0

55

Generac 0J4968

BOLT (M5X16)

$0.99

$

Usually ships in 2-12 days

0

56

Generac 0H92090104

ROTOR BOLT (M10X285)

Note: USED ON ALTENATOR 0H9209

$15.99

$

Usually ships in 2-12 days

0

57

Generac 0H92090105

STATOR BOLT (M6X193)

Note: USED ON ALTENATOR 0H9209

$20.99

$

Usually ships in 2-12 days

0

58

Generac 0H91980171

BEARING CARRIER HOUSING

$109.99

$

Usually ships in 2-12 days

0

59

Generac 0H1411B

RUBBER MOUNT

$2.99

$

Usually ships in 2-12 days

0

60

Generac 0H1610A

ANTI-CRUSH INSERT

$1.49

$

In Stock, only 1 left!

0

61

Generac 0E9507C

BOLT (M8X20)

$1.99

$

In Stock, Qty 8

0

62

Generac 0H1326

GAS TANK FUEL FILTER

$4.99

$

In Stock, Qty 11

0

63

Generac 0H0958

FUEL CAP

$25.99

$

Usually ships in 2-12 days

0

64

Generac 0K09150113

FUEL METER

Note: ORDER P/N 0H9005A

$10.99

$

Usually ships in 2-12 days

0

65

0L5750

FUEL TANK 8 GALLON

$

$

Not available

66

Generac 0J0974

FUEL SHUTOFF VALVE

$21.99

$

In Stock, only 1 left!

0

67

Generac 0J7921

ROLL OVER VALVE
(Superseded to 0J7921A)

$16.99

$

In Stock, Qty 7

0

68

Generac 0H9749AST03

BACK FRAME RAIL

Note: ORDER DECAL 0H8763A FOR THE GENERAC LO. CT

$59.99

$

Usually ships in 2-12 days

0

69

Generac 0E9507B

BOLT(M8X25)

$3.49

$

In Stock, Qty 5

0

70

Generac 0J4691

MUFFLER EXHAUST GASKET

$2.49

$

In Stock, only 2 left!

0

71

Generac 0H9763B

MUFFLER

$115.99

$

Usually ships in 2-12 days

0

72

Generac 0E9470

BOLT (M8X16)

$0.99

$

In Stock, only 1 left!

0

73

Generac 0J97760112

MUFFLER BRACKET

$12.99

$

Usually ships in 2-12 days

0

74

Generac 0K97920111

PREFORMED HOSE

$8.99

$

Usually ships in 2-12 days

0

75

Generac 0K97920112

HOSE CLAMP

$2.49

$

Usually ships in 2-12 days

0

76

Generac 0J35220174

HOSE CLAMP

$2.49

$

In Stock, only 3 left!

0

77

Generac 0G9757A

FUEL HOSE (8X55)

$6.49

$

In Stock, only 1 left!

0

78

Generac 0G9914

FUEL FILTER

$14.99

$

In Stock, Qty 12

0

79

Generac 0G9757B

FUEL HOSE (8X80)

$8.49

$

In Stock, only 1 left!

0

80

Generac 0J25910115

HOSE CLAMP

$0.99

$

In Stock, Qty 6

0

81

Generac 0H9838C

ENGINE 420CC

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS. FOR ENGINE INFORMATION REFER TO THE FOLLOWING: 0H9838CPMNL 420cc GASOLINE ENG (G19) PARTS MNL

$

$

Not available

82

Generac 0H98380101

STARTER MOTOR

$201.99

$

In Stock, only 1 left!

0

83

Generac 0H98380102

CONTACTOR ASSEMBLY

$30.99

$

Usually ships in 2-12 days

0

84

Generac 0J4535A

EXHAUST MANIFOLD

$26.99

$

Usually ships in 2-12 days

0

85

Generac 0J35220161

NUT (M8)

$0.99

$

In Stock, only 3 left!

0

86

Generac 0G9028

EXHAUST GASKET

$2.99

$

In Stock, only 2 left!

0

87

Generac 0J00620100

BOLT (M5X10)

$0.99

$

In Stock, Qty 10

0

88

Generac 0H9761

DUST COVER SHROUD

$9.49

$

Usually ships in 2-12 days

0

89

Generac 0G8442C112

AIR CLEANER BRACKET

$4.49

$

In Stock, only 1 left!

0

90

Generac 0J4157B

POSITIVE RED BATTERY CABLE

$29.99

$

In Stock, only 1 left!

0

91

Generac 0J4157A

NEGATIVE GREEN BATTERY CABLE

$18.99

$

In Stock, only 1 left!

0

92

Generac 0G84420271

NUT (M5)

$

$

Currently unavailable

93

Generac 0G5744

BATTERY CHARGER
(Superseded to 10000020426)

$

$

Not available

94

Generac 0J4959

12VDC BATTERY CHARGER INPUT JACK

$59.99

$

In Stock, only 1 left!

0

95

Generac 0K97920113

CARBON CANISTER BREATHER TUBE

$7.99

$

Usually ships in 2-12 days

0

96

Generac 0K97920114

CARBON CANISTER

$98.99

$

Usually ships in 2-12 days

0

97

Generac 0K97920115

CARBON CANISTER BRACKET

$9.99

$

Usually ships in 2-12 days

0

98

Generac 0K97920116

GUIDE PLATE BRACKET

$3.99

$

Usually ships in 2-12 days

0

99

Generac 0J1962

CARBON CANISTER BRACKET

$10.99

$

Usually ships in 2-12 days

0

100

Generac 0J5207C110

SPARK ARRESTOR

$20.99

$

Usually ships in 2-12 days

0

Generac 0G5743A

TWENTY FOOT EXTENTION CORD

$425.99

$

Usually ships in 2-12 days

0
