GR 26 - Jonsered String Trimmer (1994-11) MUFFLER Parts Diagram

String Trimmer

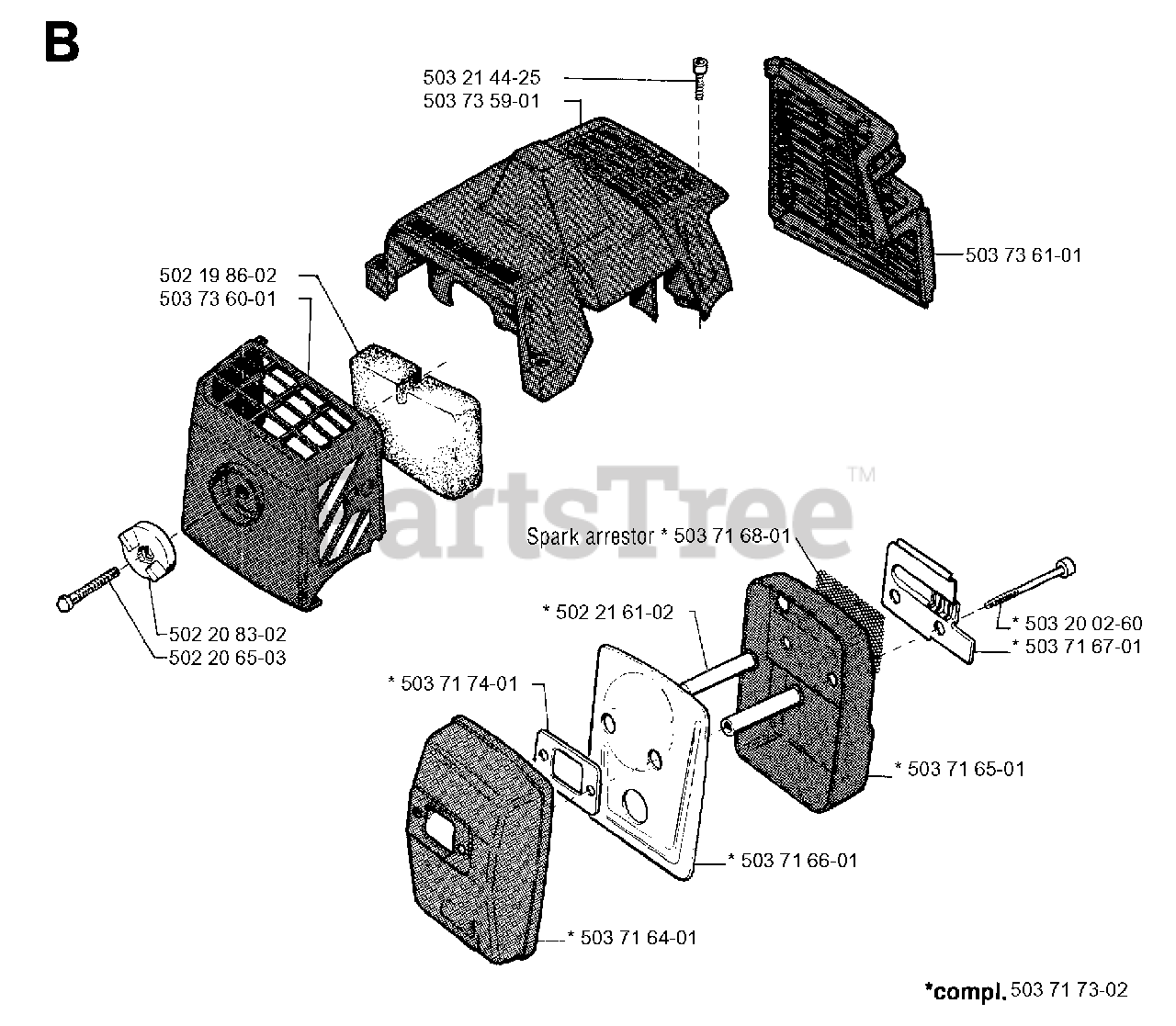

MUFFLER Parts Diagram

  • Title

5032144-25

Jonsered 503214425

SCREW

$4.99

$

Usually ships in 3-10 days

0

5037359-01

Jonsered 503735901

REPL BY 503 73 59-02
(Superseded to 503735902)

$

$

Not available

5021986-02

Jonsered 502198602

AIR FILTER

$8.99

$

In Stock, Qty 18

0

5037360-01

Jonsered 503736001

COVER

$

$

Not available

5022083-02

Jonsered 502208302

KNOB

$9.99

$

In Stock, Qty 11

0

5022065-03

Jonsered 502206503

SCREW

$3.99

$

In Stock, Qty 20+

0

5037174-01

Jonsered 503717401

MUFFLER GASKET

$

$

Not available

5037168-01

Jonsered 503716801

SPARK ARRESTOR NLA

Note: SPARK ARRESTOR

$

$

Not available

5022161-02

Jonsered 502216102

PIPE

$

$

Not available

5037164-01

Jonsered 503716401

MUFFLER FRONTHALF

$

$

Not available

5037166-01

Jonsered 503716601

DIVIDER

$

$

Not available

5037165-01

Jonsered 503716501

MUFFLER BACKHALF NLA

$

$

Not available

5037173-02

Jonsered 503717302

MUFFLER
(Superseded to 503717303)

$

$

Not available

5037167-01

Jonsered 503716701

HEAT SHIELD
(Superseded to 503905302)

$14.99

$

Usually ships in 3-10 days

0

5032002-60

Jonsered 503200260

BOLT

$5.99

$

In Stock, Qty 7

0

5037361-01

Jonsered 503736101

PROTECTOR
(Superseded to 503938501)

$

$

Not available
