GR 36 - Jonsered String Trimmer (1996-06) ACCESSORIES Parts Diagram

String Trimmer

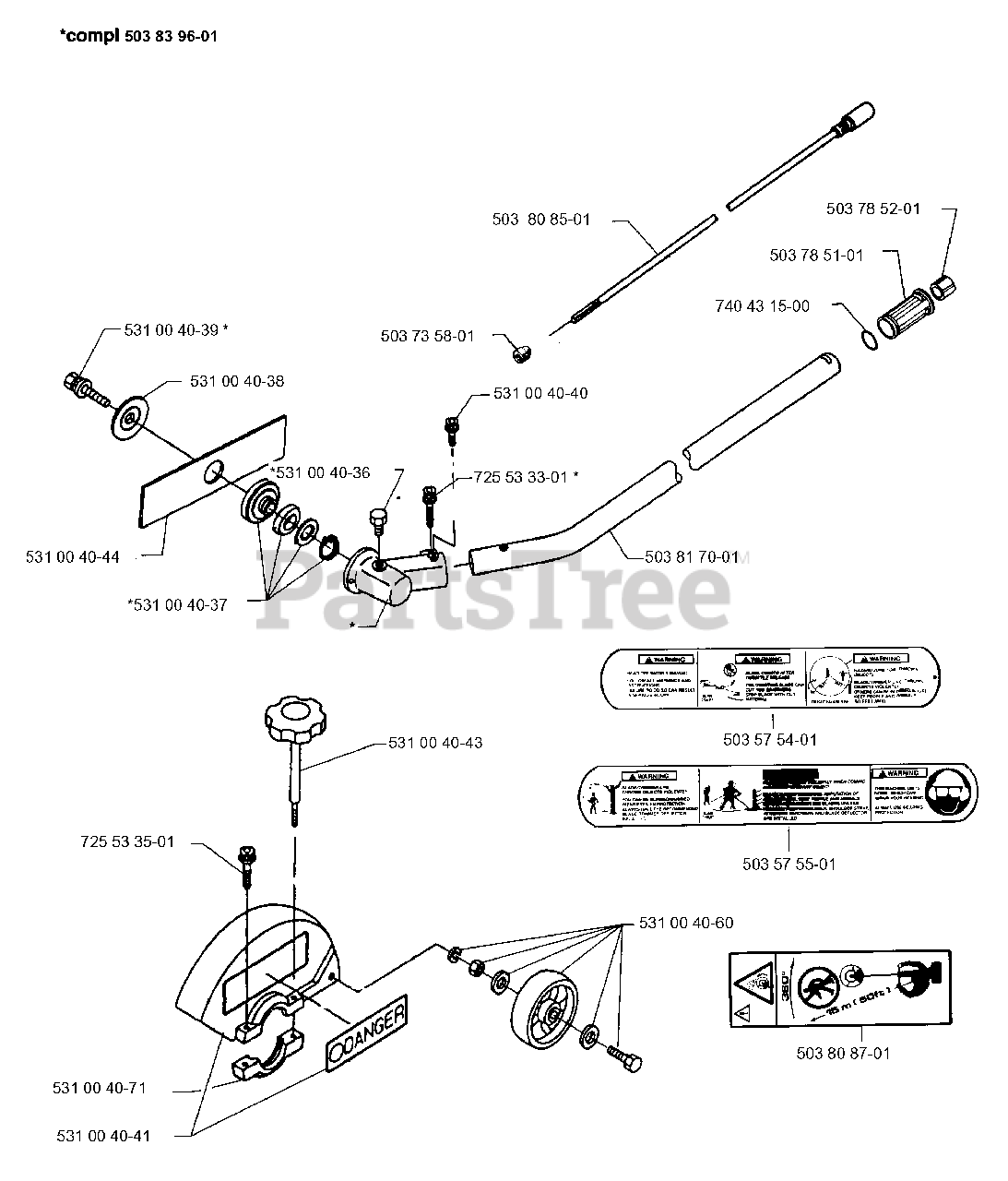

ACCESSORIES Parts Diagram

  • Title

5038396-01

Jonsered 503839601

BEVEL GEAR

$

$

Not available

5310040-39

Jonsered 531004039

SCREW

$

$

Not available

5310040-38

Jonsered 531004038

FLANGE

$

$

Not available

5310040-44

Jonsered 531004044

BLADE
(Superseded to 503848202)

$3.99

$

Usually ships in 3-10 days

0

5310040-37

Jonsered 531004037

BOSS ADAPTOR ASSY

$

$

Not available

7255335-01

Jonsered 725533501

SCREW MCS 5X30
(Superseded to 725533555)

$4.99

$

In Stock, only 1 left!

0

5310040-71

Jonsered 531004071

BRACKET

$

$

Not available

5310040-41

Jonsered 531004041

BLADE GUARD

$

$

Not available

5310040-43

Jonsered 531004043

KNOB

$

$

Not available

5310040-36

Jonsered 531004036

PLUG

$

$

Not available

5038085-01

Jonsered 503808501

DRIVE SHAFT

$112.99

$

Usually ships in 3-10 days

0

5037358-01

Jonsered 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$6.99

$

In Stock, Qty 20+

0

5310040-40

Jonsered 531004040

BOLT

$

$

Not available

7255333-01

Jonsered 725533301

SCREW

$4.99

$

Usually ships in 3-10 days

0

5310040-60

Jonsered 531004060

WHEEL

$

$

Not available

5038087-01

Jonsered 503808701

REPL BY 503 90 13-01
(Superseded to 503901301)

$

$

Not available

5035755-01

Jonsered 503575501

DECAL

$

$

Not available

5035754-01

Jonsered 503575401

DECAL

$

$

Not available

5038170-01

Jonsered 503817001

TUBE

$

$

Not available

7404315-00

Jonsered 740431500

O-RING

$

$

Not available

5037851-01

Jonsered 503785101

HOLDER

$

$

Not available

5037852-01

Jonsered 503785201

BUSHING
(Superseded to 503785202)

$13.99

$

In Stock, only 2 left!

0
