GR 41 - Jonsered String Trimmer (1995-01) STARTER Parts Diagram

String Trimmer

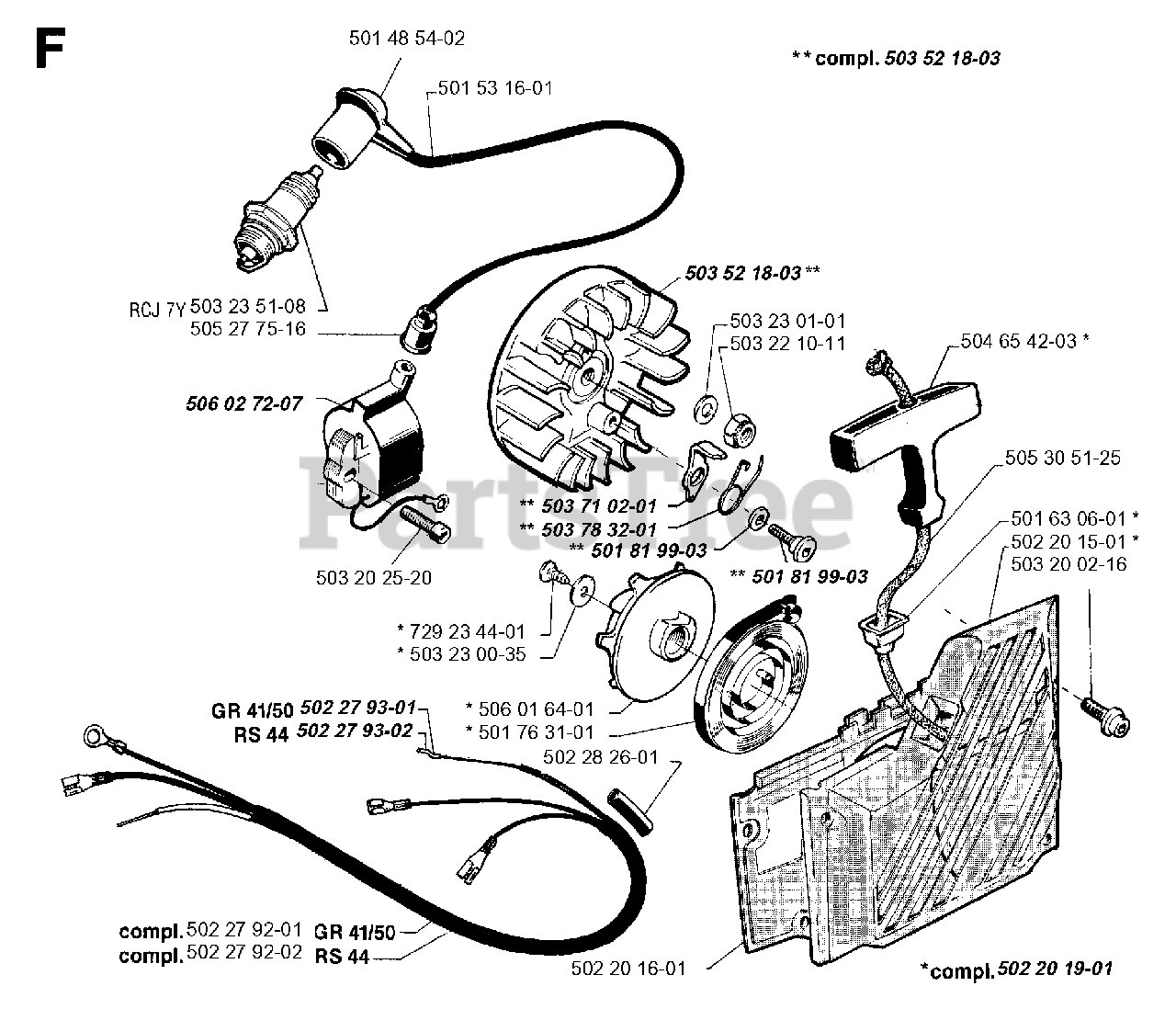

STARTER Parts Diagram

  • Title

5014854-02

Jonsered 501485402

SPARK PLUG CONN. KIT

$12.99

$

In Stock, Qty 20+

0

5015316-01

Jonsered 501531601

CABLE 13 3/8"IN

$12.99

$

In Stock, only 2 left!

0

5032351-08

Jonsered 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

Note: RCJ 7Y

$3.49

$

In Stock, Qty 20+

0

5052775-16

Jonsered 505277516

INSULATING CAP

$10.99

$

Usually ships in 3-10 days

0

5060272-07

Jonsered 506027207

IGNITION MODULE
(Superseded to 503901201)

$

$

Not available

5032025-20

Jonsered 503202520

SCREW

$6.49

$

In Stock, Qty 12

0

5022793-01

Jonsered 502279301

WIRE

Note: GR 41 /50

$

$

Not available

5022793-02

Jonsered 502279302

WIRE

Note: RS 44

$

$

Not available

5022792-01

Jonsered 502279201

HARNESS

Note: GR 41 /50

$68.99

$

Usually ships in 3-10 days

0

5022792-02

Jonsered 502279202

CABLE/HARNESS TUBE

Note: RS 44

$

$

Not available

5022016-01

Jonsered 502201601

AIR CONDUCTOR

$8.07

$

Usually ships in 3-10 days

0

5022826-01

Jonsered 502282601

TUBE

$

$

Not available

5017631-01

Jonsered 501763101

RECOIL SPRING

$17.99

$

In Stock, Qty 13

0

5060164-01

Jonsered 506016401

STARTER PULLEY
(Superseded to 537201901)

$31.99

$

In Stock, Qty 7

0

5032300-35

Jonsered 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 18

0

7292344-01

Jonsered 729234401

SCREW CSK B8X16
(Superseded to 507433459)

$2.49

$

Usually ships in 3-10 days

0

5037102-01

Jonsered 503710201

STARTER PAWL
(Superseded to 503710203)

$9.49

$

In Stock, Qty 11

0

5037832-01

Jonsered 503783201

%SPRING, STARTER CATCH
(Superseded to 529271101)

$7.49

$

In Stock, Qty 12

0

5018199-03

Jonsered 501819903

PIN, STARTER CATCH

$9.99

$

In Stock, Qty 5

0

5022019-01

Jonsered 502201901

STARTER DEVICE

$

$

Not available

5018199-03

Jonsered 501819903

PIN, STARTER CATCH

$9.99

$

In Stock, Qty 5

0

5032002-16

Jonsered 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

5022015-01

Jonsered 502201501

STARTER HOUSING

$

$

Not available

5016306-01

Jonsered 501630601

SLEEVE

$10.99

$

In Stock, only 2 left!

0

5053051-25

Jonsered 505305125

STARTER ROPE

$8.99

$

In Stock, Qty 13

0

5046542-03

Jonsered 504654203

HANDLE

$10.99

$

In Stock, Qty 6

0

5032210-11

Jonsered 503221011

NUT M8X1

$6.49

$

In Stock, only 1 left!

0

5032301-01

Jonsered 503230101

WASHER 8.4X16

$7.49

$

In Stock, only 1 left!

0

5035218-03

Jonsered 503521803

FLYWHEEL
(Superseded to 503790002)

$

$

Not available

5035218-03

Jonsered 503521803

FLYWHEEL
(Superseded to 503790002)

$

$

Not available
