Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Engine Electrical Parts Diagram

Utility Vehicle

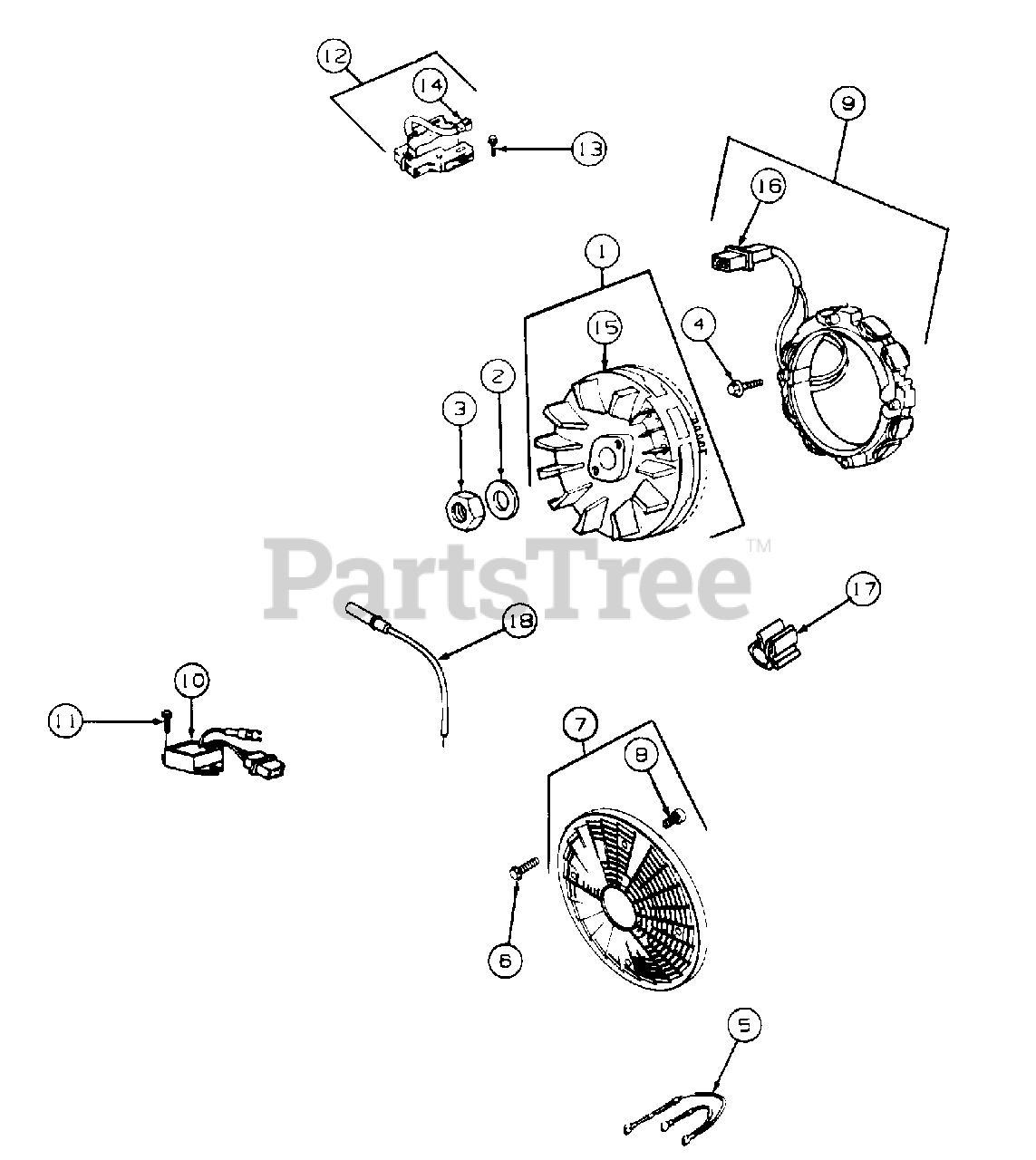

Engine Electrical Parts Diagram

  • Title

1

Cub Cadet BS-807531

Flywheel & Ring Gear

$

$

Not available

2

Cub Cadet BS-805007

Washer, Spring

$

$

Not available

3

Cub Cadet BS-805021

Nut, Hex

$

$

Not available

4

Cub Cadet BS-805407

Screw, Mounting
(Superseded to BS-692066)

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet BS-493792

Wire, Ground
(Superseded to BS-844547)

$19.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-805447

Screw, Sems
(Superseded to BS-691647)

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet BS-494439

Screen, Rotating

$49.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-805402

Spacer
(Superseded to BS-691500)

$7.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-393295

Stator, 16 Amp
(Superseded to BS-592830)

$111.99

$

In Stock, Qty 9

0

10

Cub Cadet BS-394890

Regulator
(Superseded to BS-845907)

$67.99

$

In Stock, Qty 20+

0

11

Cub Cadet BS-93343

Screw, Mounting
(Superseded to BS-692198)

$6.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-492341

Armature
(Superseded to BS-591459)

$56.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-805407

Screw, Mounting
(Superseded to BS-692066)

$3.99

$

In Stock, only 4 left!

0

14

Cub Cadet BS-493880

Terminal
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet BS-807805

Gear, Flywheel Ring

$

$

Currently unavailable

16

Cub Cadet BS-393537

Diode & Connector Assy

$

$

Not available

17

Cub Cadet BS-280470

Clip, Wire

$

$

Not available

18

Cub Cadet BS-393422

Harness, Alternator
(Superseded to BS-692306)

$18.99

$

Usually ships in 2-12 days

0
