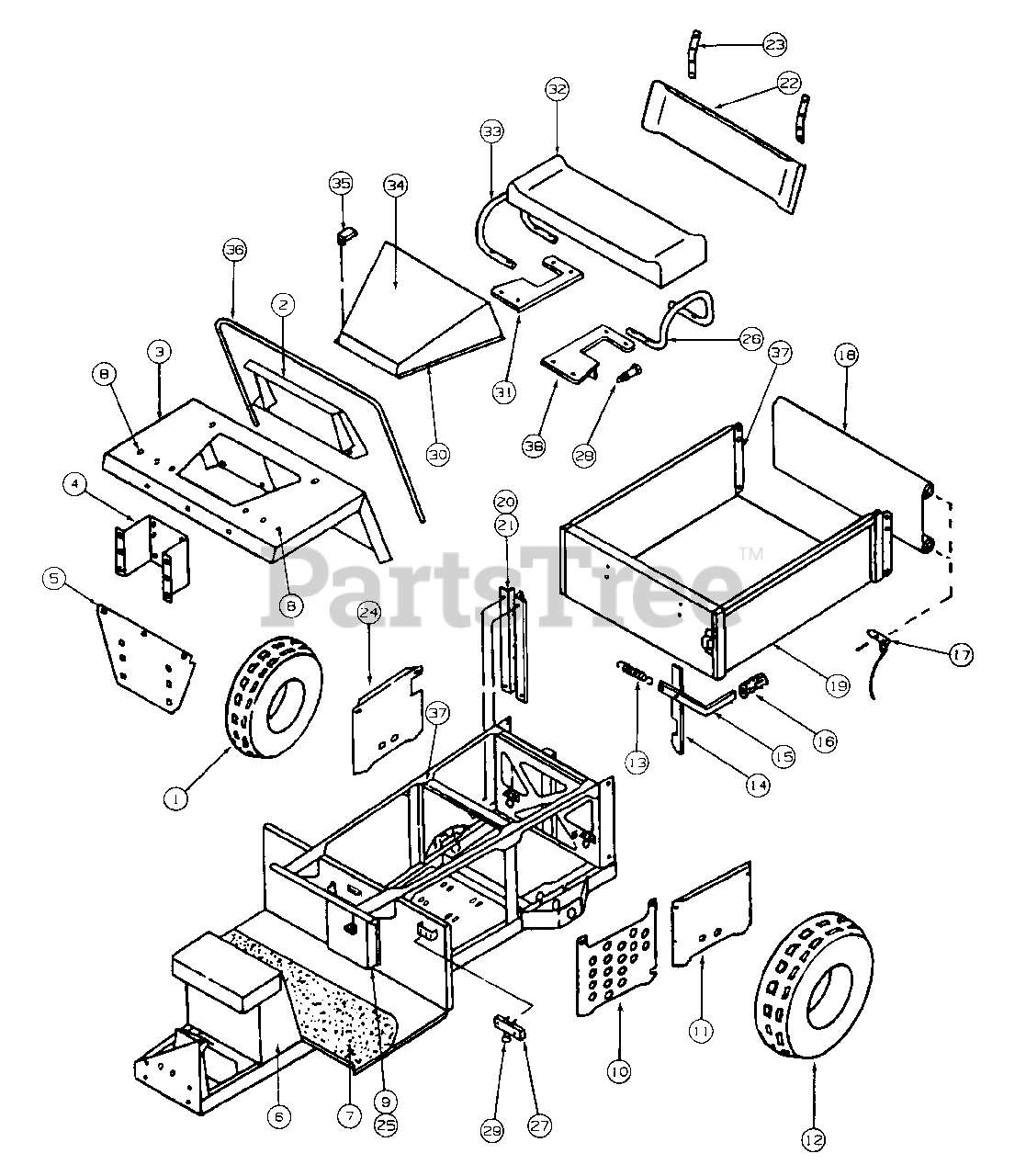

Grizzly 4016 (575-4016100) - Cub Cadet Utility Vehicle Panels And Trim Parts Diagram

Utility Vehicle

Panels And Trim Parts Diagram

  • Title

1

Cub Cadet CV-201069

Tire/Rim, Front Knob

$

$

Currently unavailable

2

Cub Cadet CV-280133

Panel, Dash

$

$

Not available

3

Cub Cadet CV-244386

Base, Front Hood

Variations

Cub Cadet CV-244386-0499

FRONT HOOD BASE - CUB BEIGE (0499)

$

$

Not available

$

$

4

Cub Cadet CV-244376

Bracket, Front Grill

$

$

Currently unavailable

5

Cub Cadet CV-244388

Grill, Front

$

$

Not available

6

Cub Cadet CV-280137

Frame Assy

$

$

Currently unavailable

7

Cub Cadet CV-013085

Mat, Floor

$

$

Currently unavailable

8

Cub Cadet CV-303019

Plug, Hole

$

$

Not available

9

Cub Cadet CV-280128

Glove Box, Vertical

$

$

Currently unavailable

10

Cub Cadet CV-246151

Panel, Center Access

$

$

Currently unavailable

11

Cub Cadet CV-246152

Panel, Left Rear Access

$

$

Currently unavailable

12

Cub Cadet CV-201070

Tire/Rim, Rear Big Knob

$

$

Currently unavailable

13

Cub Cadet CV-110038

Spring, Latch

$

$

Not available

14

Cub Cadet CV-243238

Catch, Lift Latch

$

$

Not available

15

Cub Cadet CV-244375

Arm, Dump Box Latch

$

$

Not available

16

Cub Cadet CV-208087

Grip, Flat

$

$

Not available

17

Cub Cadet CV-105047

Pin/Cable Assy, Tailgate

$

$

Not available

18

Cub Cadet CV-280135

Tailgate

$

$

Currently unavailable

19

Cub Cadet CV-280127

Dump Box

$

$

Currently unavailable

20

Cub Cadet CV-244368

Transaxle Mount, LH Frt

$

$

Currently unavailable

21

Cub Cadet CV-244367

Transaxle Mount, RH Frt

$

$

Currently unavailable

22

Cub Cadet CV-212016

Seat, Bench Back

$

$

Not available

23

Cub Cadet CV-244164

Bracket, Seat Back Mtg

$

$

Not available

24

Cub Cadet CV-246153

Panel, Right Rear Access

$

$

Currently unavailable

25

Cub Cadet CV-213212

Rivet

$

$

Currently unavailable

26

Cub Cadet CV-241214

Hand Rail, LH Seat

$

$

Not available

27

Cub Cadet CV-D22256

Latch, Seat

$

$

Currently unavailable

28

Cub Cadet CV-D22257

Bolt, Strike

$

$

Not available

29

Cub Cadet CV-D22258

Knob

$

$

Not available

30

Cub Cadet CV-013099

Foam Strip

Note: (Cut to length)

$

$

Not available

31

Cub Cadet CV-243247

Plate, RH Seat Spacer

$

$

Currently unavailable

32

Cub Cadet CV-212015

Bottom, Seat

$

$

Currently unavailable

33

Cub Cadet CV-241215

Hand Rail, RH Seat

$

$

Not available

34

Cub Cadet CV-280129

Hood

Variations

Cub Cadet CV-280129-0499

HOOD - CUB BEIGE (0499)

$

$

Not available

$

$

35

Cub Cadet CV-222186

Latch, Swell

$

$

Not available

36

Cub Cadet CV-241256

Hand Rail

$

$

Not available

37

Cub Cadet CV-013004

Tape, Foam

Note: (Cut to length)

$

$

Not available

38

Cub Cadet CV-280139

Plate, Lh Seat Spacer

$

$

Currently unavailable

$

$

Not available
