Grizzly 50 - Dixon 50" Grizzly Zero-Turn Mower (2005) ENGINE (KOHLER 25HP) Parts Diagram

50" Grizzly Zero-Turn Mower

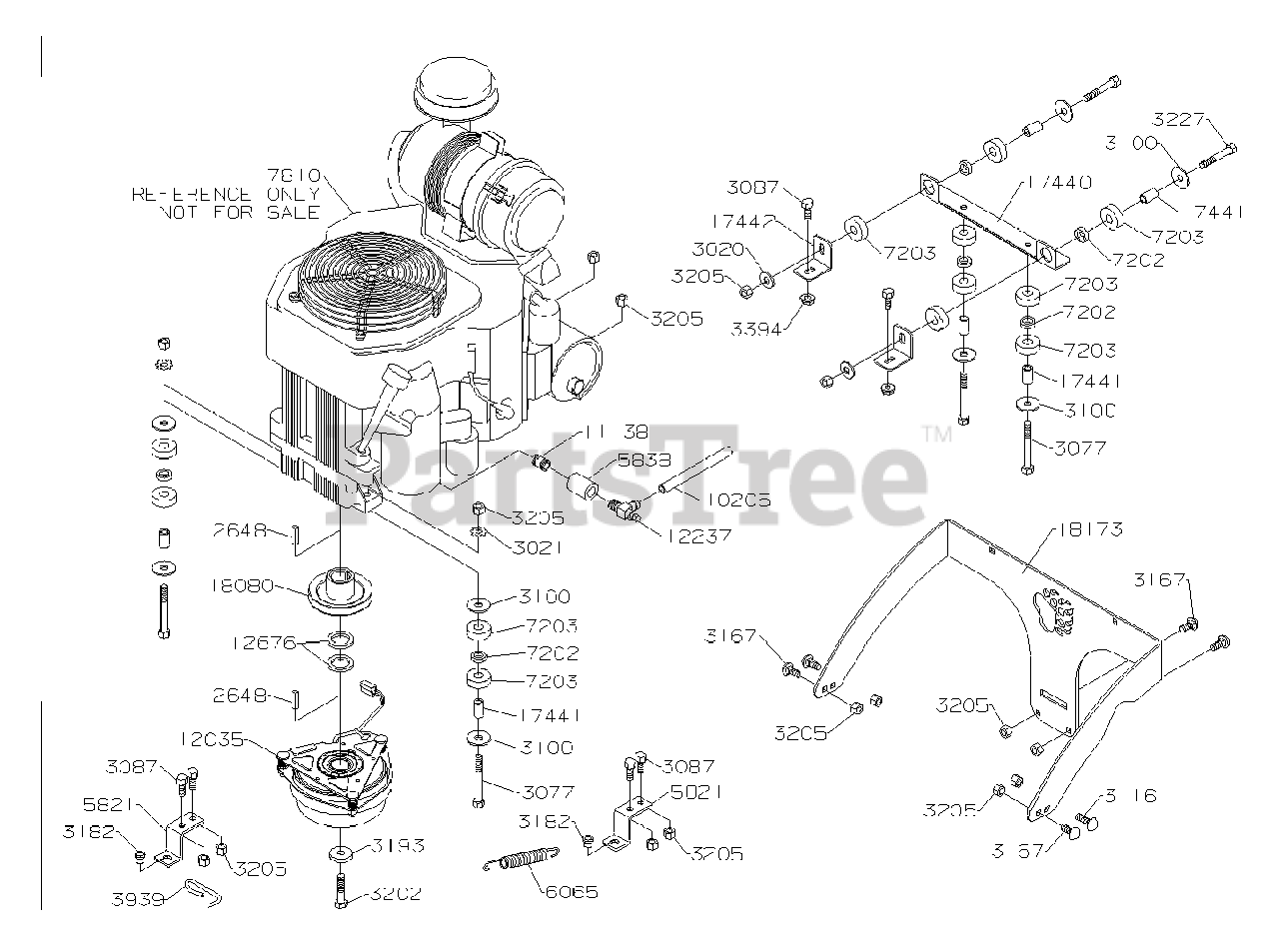

ENGINE (KOHLER 25HP) Parts Diagram

  • Title
2648

2648

KEY - 1/4 X .88

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3202

3202

7/16-20 HHB GR5

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3939

3939

CLUTCH ANCHOR

$

$

Not available

5821

5821

ANCHOR BRACKET

$

$

Not available

5838

5838

FEMALE COUPLING

$

$

Not available

6065

6065

SERPENTINE IDLER SPR

$

$

Not available

7202

7202

ISO-MOUNT INSERT

$

$

Not available

7203

7203

ISO-MOUNT BUSHING

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

11138

11138

NIPPLE

$

$

Not available

12035

12035

ELECTRIC CLUTCH

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12676

12676

BUSHING

$

$

Not available

17440

17440

ISO MT. PLATE

$

$

Not available

17441

17441

ISO MT. BUSHING

$

$

Not available

17442

17442

ISO MT. BRKT.

$

$

Not available

17810

17810

$

$

Not available

18080

18080

ENGINE PULLEY

$

$

Not available

18173

18173

REAR GUARD

$

$

Not available
