Grizzly 60 (968999590) - Dixon 60" Grizzly Zero-Turn Mower, 27hp Kohler (2007) DECK 60" Parts Diagram

60" Grizzly Zero-Turn Mower, 27hp Kohler

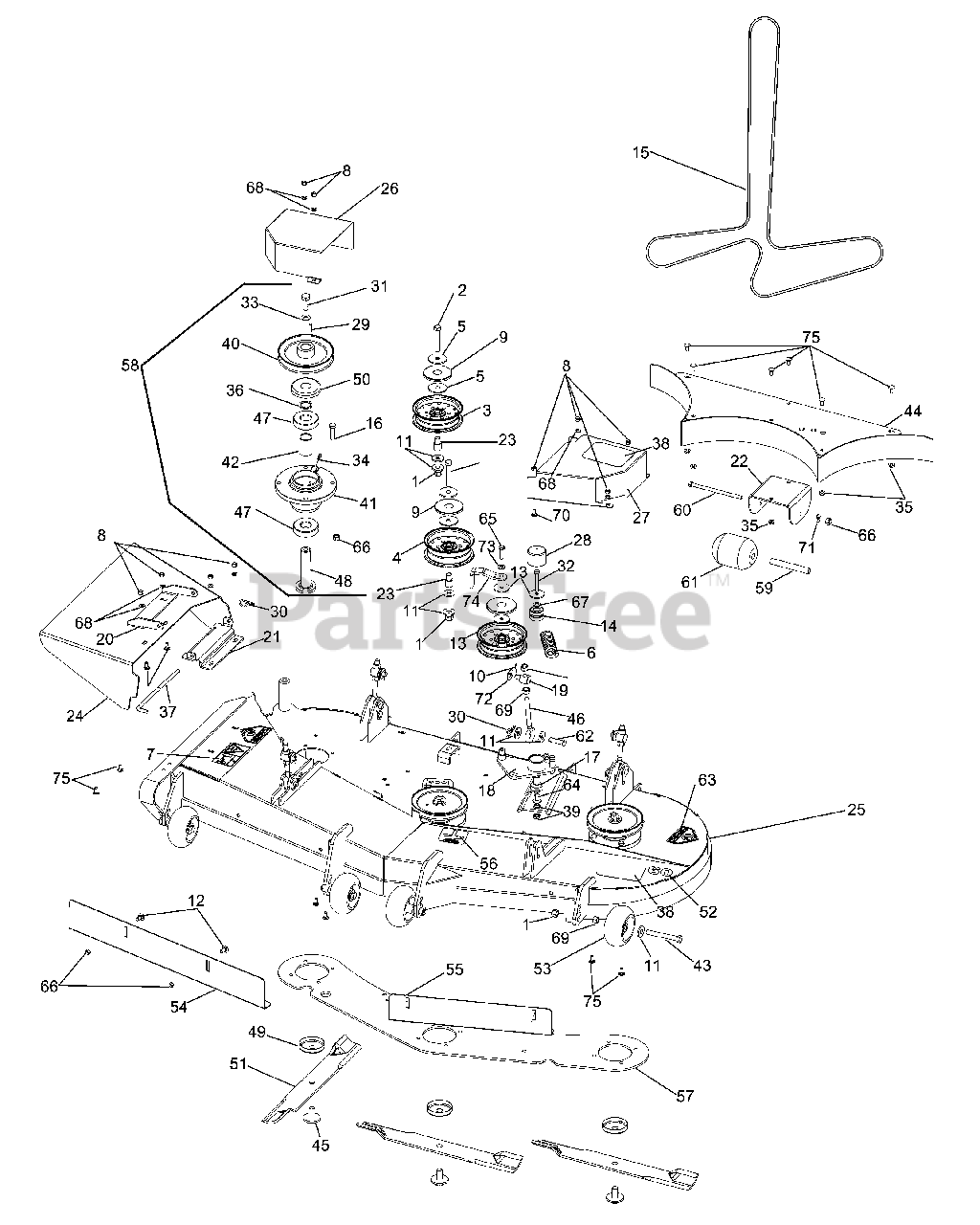

DECK 60" Parts Diagram

  • Title

1

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

2

Dixon 539101572

SCREW, 1/2C X 3 HEX CAP

$4.99

$

In Stock, Qty 14

0

3

Dixon 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 13

0

4

Dixon 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 8

0

5

Dixon 539104959

ISOLATOR WASHER

$15.99

$

In Stock, only 1 left!

0

6

Dixon 539105192

DECK SPRING

$

$

Not available

7

Dixon 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

8

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

9

Dixon 539108450

TOP DUST CAP

$4.99

$

Usually ships in 3-10 days

0

10

Dixon 539109246

PIN COTTER 1/8 X 1 ZD

$3.99

$

Usually ships in 3-10 days

0

11

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

12

Dixon 539111785

RHSNB 3/8-16 X 3/4 GR5 ZD

$

$

Not available

13

Dixon 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539112050

BEARING, BALL

$7.49

$

In Stock, Qty 20+

0

15

Dixon 539112529

BELT, DECK 52 COMBI/60 GRIZZY

$133.99

$

In Stock, only 1 left!

0

16

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

17

Dixon 539112920

BEARING PIVOT SPACER

$

$

Not available

18

Dixon 539112921

ARM, IDLER - WELDMENT

$121.99

$

Usually ships in 3-10 days

0

19

Dixon 539114405

SWIVEL

$

$

Not available

20

Dixon 539114423

HINGE, DISCHARGE CHUTE, BLUE

$27.99

$

Usually ships in 3-10 days

0

21

Dixon 539114554

SUPT - CHUTE HINGE PAINTED

$54.99

$

Usually ships in 3-10 days

0

22

Dixon 539114580

REAR CENTER ROLLER BKT 60 BLK

$40.99

$

Usually ships in 3-10 days

0

23

Dixon 539114582

SPACER - IDLER

$24.99

$

Usually ships in 3-10 days

0

24

Dixon 539114618

CHUTE - 60" PAINTED

$

$

Not available

25

Dixon 539114645

DECK W/DECAL 60" GRIZZLY

$1794.99

$

Usually ships in 3-10 days

0

26

Dixon 539114653

PULLEY GUARD RH 60 PAINTED

$72.99

$

Usually ships in 3-10 days

0

27

Dixon 539114655

PULLEY GUARD LH 60 PAINTED

$103.99

$

Usually ships in 3-10 days

0

28

Dixon 539114823

CAP, VINYL

$3.99

$

In Stock, only 2 left!

0

29

Dixon 539115387

KEY - 1/4 X .88

$

$

Not available

30

Dixon 539115501

PIN, COTTER 1 3/4

$

$

Not available

31

Dixon 539115511

1/2-20 UNF X 1 1/4 HHBLT

$4.99

$

Usually ships in 3-10 days

0

32

Dixon 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

33

Dixon 539115636

WASHER .525 X 1.375 X .25

$9.99

$

In Stock, only 1 left!

0

34

Dixon 539115638

ZERK, 3/16, DRIVE IN

$4.99

$

In Stock, Qty 13

0

35

Dixon 539115674

5/16-18 FLANGED L-NUT

$3.99

$

Usually ships in 3-10 days

0

36

Dixon 539115753

SPACER .25

$7.49

$

Usually ships in 3-10 days

0

37

Dixon 539116225

DEFLECTOR PIN

$

$

Not available

38

Dixon 539116696

REAR FLOOR PAD-LH

$6.49

$

Usually ships in 3-10 days

0

39

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

40

Dixon 539117926

PULLEY 6.45 METRIC

$103.99

$

Usually ships in 3-10 days

0

41

Dixon 539117970

DECK HUB MACHINED

$

$

Not available

42

Dixon 539117971

SPACER

$9.99

$

Usually ships in 3-10 days

0

43

Dixon 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.49

$

In Stock, Qty 20+

0

44

Dixon 539118944

W-BAFFLE WLDT.

$339.99

$

Usually ships in 3-10 days

0

45

Dixon 539119007

BLADE BOLT/WASHER

$8.99

$

In Stock, Qty 18

0

46

Dixon 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0

47

Dixon 539119260

BEARING - 6305 - 2RS

$

$

Not available

48

Dixon 539119262

SHAFT SHORT

$

$

Not available

49

Dixon 539119266

TRASH GUARD

$

$

Not available

50

Dixon 539119811

TRASH GUARD

$18.99

$

In Stock, only 1 left!

0

51

Dixon 539119840

BLD 60" HI LIFT FUSION

$42.99

$

In Stock, only 1 left!

0

52

Dixon 539119896

DECAL, DECK 60"

$9.99

$

Usually ships in 3-10 days

0

53

Dixon 539121433

GUAGE WHEEL
(Superseded to 539107610)

$13.99

$

In Stock, Qty 20+

0

54

Dixon 539122119

BLOW BY BAFFLE

$

$

Not available

55

Dixon 539122120

BLOW BY BAFFLE LH 60

$

$

Not available

56

Dixon 539122249

DECAL, BELT ROUTING (18656)

$4.99

$

Usually ships in 3-10 days

0

57

Dixon 539122282

HUB STIFFENER PLATE

$424.99

$

Usually ships in 3-10 days

0

58

Dixon 539122550

SPINDLE ASSEMBLY

$

$

Not available

59

Dixon 539122574

BUSHING

$24.99

$

Usually ships in 3-10 days

0

60

Dixon 539122625

3/8-16 X 6-1/2 HHB GR8

$4.99

$

Usually ships in 3-10 days

0

61

Dixon 539122633

ROLLER 3-3/4 DIA. X 4-1

$

$

Not available

62

Dixon 539122729

CLEVIS PIN 1/2X1-3/4LG

$

$

Not available

63

Dixon 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

64

Dixon 539990563

HCS 3/8C X 1

$1.49

$

Usually ships in 3-10 days

0

65

Dixon 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

Usually ships in 3-10 days

0

66

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

67

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

68

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

69

Dixon 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 16

0

70

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

71

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

72

Dixon 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

73

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

74

Dixon 539114981

GUIDE, BELT

$

$

Not available

75

Dixon 539107271

RHSSNB 5/16C X 1.0

$3.99

$

In Stock, only 2 left!

0
