Grizzly SE 6029FX - Dixon 60" Grizzly Zero-Turn Mower MOWER LIFT / DECK LIFT Parts Diagram

60" Grizzly Zero-Turn Mower

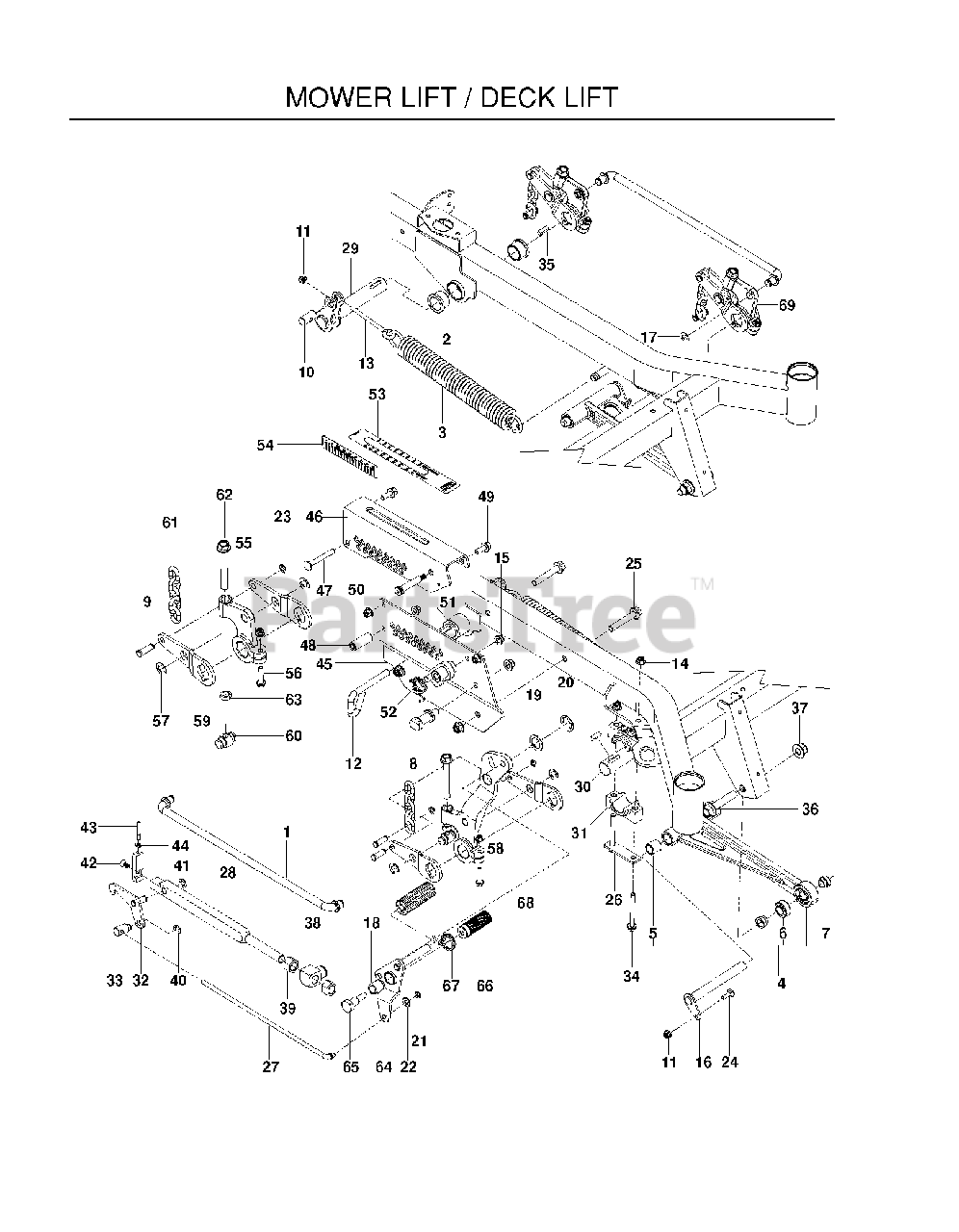

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

510 08 98-01

$

$

Not available

2

510 08 94-01

$

$

Not available

3

510 02 92-01

$

$

Not available

4

510 10 65-01

Note: . 5 6 7

$

$

Not available

5

510 08 92-01

$

$

Not available

6

510 08 38-01

$

$

Not available

7

510 36 25-01

$

$

Not available

8

510 40 67-01

$

$

Not available

9

510 09 01-01

$

$

Not available

10

510 41 23-01

$

$

Not available

11

539 11 28-99

$

$

Not available

12

510 01 65-01

$

$

Not available

13

539 12 09-93

$

$

Not available

14

521 99 65-01

$

$

Not available

15

521 99 11-01

$

$

Not available

16

515 98 82-01

$

$

Not available

17

539 10 50-69

$

$

Not available

18

510 08 92-01

$

$

Not available

19

539 91 65-61

$

$

Not available

20

539 91 27-30

$

$

Not available

21

539 99 08-70

$

$

Not available

22

539 99 01-22

$

$

Not available

23

522 70 52-01

$

$

Not available

24

539 99 02-08

$

$

Not available

25

525 82 89-01

$

$

Not available

26

525 82 22-01

$

$

Not available

27

510 40 76-01

$

$

Not available

28

510 40 63-01

$

$

Not available

29

510 41 07-03

Note: REAR

$

$

Not available

30

510 40 96-02

Note: FRONT

$

$

Not available

31

510 02 39-02

$

$

Not available

32

510 40 72-01

$

$

Not available

33

510 40 75-01

$

$

Not available

34

525 82 21-01

$

$

Not available

35

525 82 25-01

$

$

Not available

36

525 82 90-01

$

$

Not available

37

525 82 91-01

$

$

Not available

38

510 40 64-01

$

$

Not available

39

539 10 86-77

$

$

Not available

40

539 10 19-49

$

$

Not available

41

510 40 65-01

$

$

Not available

42

522 70 56-01

$

$

Not available

43

510 40 66-01

$

$

Not available

44

539 99 11-12

$

$

Not available

45

510 40 85-03

Note: INNER

$

$

Not available

46

510 40 86-03

Note: OUTER

$

$

Not available

47

539 12 27-28

$

$

Not available

48

510 40 84-01

$

$

Not available

49

525 61 28-01

$

$

Not available

50

516 03 55-01

$

$

Not available

51

510 40 68-01

$

$

Not available

52

510 37 66-01

$

$

Not available

53

516 03 81-01

$

$

Not available

54

525 34 97-01

$

$

Not available

55

510 02 25-01

$

$

Not available

56

525 46 54-01

$

$

Not available

57

539 10 24-54

$

$

Not available

58

510 02 25-02

$

$

Not available

59

510 41 00-02

$

$

Not available

60

510 02 36-01

$

$

Not available

61

539 10 26-41

$

$

Not available

62

525 46 57-01

$

$

Not available

63

539 99 06-25

$

$

Not available

64

510 40 78-01

$

$

Not available

65

510 40 82-01

$

$

Not available

66

510 08 95-01

$

$

Not available

67

510 37 67-01

$

$

Not available

68

510 40 83-01

$

$

Not available

69

525 46 55-01

$

$

Not available

525 46 55-02

Note: NOT SHOWN

$

$

Not available
